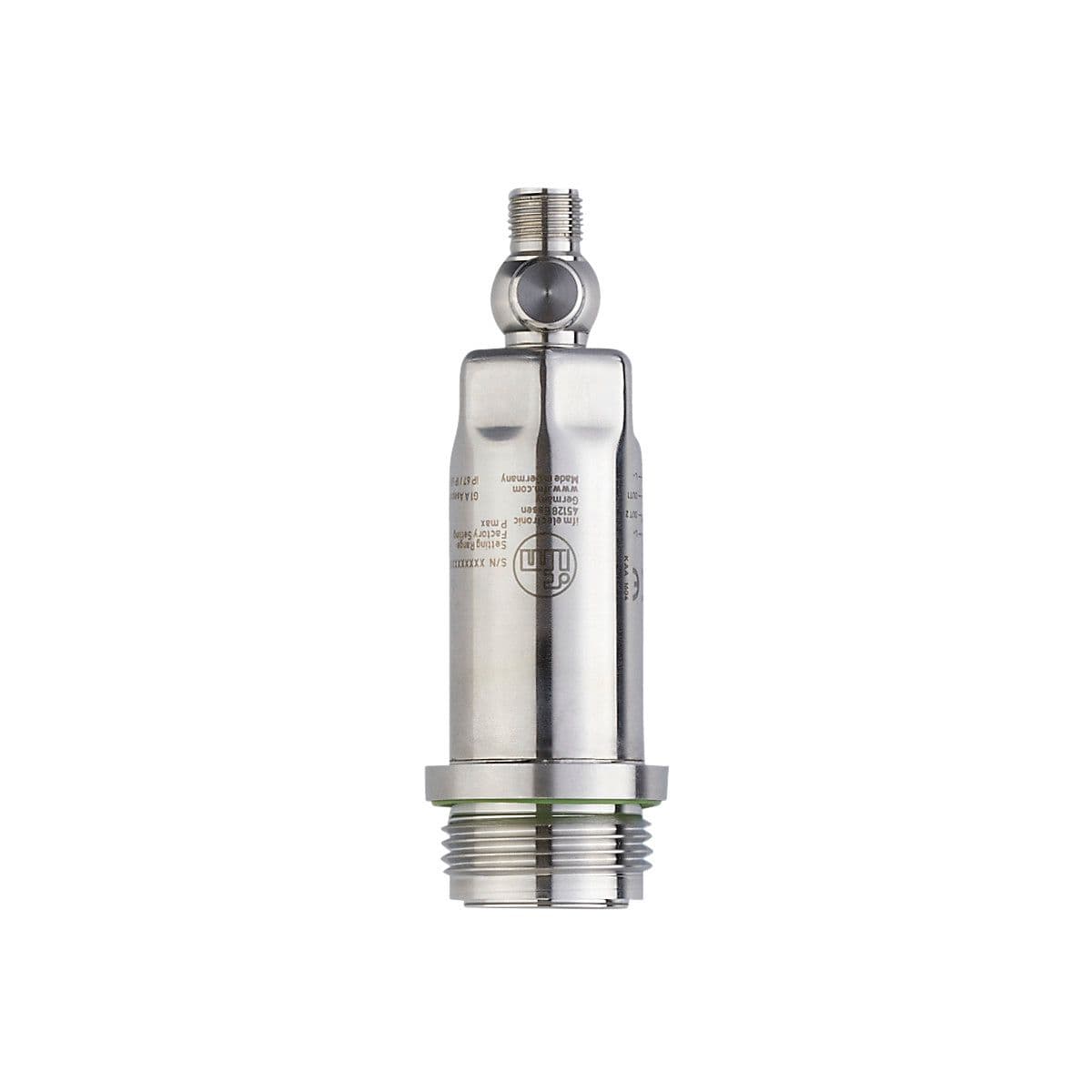

PM1708 ifm Electronic Electronic Components

Product Details

• Measuring element
  ceramic-capacitive pressure measuring cell
• Vacuum resistance [mbar]
  -1000
• Reverse polarity protection
  yes
• Analog current output [mA]
  4...20; (scalable)
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Current consumption [mA]
  < 45
• Output signal
  analog signal; IO-Link; (configurable)
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Measuring range
  -0.0125...0.25 bar -12.5...250 mbar -0.182...3.626 psi -1.25...25 kPa
• Operating voltage [V]
  18...30 DC
• Number of analog outputs
  1
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Protection class
  III
• No dead space
  yes
• Power-on delay time [s]
  0.5
• Short-circuit proof
  yes
• Temperature monitoring
  no
• Application
  flush mountable for the food and beverage industry
• Pressure rating
  6000 mbar 84 psi 600 kPa
• Integrated watchdog
  yes
System
gold-plated contacts
Type of pressure
relative pressure
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of inputs and outputs
Number of analog outputs: 1
Total number of outputs
2
Overload protection
yes
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...125; (150 max. 1h)
MAWP (for applications according to CRN) [bar]
10
