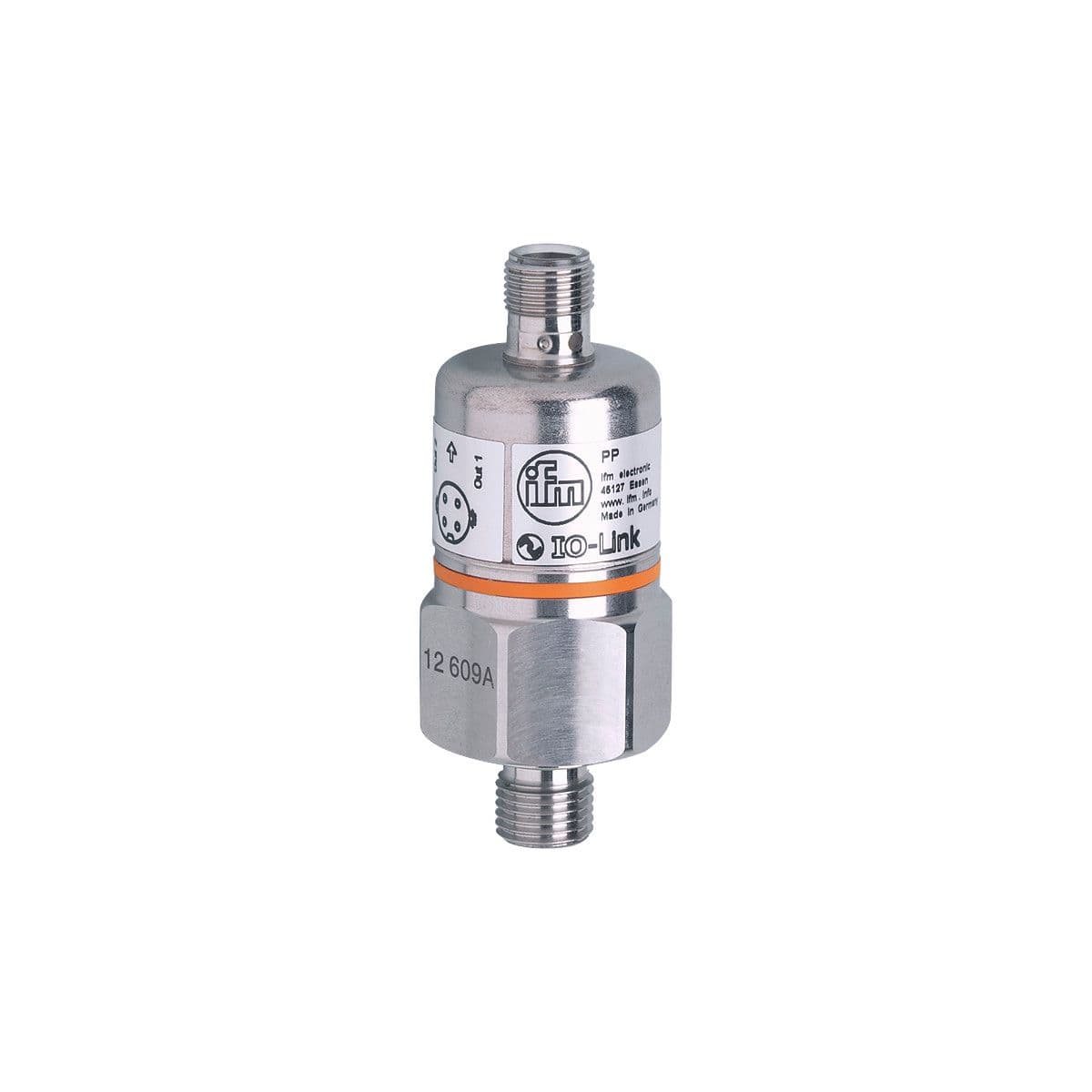

PP7551 ifm Electronic Electronic Components
Part#:PP7551
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure switch with ceramic measuring cell, Robust design for use in harsh industrial environments, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...250 bar 0...3625 psi 0...25 MPa, Process connection: threaded connection G
Product Details
- Overload protection yes
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Switching frequency DC [Hz] 170
- Output function normally open / closed; (configurable)
- Number of digital outputs 2
- Electrical design PNP
- Permanent current rating of switching output DC [mA] 250
- Max. voltage drop switching output DC [V] 2
- Power-on delay time [s] 0.3
- Reverse polarity protection yes
- Protection class III
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2
- Current consumption [mA] < 45
- Type of pressure relative pressure
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 9.6...36 DC; (communication mode: 18...32)
- Measuring range 0...250 bar 0...3625 psi 0...25 MPa
- Min. bursting pressure 850 bar 12300 psi 85 MPa
- Pressure rating 400 bar 5800 psi 40 Mpa
- Medium temperature [°C] -25...90
- Media liquids and gases
- Conditionally suitable for use in gases at pressures > 25 bar only on request
- Application for industrial applications
- Output signal switching signal; IO-Link; (configurable)
- Process connection threaded connection G 1/4 external thread Internal thread:M5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
