PP7552 ifm Electronic Electronic Components
Part#:PP7552
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

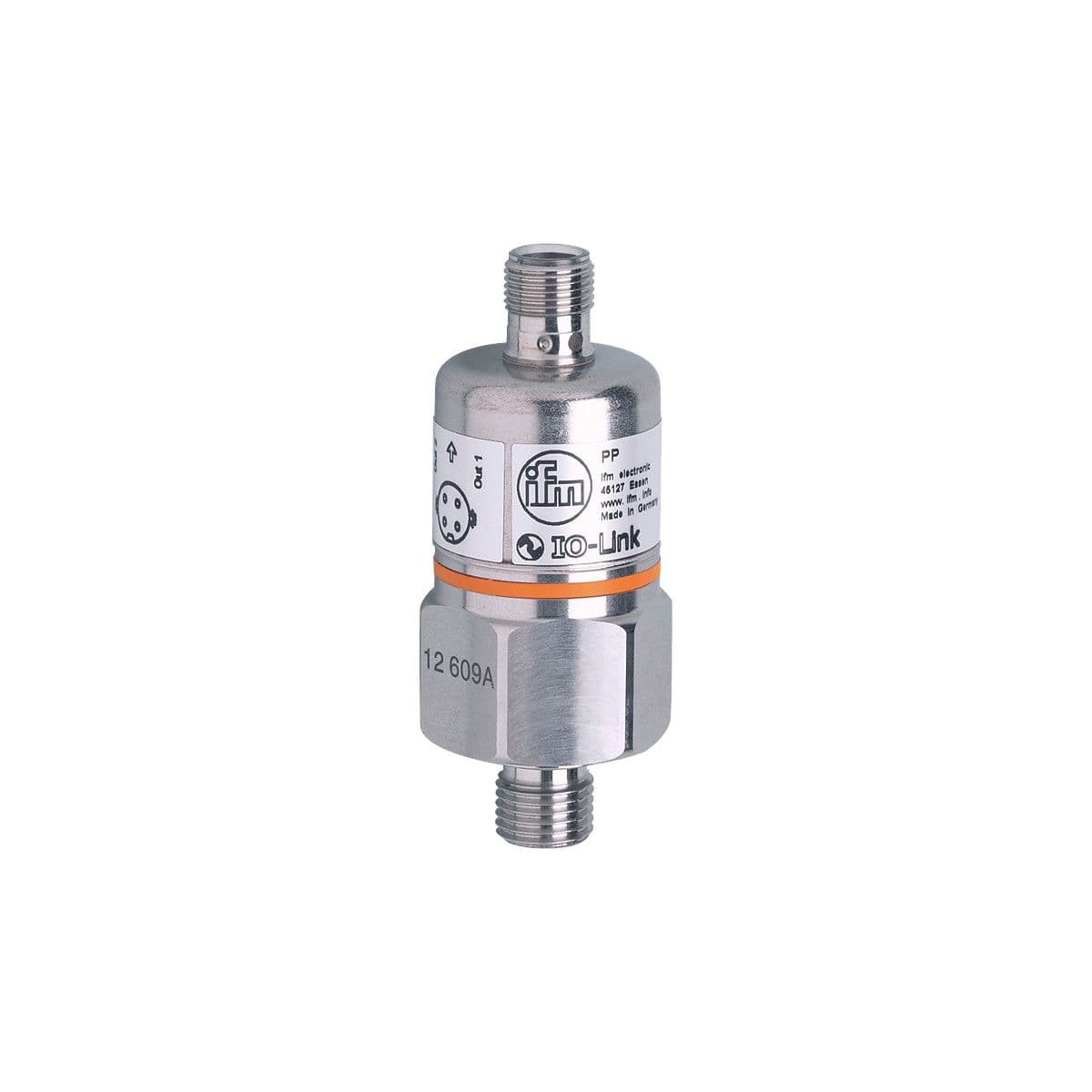

Pressure switch with ceramic measuring cell, Robust design for use in harsh industrial environments, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...100 bar 0...1450 psi 0...10 MPa, Process connection: threaded connection G
Product Details
- Number of digital outputs 2
- Switching frequency DC [Hz] 170
- Output function normally open / closed; (configurable)
- Overload protection yes
- Permanent current rating of switching output DC [mA] 250
- Max. voltage drop switching output DC [V] 2
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Electrical design PNP
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2
- Power-on delay time [s] 0.3
- Current consumption [mA] < 45
- Protection class III
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 9.6...36 DC; (communication mode: 18...32)
- Reverse polarity protection yes
- Measuring range 0...100 bar 0...1450 psi 0...10 MPa
- Medium temperature [°C] -25...90
- Pressure rating 300 bar 4350 psi 30 Mpa
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Conditionally suitable for use in gases at pressures > 25 bar only on request
- Application for industrial applications
- Type of pressure relative pressure
- Media liquids and gases
- Min. bursting pressure 650 bar 9400 psi 65 MPa
- Output signal switching signal; IO-Link; (configurable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
