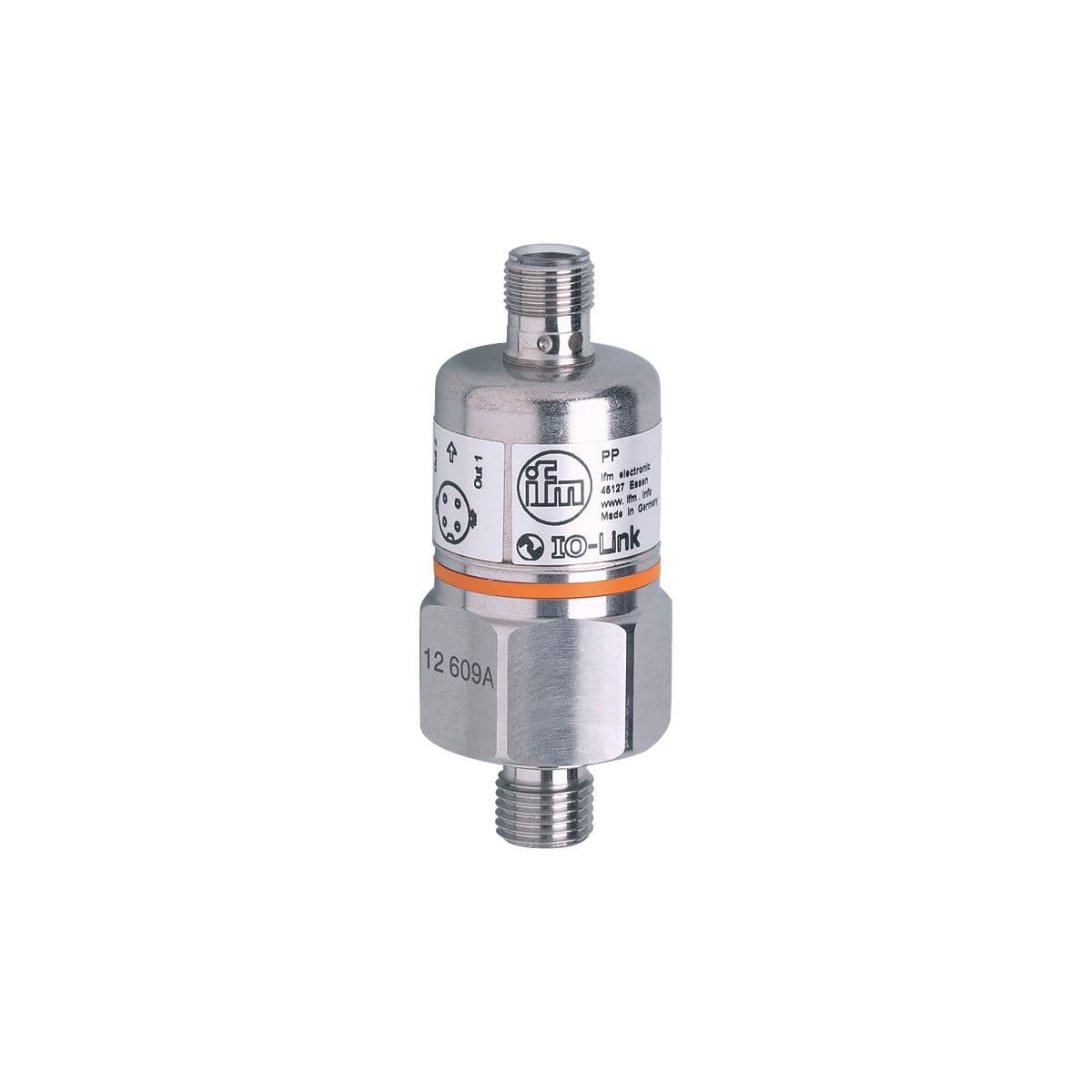

PP7554 ifm Electronic Electronic Components

Name: PP7554
Brand: ifm Electronic

Part#:PP7554

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Pressure switch with ceramic measuring cell, Robust design for use in harsh industrial environments, Output signal: switching signal; IO-Link; (configurable), Measuring range: -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, Process connection: t

Product Details

Type of pressure
relative pressure; vacuum
Number of inputs and outputs
Number of digital outputs: 2
Output signal
switching signal; IO-Link; (configurable)
Type of short-circuit protection
yes (non-latching)
Min. bursting pressure
150 bar 2175 psi 15 MPa
Reverse polarity protection
yes
Switching frequency DC [Hz]
170
Medium temperature [°C]
-25...90
Total number of outputs
2
Short-circuit protection
yes
Application
for industrial applications
Current consumption [mA]
< 45
Number of digital outputs
2
Measuring range
-1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
Min. insulation resistance [MΩ]
100; (500 V DC)
Output function
normally open / closed; (configurable)
Media
liquids and gases
Protection class
III
Electrical design
PNP
Overload protection
yes

Pressure rating

75 bar 1087 psi 7.5 Mpa

Power-on delay time [s]

0.3

Max. voltage drop switching output DC [V]

Process connection

threaded connection G 1/4 external thread Internal thread:M5

Operating voltage [V]

9.6...36 DC; (communication mode: 18...32)

Permanent current rating of switching output DC [mA]

250

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
