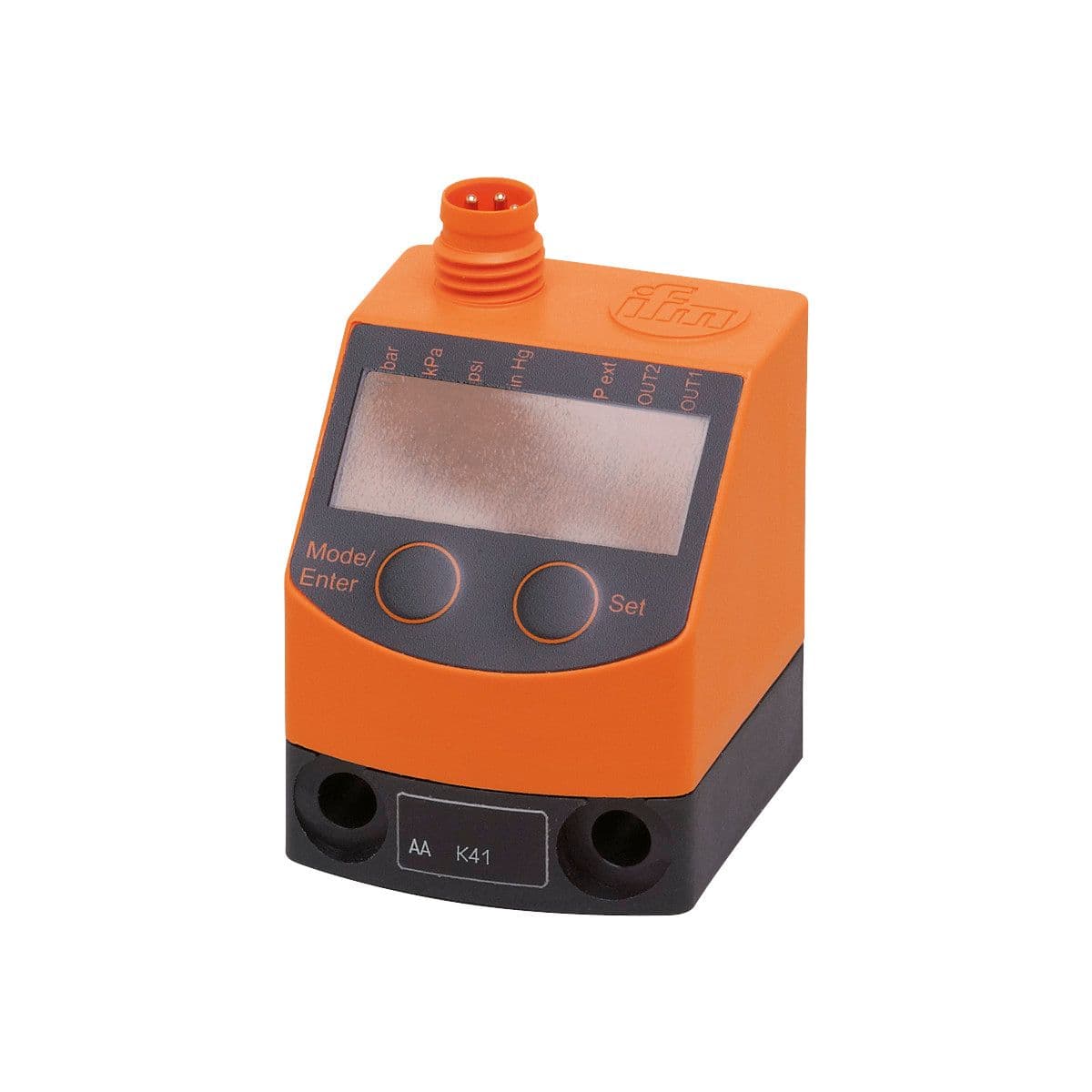

PQ0809 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Media
  compressed air
• Current consumption [mA]
  < 50
• Pressure rating [bar]
  20
• Total number of outputs
  2
• Conditionally suitable for
  other media on request
• Power-on delay time [s]
  0.3
• Type of short-circuit protection
  yes (non-latching)
• Operating voltage [V]
  18...32 DC; (according to EN 50178 SELV/PELV)
• Measuring range
  -1...1 bar -1000...1000 mbar
• Reverse polarity protection
  yes
• Number of inputs and outputs
  Number of digital outputs: 2
• Output function
  normally open / closed; (configurable)
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  NPN
• Short-circuit protection
  yes
• Application
  for industrial applications
• Overvoltage protection
  yes; (< 40 V)
• Permanent current rating of switching output DC [mA]
  100
• Protection class
  III
Max. voltage drop switching output DC [V]
2
Type of pressure
relative pressure; vacuum
Number of digital outputs
2
Medium temperature [°C]
0...60
Switching frequency DC [Hz]
< 200
Min. bursting pressure [bar]
30
Process connection
threaded connection G 1/8 Internal thread
Output signal
switching signal
Integrated watchdog
yes
