PQ0834 ifm Electronic Electronic Components
Part#:PQ0834
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

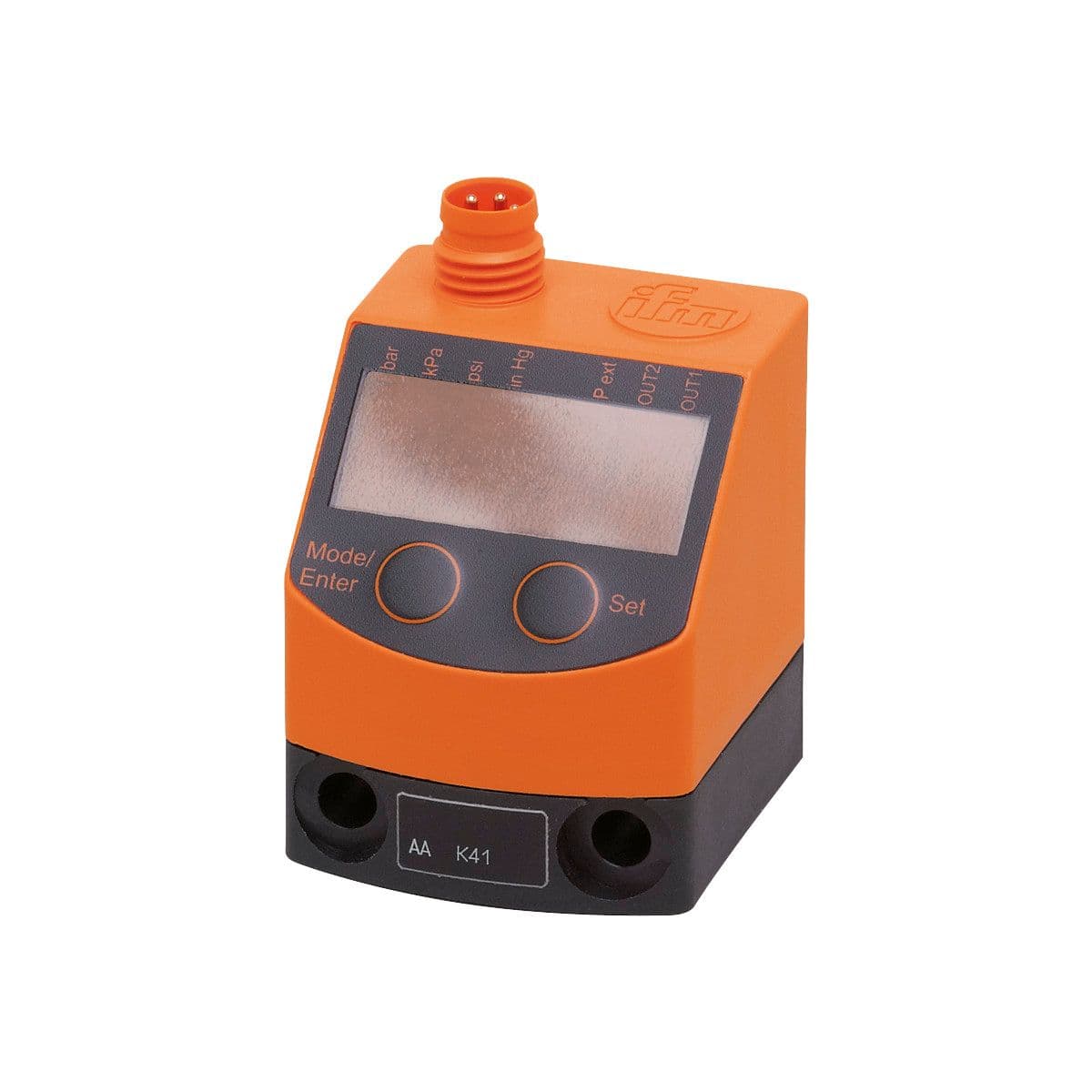

Pressure sensor for pneumatics, Reliable monitoring of the system pressure in pneumatics and in compressed air systems, Output signal: switching signal, Measuring range [bar]: -1...10, Process connection: threaded connection G 1/8 Internal thread, System:
Product Details
- Application for industrial applications
- Pressure rating [bar] 20
- Total number of outputs 2
- Min. bursting pressure [bar] 30
- Output function normally open / closed; (configurable)
- Type of short-circuit protection yes (non-latching)
- Medium temperature [°C] 0...60
- Overvoltage protection yes; (< 40 V)
- Number of inputs and outputs Number of digital outputs: 2
- Media compressed air
- Operating voltage [V] 18...32 DC; (according to EN 50178 SELV/PELV)
- System gold-plated contacts
- Power-on delay time [s] 0.3
- Permanent current rating of switching output DC [mA] 100
- Process connection threaded connection G 1/8 Internal thread
- Type of pressure relative pressure; vacuum
- Reverse polarity protection yes
- Switching frequency DC [Hz] < 200
- Conditionally suitable for other media on request
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Max. voltage drop switching output DC [V] 2
- Measuring range [bar] -1...10
- Protection class III
- Integrated watchdog yes
- Electrical design NPN
- Current consumption [mA] < 50
- Output signal switching signal
- Number of digital outputs 2
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
