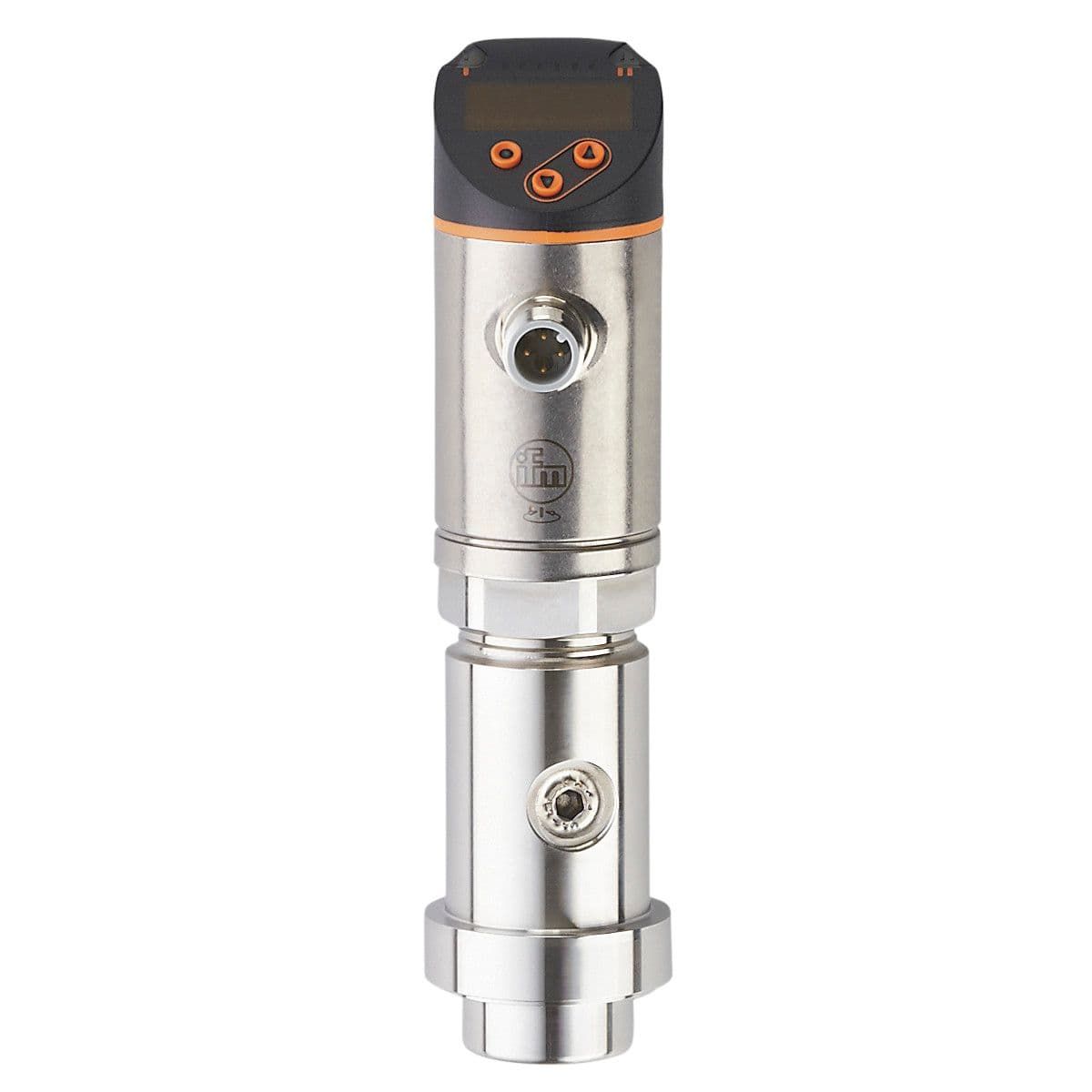

PY9001 ifm Electronic Electronic Components

Product Details

• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Number of digital outputs
  2
• Process connection
  homogenizer connection
• Type of pressure
  relative pressure
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Application
  flush mountable for the food and beverage industry
• Pressure rating
  500 bar 7250 psi 50 Mpa
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Min. bursting pressure
  1000 bar 14500 psi 100 MPa
• Power-on delay time [s]
  0.3
• Electrical design
  PNP/NPN
• Max. load [Ω]
  500
• Measuring element
  diaphragm seal
• Current consumption [mA]
  < 35
Max. voltage drop switching output DC [V]
2
Analog voltage output [V]
0...10; (scalable 1:5)
Media
liquids and gases
Protection class
III
Switching frequency DC [Hz]
< 500
Short-circuit protection
yes
Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Vacuum resistance [mbar]
-1000
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Medium temperature [°C]
5...90; (< 1 h: 145)
Min. load resistance [Ω]
2000
Reverse polarity protection
yes
Type of short-circuit protection
yes (non-latching)
Permanent current rating of switching output DC [mA]
250
Analog current output [mA]
4...20; (scalable 1:5)
