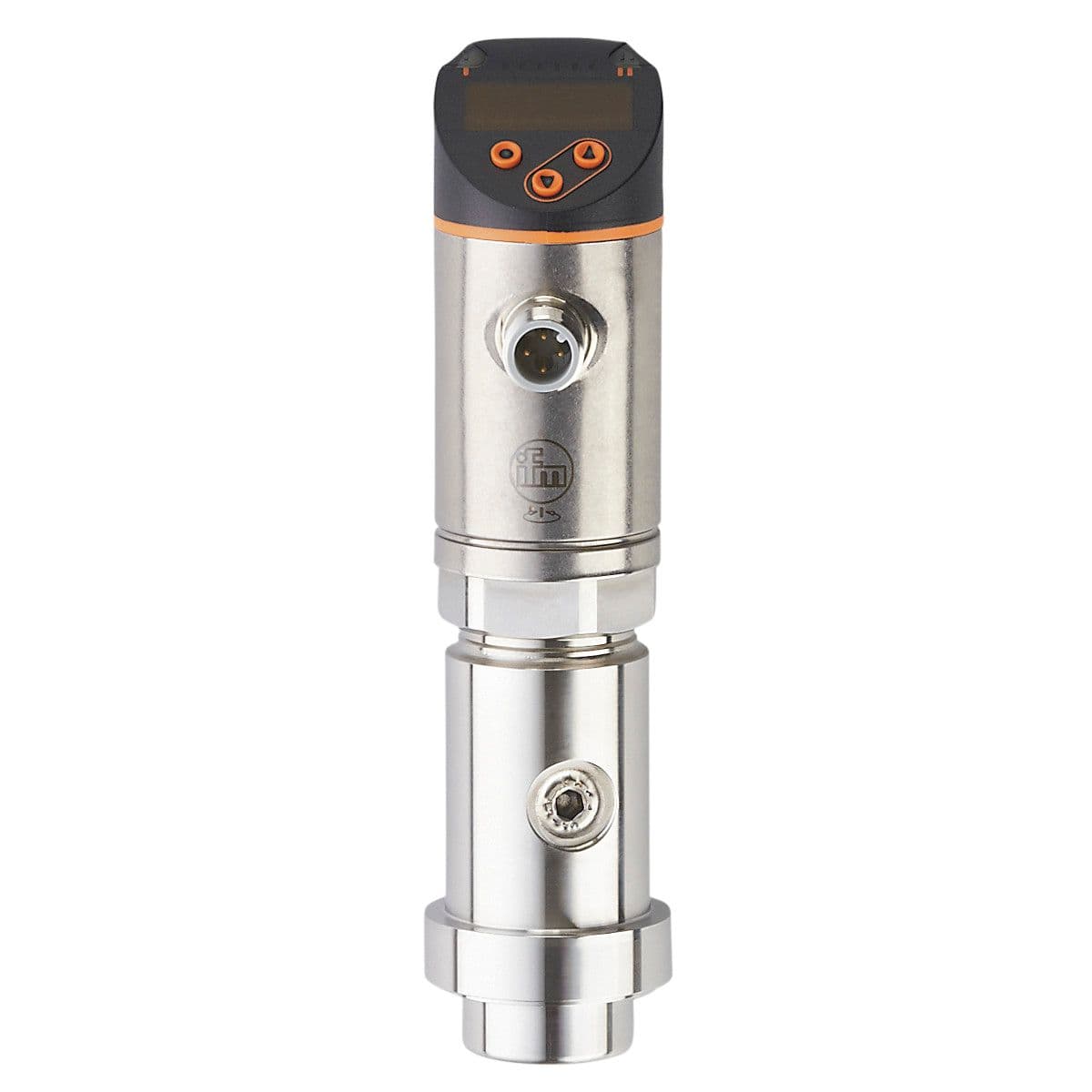

PY9060 ifm Electronic Electronic Components

Product Details

• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Switching frequency DC [Hz]
  < 500
• Media
  liquids and gases
• Vacuum resistance [mbar]
  -1000
• Type of short-circuit protection
  yes (non-latching)
• Application
  flush mountable for the food and beverage industry
• Reverse polarity protection
  yes
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Type of pressure
  relative pressure
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Process connection
  homogenizer connection
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Min. bursting pressure
  1200 bar 17400 psi 120 MPa
• Protection class
  III
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Current consumption [mA]
  < 35
• Electrical design
  PNP/NPN
• Pressure rating
  800 bar 11580 psi 80 Mpa
Overload protection
yes
Output signal
switching signal; analog signal; IO-Link; (configurable)
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
250
Max. load [Ω]
500
Power-on delay time [s]
0.3
Number of digital outputs
2
Measuring range
0...600 bar 0...8700 psi 0...60 MPa
Measuring element
diaphragm seal
Min. load resistance [Ω]
2000
Total number of outputs
2
Analog current output [mA]
4...20; (scalable 1:5)
Medium temperature [°C]
5...90; (< 1 h: 145)
Min. insulation resistance [MΩ]
100; (500 V DC)
Max. voltage drop switching output DC [V]
2
