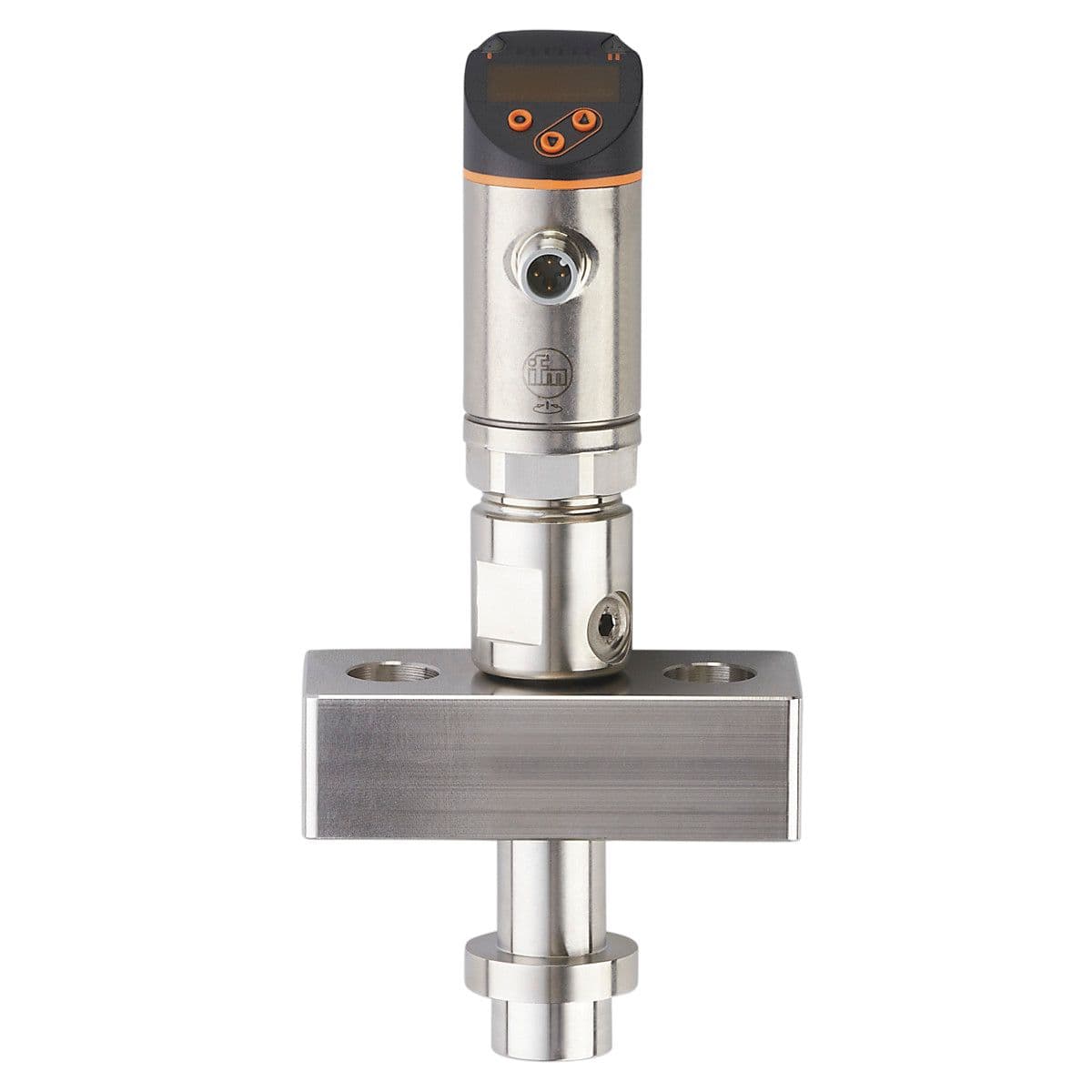

PY9070 ifm Electronic Electronic Components

Product Details

• Process connection
  homogenizer connection
• Application
  flush mountable for the food and beverage industry
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Max. voltage drop switching output DC [V]
  2
• Current consumption [mA]
  < 35
• Total number of outputs
  2
• Number of analog outputs
  1
• Number of digital outputs
  2
• Medium temperature [°C]
  5...90; (< 1 h: 145; bei 100°C Ambient temperature 60°C)
• Measuring range
  0...400 bar 0...5800 psi 0...40 MPa
• Power-on delay time [s]
  0.3
• Max. load [Ω]
  500
• Pressure rating
  600 bar 8700 psi 60 Mpa
• Media
  liquids and gases
• Integrated watchdog
  yes
• Min. load resistance [Ω]
  2000
• Overload protection
  yes
• Min. bursting pressure
  1000 bar 14500 psi 100 MPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  PNP/NPN
Switching frequency DC [Hz]
< 500
Type of short-circuit protection
yes (non-latching)
Type of pressure
relative pressure
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Analog current output [mA]
4...20; (scalable 1:5)
System
gold-plated contacts
Vacuum resistance [mbar]
-1000
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
250
Short-circuit protection
yes
Measuring element
diaphragm seal
Protection class
III
Output signal
switching signal; analog signal; IO-Link; (configurable)
Output function
normally open / closed; (configurable)
Analog voltage output [V]
0...10; (scalable 1:5)
