SA4110 ifm Electronic Electronic Components
Part#:SA4110
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

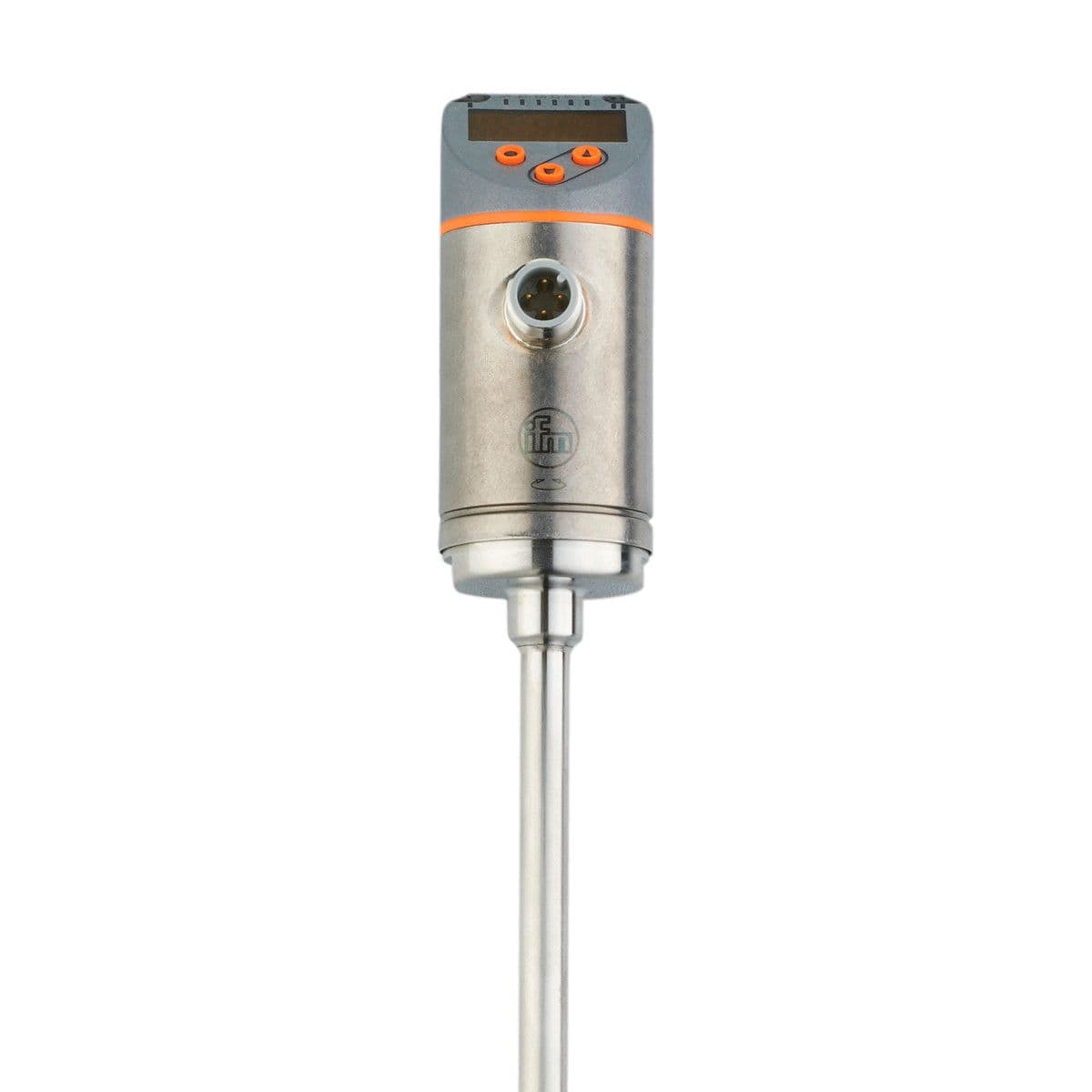

Flow sensor, Measurement of flow and temperature at the same time, Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1, Process connection: Diameter Ø 8 mm, System: gold-plated contacts, Media: water; glycol solutions;
Product Details
- Overload protection yes
- Frequency of the output [Hz] 0...1000
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Number of analog outputs 1
- Permanent current rating of switching output DC [mA] 250
- Number of digital outputs 2
- Electrical design PNP/NPN
- Reverse polarity protection yes
- System gold-plated contacts
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Max. load [Ω] 350
- Analog current output [mA] 4...20; (scalable)
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open / closed; (configurable)
- Output signal switching signal; analog signal; frequency signal; IO-Link; (configurable)
- Power-on delay time [s] 10
- Total number of outputs 2
- Operating voltage [V] 18...30 DC
- Protection class III
- Current consumption [mA] < 100
- Pressure rating [bar] 50
- Medium temperature [°F] -4...212
- Pressure rating [psi] 725
- Note on media low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F) high-viscosity oils with viscosity: > 40 mm²/s (104 °F)
- MAWP (for applications according to CRN) [bar] 50
- Process connection Diameter Ø 8 mm
- Media water; glycol solutions; air; oils
