SA4114 ifm Electronic Electronic Components
Part#:SA4114
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

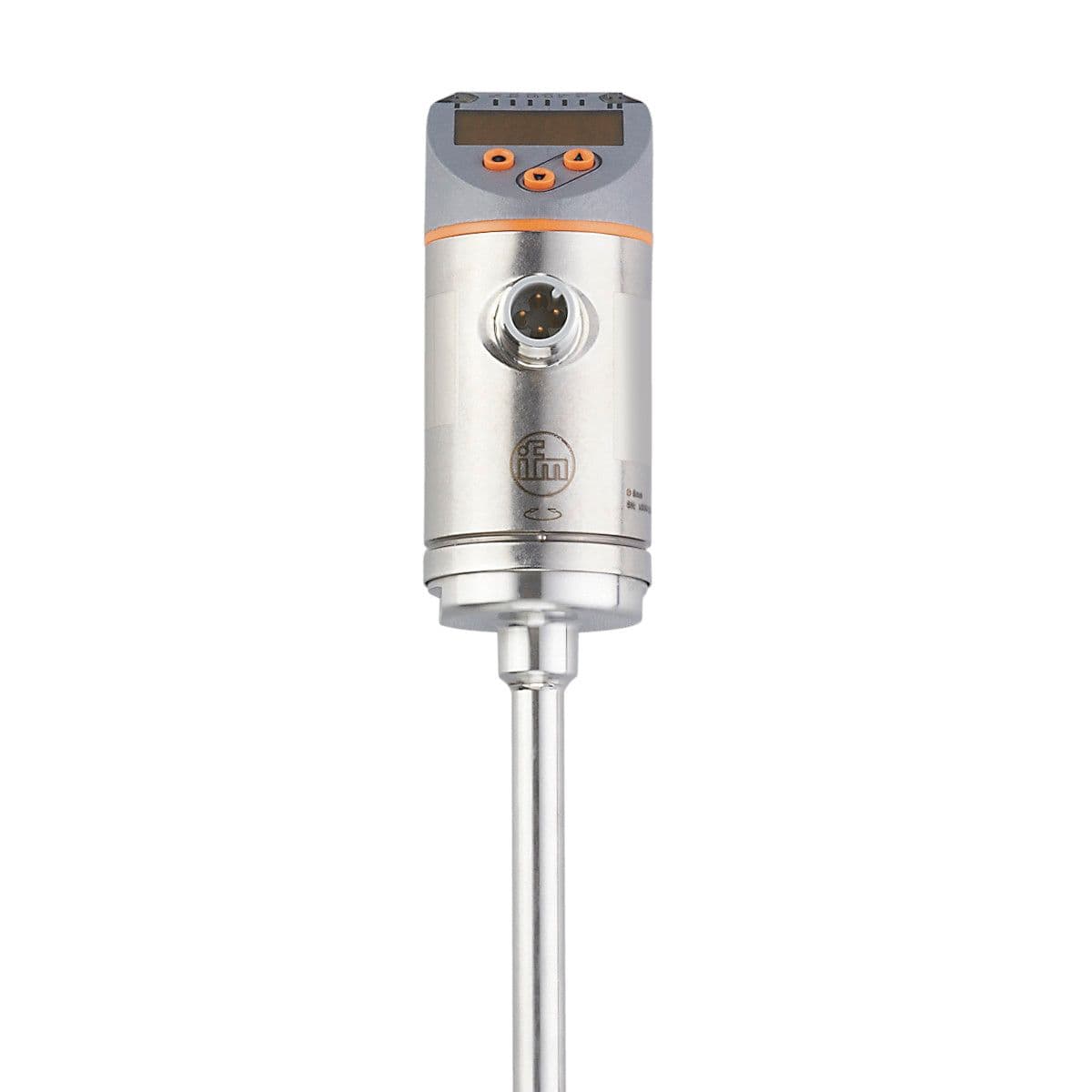

Flow sensor, Measurement of flow and temperature at the same time, Number of inputs and outputs: Number of analog outputs: 2, Process connection: Diameter Ø 8 mm, System: gold-plated contacts, Media: water; glycol solutions; air; oils, Note on media: low-
Product Details
- Media water; glycol solutions; air; oils
- Total number of outputs 2
- Current consumption [mA] < 100
- Analog current output [mA] 4...20; (scalable)
- Number of inputs and outputs Number of analog outputs: 2
- Power-on delay time [s] 10
- Type of short-circuit protection yes (non-latching)
- Protection class III
- Max. load [Ω] 350
- System gold-plated contacts
- Output signal analog signal
- Operating voltage [V] 18...30 DC
- Process connection Diameter Ø 8 mm
- Medium temperature [°F] -4...212
- Number of analog outputs 2
- Pressure rating [bar] 50
- Overload protection yes
- Reverse polarity protection yes
- Short-circuit protection yes
- Note on media low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F) high-viscosity oils with viscosity: > 40 mm²/s (104 °F)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
