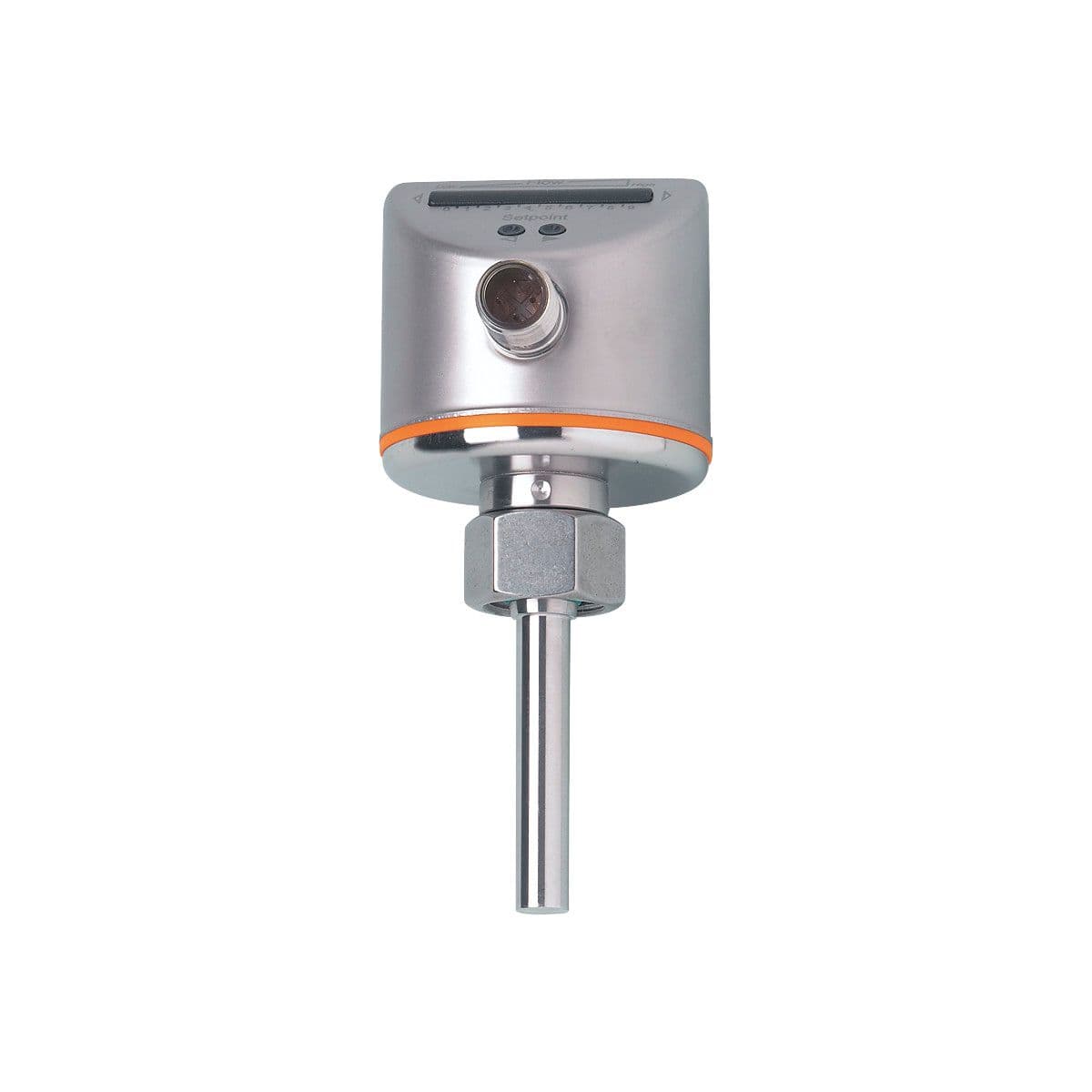

SI5010 ifm Electronic Electronic Components

Name: SI5010
Brand: ifm Electronic

Part#:SI5010

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Flow monitor, Reliable monitoring of liquids and gases in pipes, Number of inputs and outputs: Number of digital outputs: 1, Process connection: M18 x 1,5 Internal thread, Media: Liquids; Gases, Medium temperature [°C]: -25...80, Pressure rating [bar]: 30

Product Details

Output function
normally open / closed; (configurable)
Output signal
switching signal; IO-Link; (configurable)
Permanent current rating of switching output DC [mA]
250
Max. voltage drop switching output DC [V]
2.5
Protection class
III
Electrical design
PNP
Operating voltage [V]
18...36 DC
MAWP (for applications according to CRN) [bar]
208
Number of inputs and outputs
Number of digital outputs: 1
Short-circuit protection
yes
Overload protection
yes
Type of short-circuit protection
yes (non-latching)
Power-on delay time [s]
10
Number of digital outputs
1
Total number of outputs
1
Reverse polarity protection
yes
Current consumption [mA]
< 60
Pressure rating [bar]
300
Medium temperature [°C]
-25...80
Media
Liquids; Gases

Process connection

M18 x 1,5 Internal thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI5010 Related Documents

CAD_SAT_300_0075.ZIP-1631073118171.zip PDF data sheet-1631073118163.pdf CAD_DXF_300_0075.ZIP-1631073118167.zip CAD_DWG_300_0075.ZIP-1631073118174.zip CAD_STP_300_0075.ZIP-1631073118169.zip

Manufacturer warranty
