SI5011 ifm Electronic Electronic Components
Part#:SI5011
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

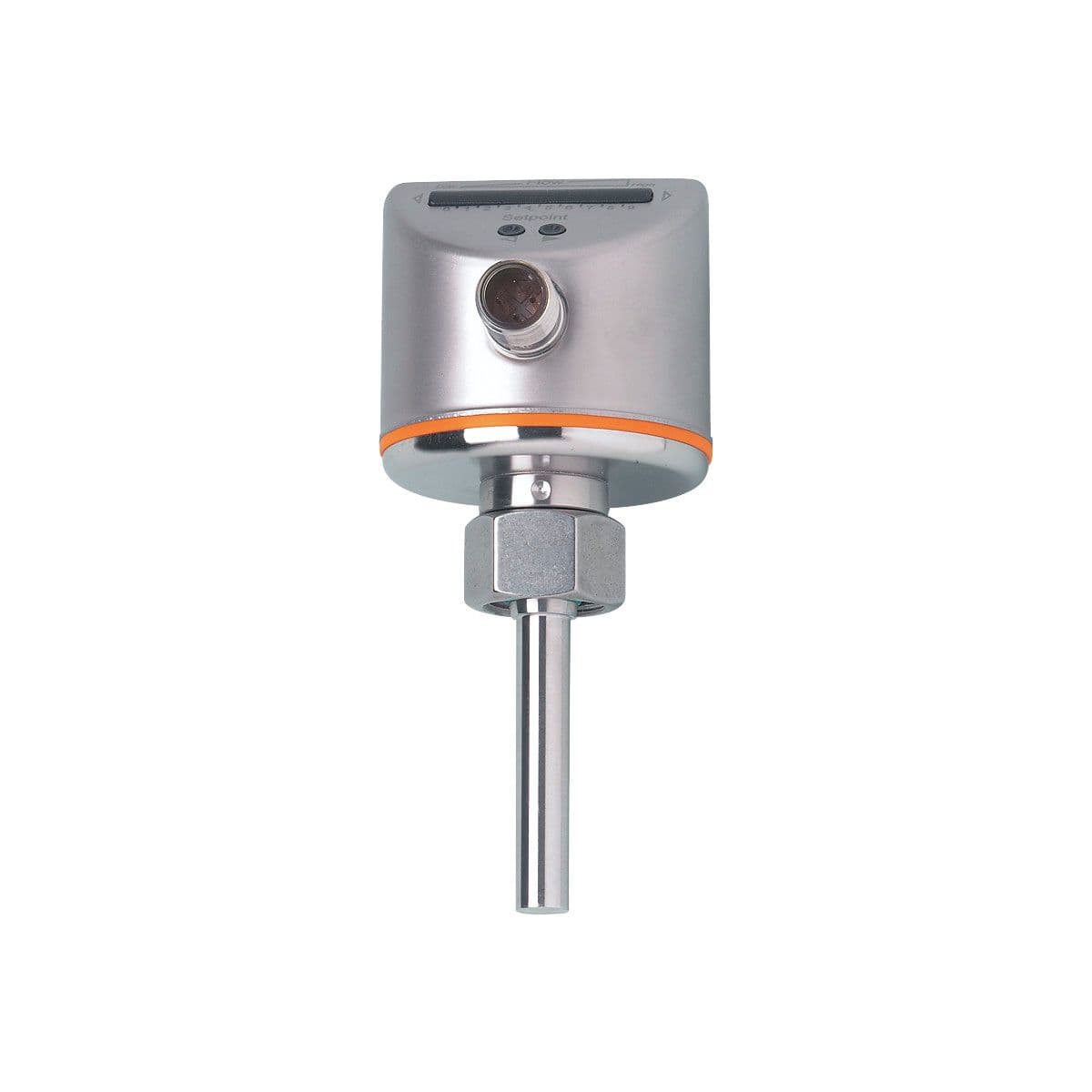

Flow monitor, Reliable monitoring of liquids and gases in pipes, Number of inputs and outputs: Number of digital outputs: 1, Process connection: M18 x 1,5 Internal thread, Media: Liquids; Gases, Medium temperature [°C]: -25...80, Pressure rating [bar]: 30
Product Details
- Output function normally open / closed; (configurable)
- Short-circuit protection yes
- Overload protection yes
- Type of short-circuit protection yes (non-latching)
- Permanent current rating of switching output DC [mA] 250
- Max. voltage drop switching output DC [V] 2.5
- Electrical design NPN
- Output signal switching signal
- Number of digital outputs 1
- Total number of outputs 1
- Power-on delay time [s] 10
- Reverse polarity protection yes
- Protection class III
- Current consumption [mA] < 60
- Operating voltage [V] 19...36 DC
- Medium temperature [°C] -25...80
- Number of inputs and outputs Number of digital outputs: 1
- Pressure rating [bar] 300
- Process connection M18 x 1,5 Internal thread
- Media Liquids; Gases
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
