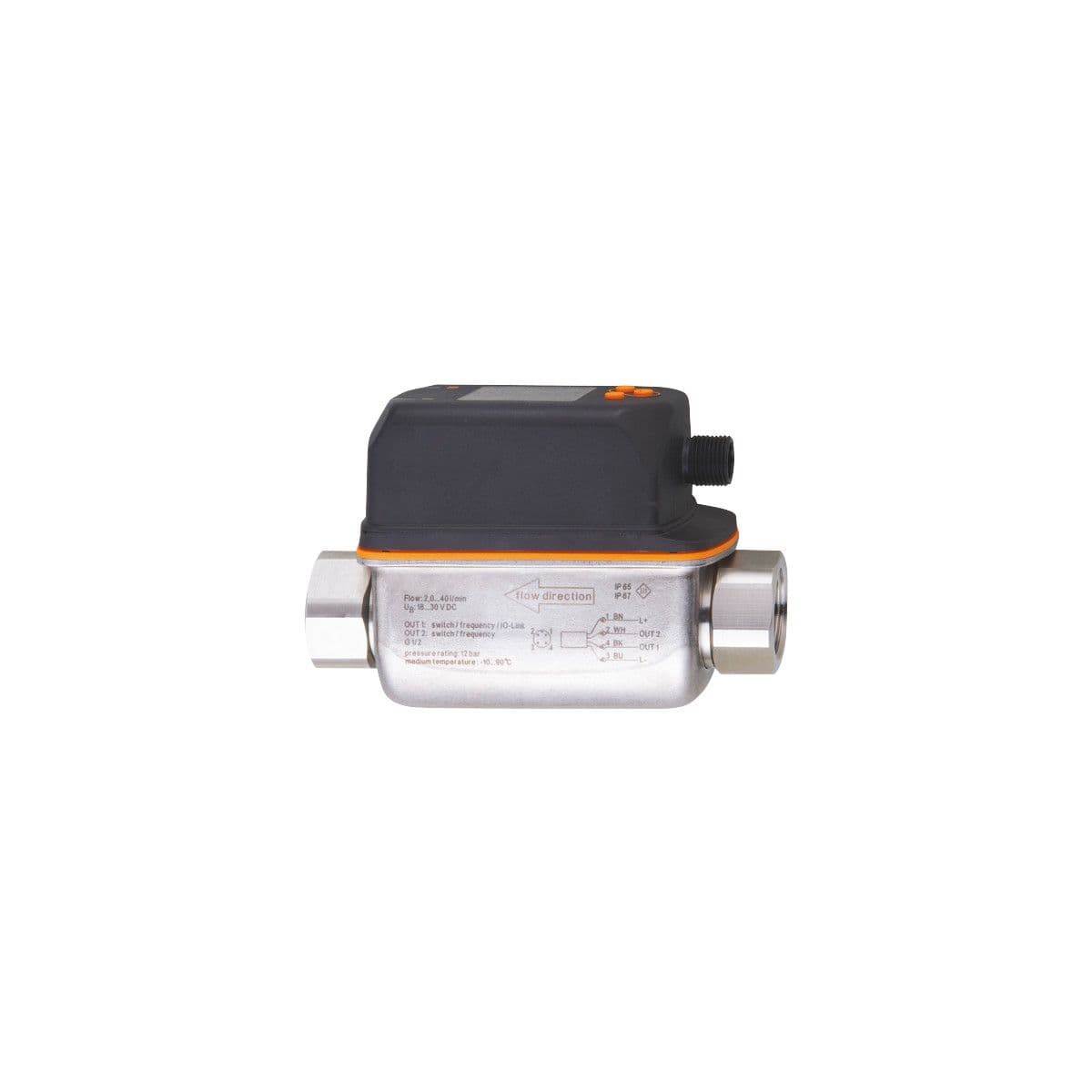

SV5200 ifm Electronic Electronic Components
Part#:SV5200
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Vortex flowmeters with display, Type SV, Reliable detection of flow and medium temperature, Number of inputs and outputs: Number of digital outputs: 2, Measuring range: 2...40 l/min 0.12...2.4 m³/h, Process connection: threaded connection G 1/2 DN10, Syst
Product Details
- Protection class III
- Max. voltage drop switching output DC [V] 2.5
- Pressure rating [Mpa] 1.2
- Power-on delay time [s] < 3
- Overload protection yes
- System gold-plated contacts
- Current consumption [mA] < 30
- Number of digital outputs 2
- Note on pressure rating up to 40 °C
- Media water
- Output function normally open / closed; (configurable)
- Medium temperature [°C] -10...90
- Short-circuit protection yes
- Operating voltage [V] 18...30 DC
- Pressure rating [bar] 12
- Output signal switching signal; frequency signal; IO-Link; (configurable)
- Number of inputs and outputs Number of digital outputs: 2
- MAWP (for applications according to CRN) [bar] 4.8
- Process connection threaded connection G 1/2 DN10
- Electrical design PNP/NPN
- Measuring range 2...40 l/min 0.12...2.4 m³/h
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Total number of outputs 2
- Reverse polarity protection yes
- Permanent current rating of switching output DC [mA] 100
- Application for industrial applications
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
