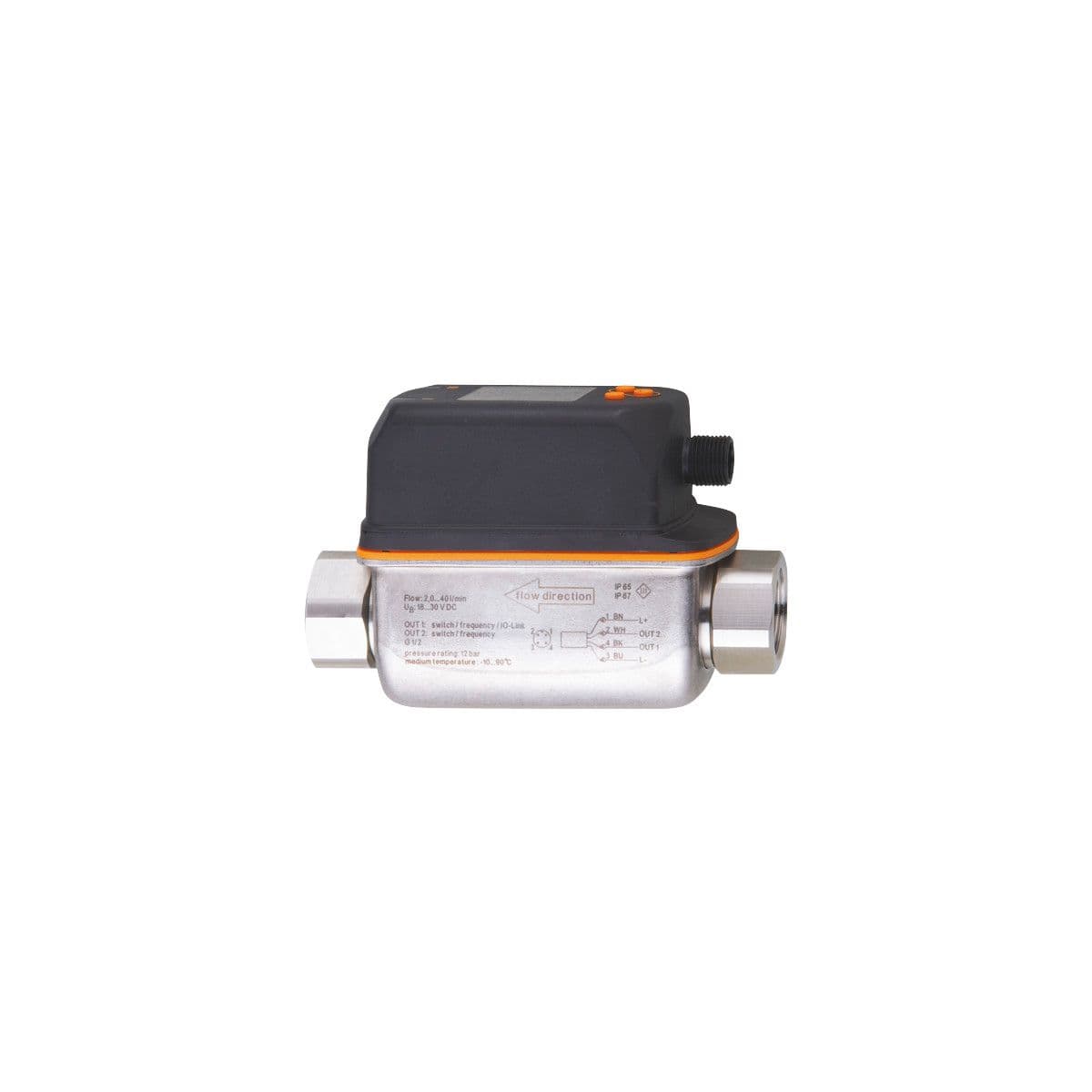

SV5204 ifm Electronic Electronic Components
Part#:SV5204
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Vortex flowmeters with display, Type SV, Reliable detection of flow and medium temperature, Number of inputs and outputs: Number of analog outputs: 2, Measuring range: 2...40 l/min 0.12...2.4 m³/h, Process connection: threaded connection G 1/2 DN10, Syste
Product Details
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Max. load [Ω] 500
- Medium temperature [°C] -10...90
- Operating voltage [V] 18...30 DC
- Total number of outputs 2
- Media water
- Note on pressure rating up to 40 °C
- Pressure rating [Mpa] 1.2
- Number of inputs and outputs Number of analog outputs: 2
- Measuring range 2...40 l/min 0.12...2.4 m³/h
- Power-on delay time [s] < 3
- System gold-plated contacts
- Current consumption [mA] < 30
- Output signal analog signal
- Number of analog outputs 2
- Application for industrial applications
- MAWP (for applications according to CRN) [bar] 4.8
- Analog current output [mA] 4...20
- Reverse polarity protection yes
- Pressure rating [bar] 12
- Short-circuit protection yes
- Process connection threaded connection G 1/2 DN10
- Protection class III
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
