221807 Lapp Industrial Automation Components
Part#:221807
Manufacturer:Lapp
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

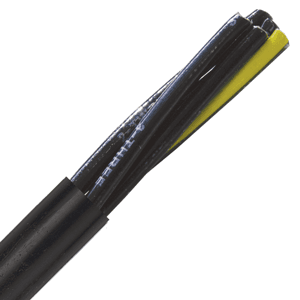

221807 Lapp - ÖLFLEX TRAY II 7G1 18/7C
Product Details
- JACKET MATERIAL Thermoplastic Polymer
- NOMINAL OD (IN) 0.373
- ATTRIBUTES UL Oil Res I/IISunlight resistant Direct burialNFPA 79
- CONDUCTOR MATERIAL Bare copper
- SHIELDING Unshielded
- TEMPERATURE RANGE -13°F to +194°F -25°C to +90°C
- NOMINAL OD (MM) 9.5
- CONDUCTOR STRANDING Stranded
- VOLTAGE 600V
- APPLICATION Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
- SERIES ÖLFLEX® TRAY II / TRAY II CY
- STATIC TEMPERATURE RATING -40°F to +221°F-40°C to +105°C
- MANUFACTURER PART NUMBER 221807
- CONDUCTOR COLOR Black with white printing plus green/yellow ground
- AWG/GAUGE 18
- TRAY RATINGS UL ITC-ER UL PLTC-ER UL TC-ER
- JACKET COLOR Black
- DYNAMIC TEMPERATURE RATING -13°F to +221°F -25°C to +105°C
- UL STYLE / STANDARD UL 13 UL 1063 UL 1277 UL 1690 UL 2250
- NUMBER OF CONDUCTORS 7
- WEIGHT LBS/MFT 99
- INSULATION PVC/Nylon
- STANDARDS/APPROVALS UL Approved CSA Approved CE Approved
- Jacket Color Black
- Gauge 18 american wire gauge
- Voltage 600 volts
- Stranding Class 5 Fine Wire
- Operating Temperature -25 degrees celsius, 90 degrees celsius
- Bend Radius 4 X Cable Diameter
- Jacket Material Thermoplastic Polymer
- Conductor Material Finely Stranded Bare Copper
- Insulation Material Nylon, PVC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Tray Cable, ÖLFLEX TRAY II, 18 AWG/7C, 600V, UL TC-ER, UL MTW, c(UL) CIC/TC FT4
