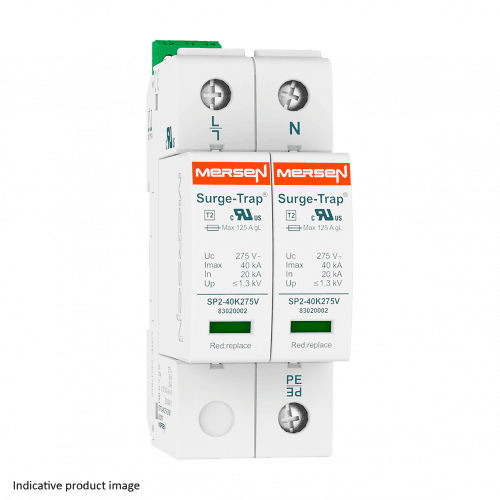

83020124 Mersen Electronic Components
Part#:83020124
Alt. Part#:8435297851073
Manufacturer:Mersen
Category:Electronic Components
Product Lifecycle:Active
Product description
SPD Type 2, 40kA, Uc320V, 2+0 TNS, 2 Poles, 2 Modules, Pluggable
Product Details
- Catalogue No. STPT2-40K320V-2P
- Max. Back-Up Fuse 125 A gG
- Product Width 36 mm
- Nominal Discharge Current (In) (8/20) 20kA
- Short Circuit Withstand (ISCCR) 25 kA
- Uc (L-PE) 320 V
- Nominal Operating Volt Rating (Un) 277 V
- Short Circuit Current Rating (SCCR) 50 ... 100 kA
- AC or DC AC
- Indication System Type Visual Indicator
- Product Length 70 mm
- Max Discharge Current : Imax (8/20) 40kA
- Indication System Yes
- Up at In (L-PE) ≤1.5 kV
- VPR L-N 2000 V
- System Configuration TT. TNS
- Torque Rating 4 N m
- MCOV N-G 320 V
- Sell Pack Width 45 mm
- Housing Material PA66 CT1; V-0
- Sell Pack Weight 0.225 kg
- MCOV L-N 320 V
- ROHS Compliant Yes
- MOV Response Time 25 ns
- Sell Pack Length 105 mm
- IEC SPD Type Type 2 / Class II
- MCOV L-G 320 V
- VPR N-G 1000 V
- Sell Pack Quantity 1 EACH
- VPR L-G 1000 V
- Replacement Plug L-N SP2-40K320V
- Sell Pack Height 80 mm
- Number of Poles 2-Pole
- Product Weight 0.225 kg
- Product Height 90 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
