T076170 Mersen Fuses
Product Details
- Current Rating 500 A
- Terminal Type End Contact with Threaded Holes
- Weight 1624.412 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Speed/Characteristic aR
- Design Details URK
- Sell Pack Quantity 1 EACH
- Power Dissipation at Rated Current Value 158 W
- Indication System Yes
- Sell Pack Length 7.95 in
- AC Max I.R./Breaking Capacity: I1 200 kA
- Connection/Terminal Type End Contact with Threaded Holes
- Product Width 2.93 in
- Ampere Rating 500 A
- Connection/Terminal Material Silver-Plated Brass
- Product Height 3.37 in
- Mounting Bolted
- Body/Insulating Material Ceramic
- Sell Pack Weight 3.578 lb
- Rated voltage AC IEC 1500 V
- Indication System Type Striker
- Sell Pack Width 5 in
- Clearing I2t At Rated Voltage 375 kA²s
- Catalogue No. PC93UK15C500TF
- Product Length 3.98 in
- Sell Pack Height 3.62 in
- Fuse Size 93
- Product Weight 3.578 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T076170 on Advantage Electric Supply is $5,743.17. Order now.
About the product

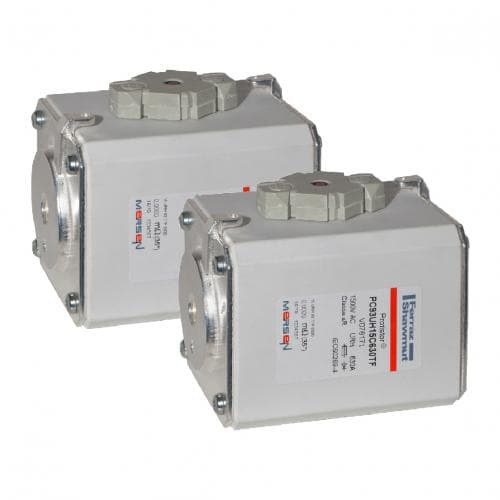

T076170 Mersen - High performance square body fuse-link Protistor® Size 93 aR 1500VAC IEC 500A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
Mersen 1500 V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuse-links are available in three different body sizes, each size having four worldwide acceptable mounting styles. The different mounting styles and body sizes along with a broad range of ampere ratings allow greatest flexibility in equipment design.
The Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR’s, diodes, thyristors, GTO’s and IGBT devices. They have pure silver die-cut elements embedded in solidified sand which helps control arcing characteristics for low I²t and high breaking capacity. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly on to the fuse even while in service.
*Extremely fast acting
*Current limiting
*Very low l²t
*Worldwide acceptability
*Superior cycling ability
*Choice of mounting styles
*Broad range of ampere rating
