USN Mersen Fuse Holders
Part#:USN
Alt. Part#:782001830069
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
USN Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A N Pressure Plate IP65
Product Details
- Number of Poles N Pole
- Current Rating 30 A
- Weight 63.56 g
- Voltage 800 VAC
- Fuse Class Midget
- Wiring range #6 to #14 Solid or Stranded
- Ampere Rating 30 A
- Product Width 0.69 in
- Sell Pack Length 8.5 in
- ROHS Compliant Yes
- Fuse Installation Method Clip-in
- Sell Pack Quantity 12 Each
- Fuse Type/Class Midget
- Installation Mounting DIN Rail
- Sell Pack Width 3.5 in
- Rated voltage DC UL 1000 V
- Max Fuse Rating 30 A
- Number of Poles 1-pole
- Body/Insulating Material Polyamide
- Product Length 3.07 in
- Short Circuit Current Rating (SCCR) 100
- Product Height 2.32 in
- Rated voltage AC UL 800 V
- Product Weight 0.14 lb
- Sell Pack Height 2.66 in
- Sell Pack Weight 1.76 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of USN on Advantage Electric Supply is $51.78. Order now.
About the product

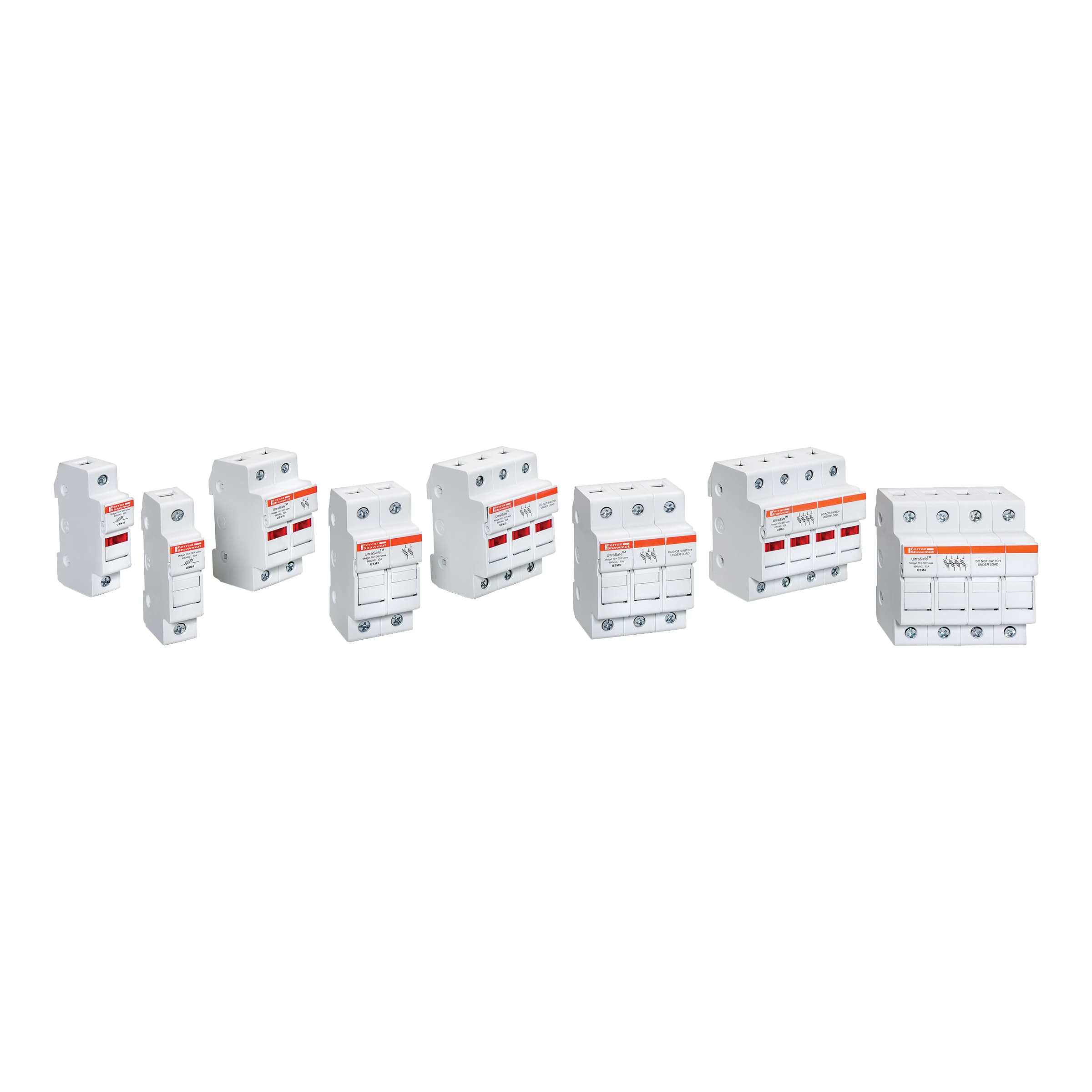

USN Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A N Pressure Plate IP65 | Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties. | Features: * IP20 Finger-Safe (touch safe)
* Optional visual blown fuse Indicator lights
* DIN-rail mounting
* Compact footprint
* Quick, tool-free, easy fuse change outs
* USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M | Application: *All circuits up to 600 volts for motors, control circuits, transformers, etc…
*DC circuits up to 1000VDC including photovoltaic applications
*Non-load disconnect
