Name: CD5.121
Brand: Puls
Price: 445 USD
Availability: BackOrder

CD5.051

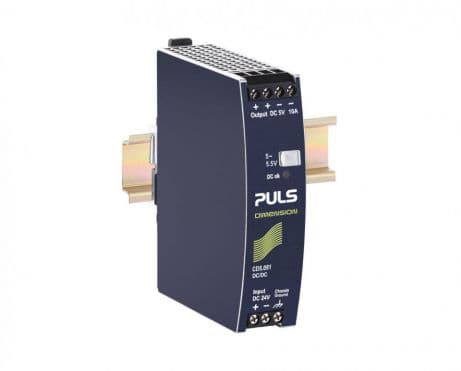

PULS CD5.051 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.6A current at a 24Vdc input for a full 5Vdc output at 10A, with a peak inrush current of 1.6A. It offers an efficiency of 0.815 at 5.1Vdc 10A input and is protected by an IP20 degree of protection. The CD5.051 includes a 420ms start-up delay, a 300ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 350ms rise time with an 8mF load capacitance. It features output overvoltage protection, overload protection, no-load and short-circuit protection with a short-circuit current of min. 12A to max. 20A, over-temperature protection with automatic restart, and allows for series/parallel operation for increased output power or redundancy. The unit is resistant to back-feeding loads up to 5.6V, includes reverse polarity protection, and has a power dissipation/loss of 11.5W at a 24Vdc input with a 5.1V output load at 10A. The output stage capacitance is 16000 µF, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. It functions as a power supply unit or DC/DC-converter with a 20% power reserve, belonging to the CD-series and designed with galvanic isolation and screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc (24Vdc nominal) and 14.4-18Vdc for a maximum of 60 seconds. It has a rated current of 12A at 5Vdc from -25 to +45°C and 10A at 5Vdc from +45 to +60°C, with a derating of 1.25W from +60 to +70°C. The rated power is 60W at -25 to +45°C and 50W at -25 to +60°C, with an adjustable output voltage of 5Vdc to 5.5Vdc and a 250mV turn-ON overshoot. The hold time is 10ms at a 24Vdc input.

Puls

CD5.243

Verified stock: 0

PULS CD5.243 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32mm. The unit consumes 9.2A current at 12Vdc input to deliver a full 24Vdc output at 4A, with a peak inrush current of 1.3A. It boasts an efficiency of 0.877 under a 24Vdc, 4A input. The dimensions are W32mm x H124mm x D102mm. It includes a 450ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.243 offers protection against output overvoltage, short circuits, and allows for series or parallel operation to increase output power or achieve 1+1 redundancy for higher system availability. It is capable of handling back-feeding loads up to 30V without malfunctioning, regardless of the power supply's operational state. The unit features reverse polarity protection, with power dissipation losses of 13.5W under a 12Vdc input and 24V output load at 4A. The output stage capacitance is 2200µF, and it has an electrical durability ranging from 33,000 to 206,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz frequency range. This PSU/DC/DC-Converter includes a 20% power reserve, is part of the CD-series, and comes with ATEX approval and galvanic isolation. Connections are made via screw-clamp connections. The supply voltage ranges from 11Vdc to 16.2Vdc, with a rated current of 4.8A at 24Vdc in temperatures up to 45°C, and lower currents as the temperature increases up to 70°C. The rated power is 116W in ambient temperatures less than 45°C and 96W for temperatures less than 60°C. The output voltage is adjustable between 23-28Vdc, with a 300mV turn-ON overshoot and a hold time of 3ms.

Puls

CD5.241

Verified stock: 0

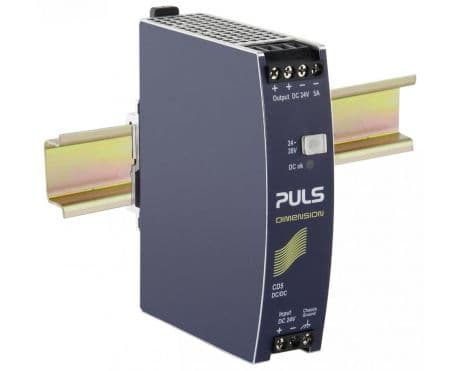

PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.

Puls

ML60.242

Verified stock: 3

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

ML70.100

Verified stock: 1

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CD5.242

Verified stock: 0

PULS CD5.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.75A current at a 48Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 0.8A. It boasts an efficiency of 0.903 at a 24Vdc, 5A input. The dimensions are W32mm x H124mm x D102mm. It includes a 670ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.242 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation losses are 12.9W at a 48Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 39,000 to 181,000 hours depending on conditions. The ripple is 50mVpp from 20Hz to 20MHz. This PSU/DC/DC-Converter supports a 20% power reserve and is designed with ATEX approval for galvanic isolation. It features screw-clamp connections and accepts a supply voltage of 39Vdc-57Vdc (48Vdc nominal), with a short-term tolerance down to 30.5-36Vdc for up to 60 seconds. The rated current is 6A at 24Vdc in temperatures up to 45°C, with derating applied up to +70°C. The rated power is 144W in ambient temperatures less than 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and it has a hold time of 5.6ms at a 48Vdc input.

Puls

CD5.241-L1

Verified stock: 0

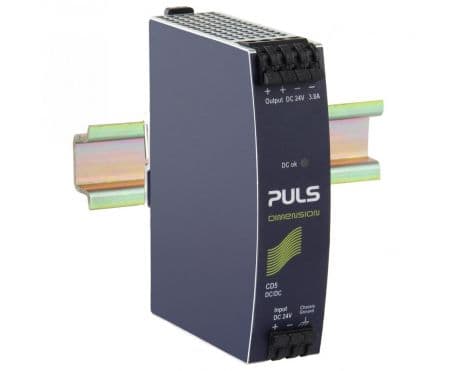

PULS CD5.241-L1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. This unit consumes 4.25A current at a 24Vdc input to deliver a full 24Vdc output, with a peak inrush current of 1.6A. It boasts an efficiency of 0.905 at 24Vdc 3.8A input. The dimensions are W32mm x H124mm x D102mm. It includes a 650ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.241-L1 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or 1+1 redundancy. It is capable of handling back-feeding loads up to 30V without malfunctioning, whether the power supply is on or off. The unit features reverse polarity protection, with power dissipation losses of 9.7W under a 24Vdc input and 24V output load at 3.8A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 134,000 to 378,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This PSU/DC/DC-Converter includes a 20% power reserve, is designed with NEC Class 2 and ATEX approval for galvanic isolation, and utilizes spring-clamp connections for connectivity. It supports a supply voltage range of 14.4Vdc to 32.4Vdc, with a 36Vdc absolute maximum continuous input voltage. The rated current is 3.8A at 24Vdc, with a rated power of 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C. The output voltage is a fixed 24Vdc with a 500mV turn-ON overshoot, and it has a 6ms hold time at 24Vdc input.

Puls

CD5.241-S1

Verified stock: 0

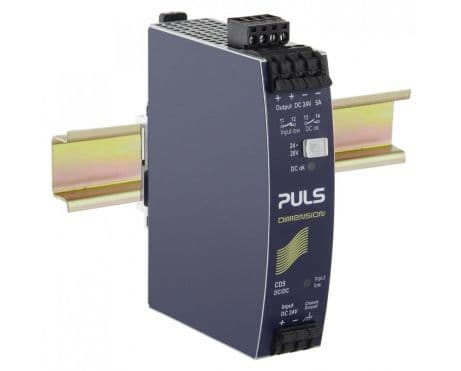

PULS CD5.241-S1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.902 under a 24Vdc, 5A input condition. The dimensions of this power supply unit are W32mm x H124mm x D102mm. It includes a 290ms start-up delay and a 520ms rise time under nominal input with a constant full current load. The CD5.241-S1 is equipped with protection functions including output overvoltage protection, low input voltage signalling via relay contact, and short-circuit current protection. It supports series or parallel operation for increased output power or 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation/losses are 13.3 W under a 24Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 33,000 to 180,000 hours depending on the operating conditions. Ripple is maintained at 50mVpp. This PSU/DC-DC Converter offers a 20% power reserve and features ATEX approval, galvanic isolation, and a DC-OK relay contact output. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 6A at 24Vdc in temperatures up to 45°C, and a rated power of 144W in ambient temperatures less than 45°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.

Puls
