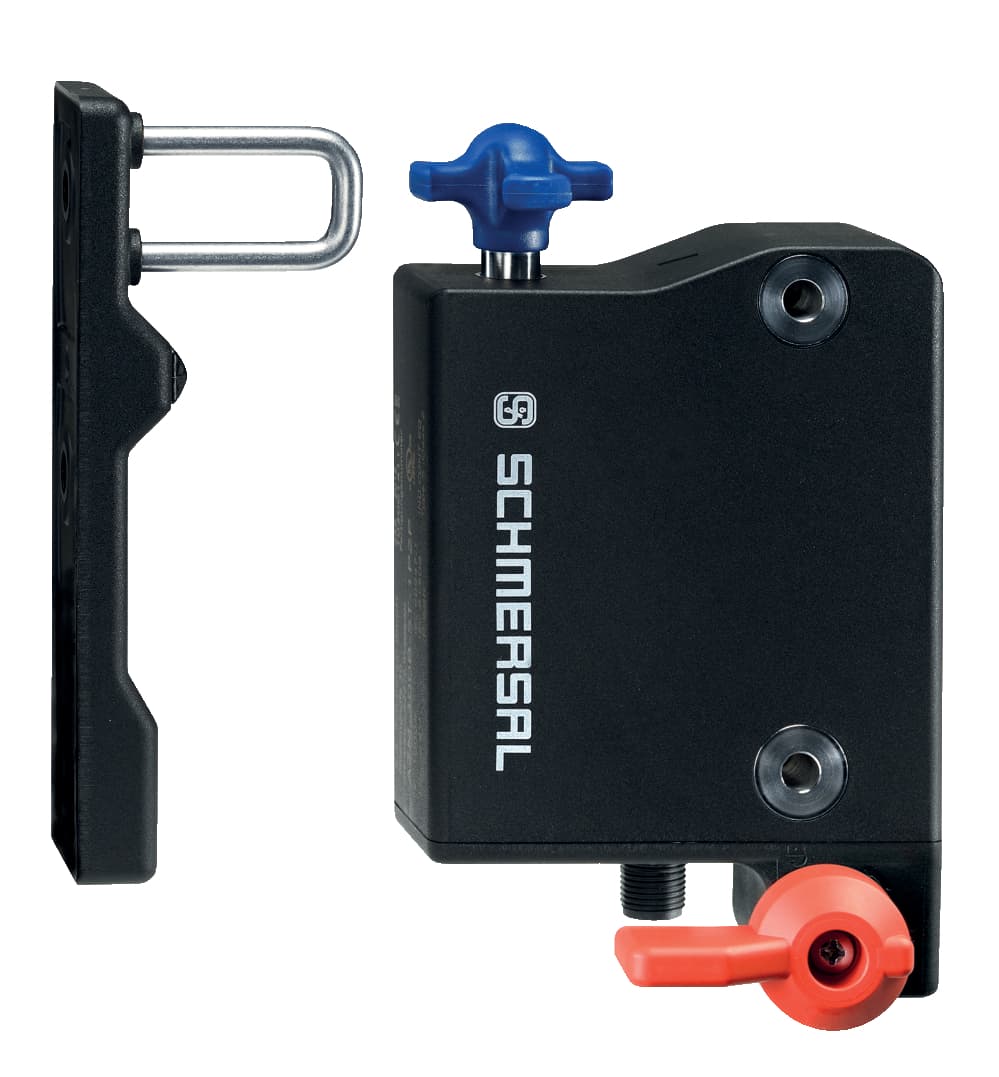

AZM300Z-I1-ST-1P2P-A Schmersal Safety Switches

Product Details

• Transmit power, maximum
  -6 dB/m
• Active principle
  RFID
• general information
  Individual coding
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Standards
  IEC 61508, IEC 60947-5-3, EN ISO 13849-1
• Time to readiness, maximum
  5,000 ms
• Frequency band RFID
  125 kHz
• Gross weight
  550 g
• Latching
  Yes
• Ambient temperature, maximum
  +60 °C
• Ambient temperature, minimum
  +0 °C
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
• Storage and transport temperature, minimum
  -10 °C
• Storage and transport temperature, maximum
  +90 °C
• Restistance to shock
  30 g / 11 ms
• Note (Relative humidity)
  non-condensing, non-icing
• Relative humidity, maximum
  93 %
• Protection rating
  III
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Zulässige Aufstellhöhe über NN, maximum
  2,000 m
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Overvoltage category
III
Operating voltage, maximum
26.4 VDC
Operating voltage, minimum
20.4 VDC
Degree of pollution to IEC/EN 60664-1
3
No-load supply current I0
100 mA
Notes (Power supply, general)
stabilised PELV power supply
Current consumption with solenoid ON, average
200 mA
Classification ZVEI CB24I, Sink
C1, C2
Required rated short-circuit current to EN 60947-5-1
100 A
Test pulse interval, minimum
100 ms
Voltage, Utilisation category DC12
24 VDC
Current consumption with solenoid ON, peak
350 mA / 200 ms
Classification ZVEI CB24I, Source
C2
Voltage, Utilisation category DC13
24 VDC
External wiring and device fuse rating
2 A gG
Versions
short-circuit proof, p-type
Switching frequency, maximum
0.5 Hz
Current leakage Ir
0.5 mA
Duty cycle solenoid
100 %
Current, Utilisation category DC12
0.05 A
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Voltage drop Ud, maximum
4 V
Test pulse duration, maximum
0.5 ms
Current, Utilisation category DC13
0.05 A
Current consumption at 24V
5 mA
Test pulse interval, typical
1000 ms
Power to lock
Yes
Latching force, adjustable, position 1
25 N
Ensured switch distance OFF Sar
20 mm
Series-wiring
Yes
Clamping force in accordance with ISO14119 Fzh
1,150 N
Height of sensor
35 mm
Coding level according to ISO 14119
High
Short-circuit recognition
Yes
Switch distance
2 mm
Length of sensor chain, maximum
200 m
Duration of risk, maximum
200 ms
Angular offset between interlocking device and actuator, maximum
2 °
Ensured switch distance ON Sao
1 mm
Width of sensor
87.5 mm
Guard locking monitored
Yes
Integral System Diagnostics, status
Yes
Clamping force, maximum Fmax
1,500 N
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Manual release
Yes
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Tightening torque of the fixing screws, minimum
6 Nm
Length of sensor
120 mm
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Number of fail-safe digital outputs
2
Type of the fixing screws
2x M6
Terminal Connector
Connector M12, 8-pole, A-coded
Short circuit detection
Yes
Mechanical life, minimum
1,000,000 Operations
Tightening torque for the fixing screws, maximum
7 Nm
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Safety functions
Yes
Latching force, adjustable, position 2
50 N
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
