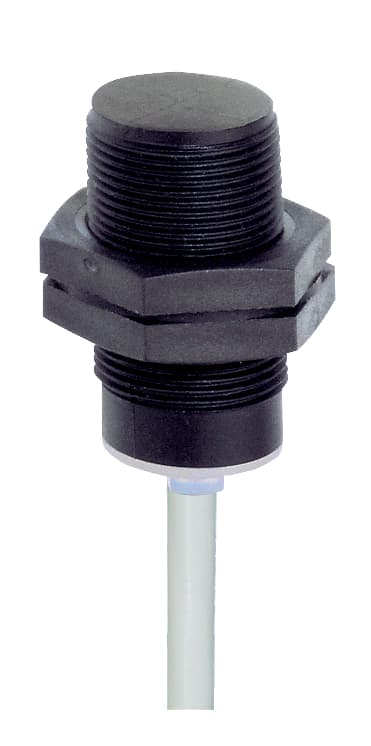

EX-BNS 180-12Z-2187-2-3G/D Schmersal Electronic Components

Product Details

• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 1 mm
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67
• Terminal Connector
  Cable
• Ensured switch distance ON Sao
  18 mm, 8 mm
• Active area
  front side
• Switching capacity, maximum
  5 W
• Switching frequency, maximum
  5 Hz
• Voltage type
  AC (alternating current), DC (direct current)
• Switching current, maximum
  0.25 A
• Switching voltage, maximum
  120 VAC
• Storage and transport temperature, maximum
  +70 °C
• Restistance to shock
  30 g / 11 ms
• Ambient temperature, maximum
  +70 °C
• Storage and transport temperature, minimum
  -25 °C
• Length of sensor
  36 mm
• ISO thread of the sensor
  M18
• Material of the Cable mantle
  PVC
• Wire cross-section
  23 AWG
• Length of cable
  1 m
Ensured switch distance OFF Sar
22 mm, 32 mm
Impact energy, maximum
2 J
Direction of motion
Head-on to the active surface
Actuator switch distance
Actuating magnet BP 15 SS, Sao: 18 mm, Actuating magnet BP 10, Sao: 18 mm, Actuating magnet BP 8, Sao: 8 mm
Number of openers
2
Number of shutters
1
Short-circuit recognition
Yes
Gross weight
46 g
Actuating element
Magnet
Housing construction form
Cylinder, thread
Number of safety contacts
2
Standards
IEC 60947-5-3, BG-GS-ET-14
Enclosure material
Glass-fibre, reinforced thermoplastic
Short circuit detection
Yes
Installation conditions (mechanical)
quasi-flush
