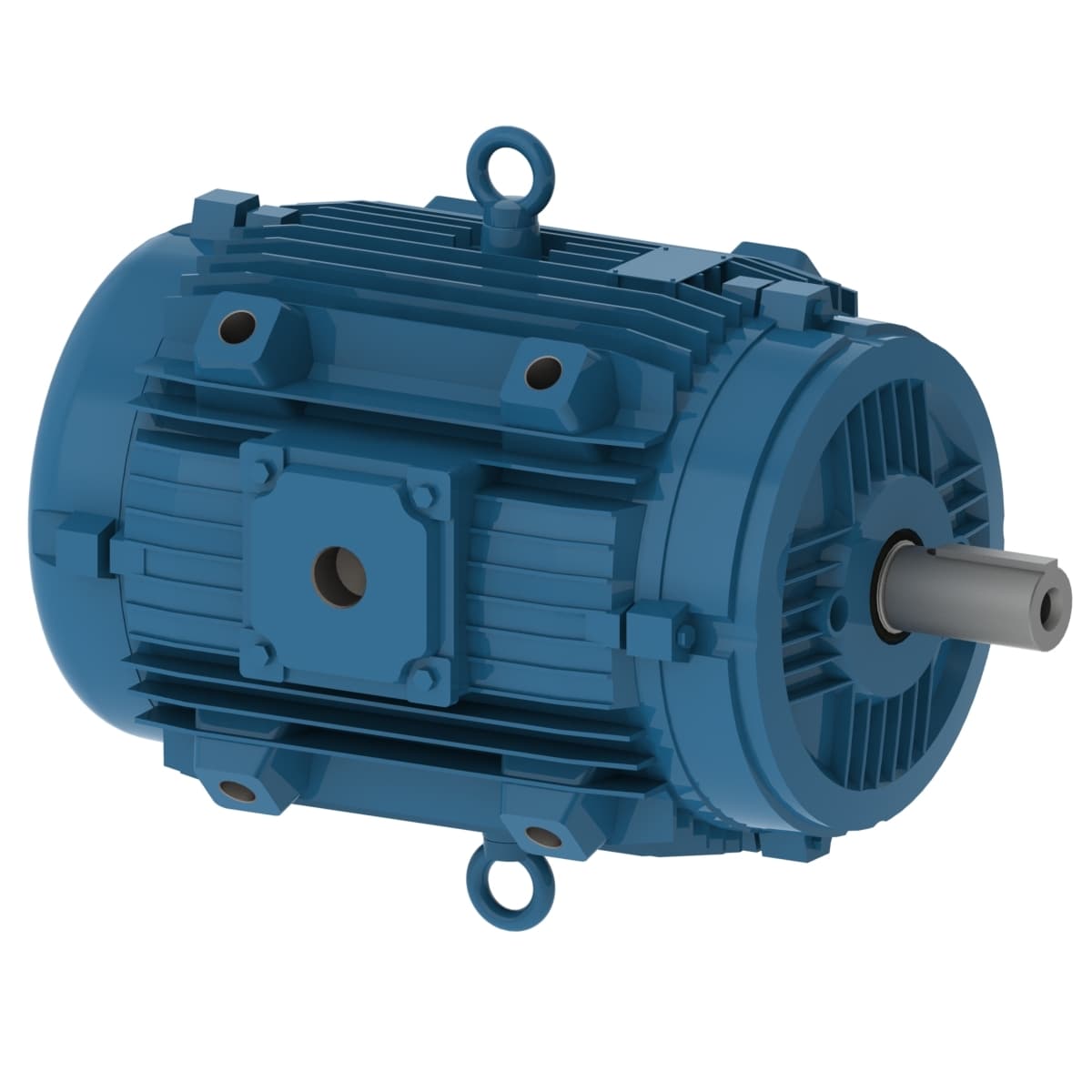

10120644 WEG AC Motors
Product Details
- Number of poles 6
- Output rating 2 HP
- Synchronous speed 1200 rpm
- Ambient temperature -20°C to +40°C
- Terminal box¹ Right position
- Approx. weight³ 0.0 lb
- Flange Without
- Voltage 208-230/460 V
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP21
- Mounting F-2
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Temperature rise 80 K
- Enclosure IC01 - ODP
- Service factor 1.00
- Design D
- Breakdown torque 0 %
- Locked rotor time 32s (cold) 18s (hot)
- Insulation Class F
- Moment of inertia (J) 0.4343 sq.ft.lb
- Locked rotor torque 290 %
- No load current 3.66-4.26/2.13 A
- Rated torque 9.21 ft.lb
- LRC 7.2x(Code L)
- Rated voltage 208-230/460 V
- Rated speed 1140 rpm
- Output 2 HP (1.5 kW)
- Frequency 60 Hz
- Number of Poles 6
- L. R. Amperes 53.9-48.7/24.4 A
- Rated current 7.49-6.77/3.39 A
- Frame 184T
- Slip 5.00 %
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
