10837634 WEG AC Motors

Name: 10837634
Brand: WEG

Part#:10837634

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Discontinued

Product description

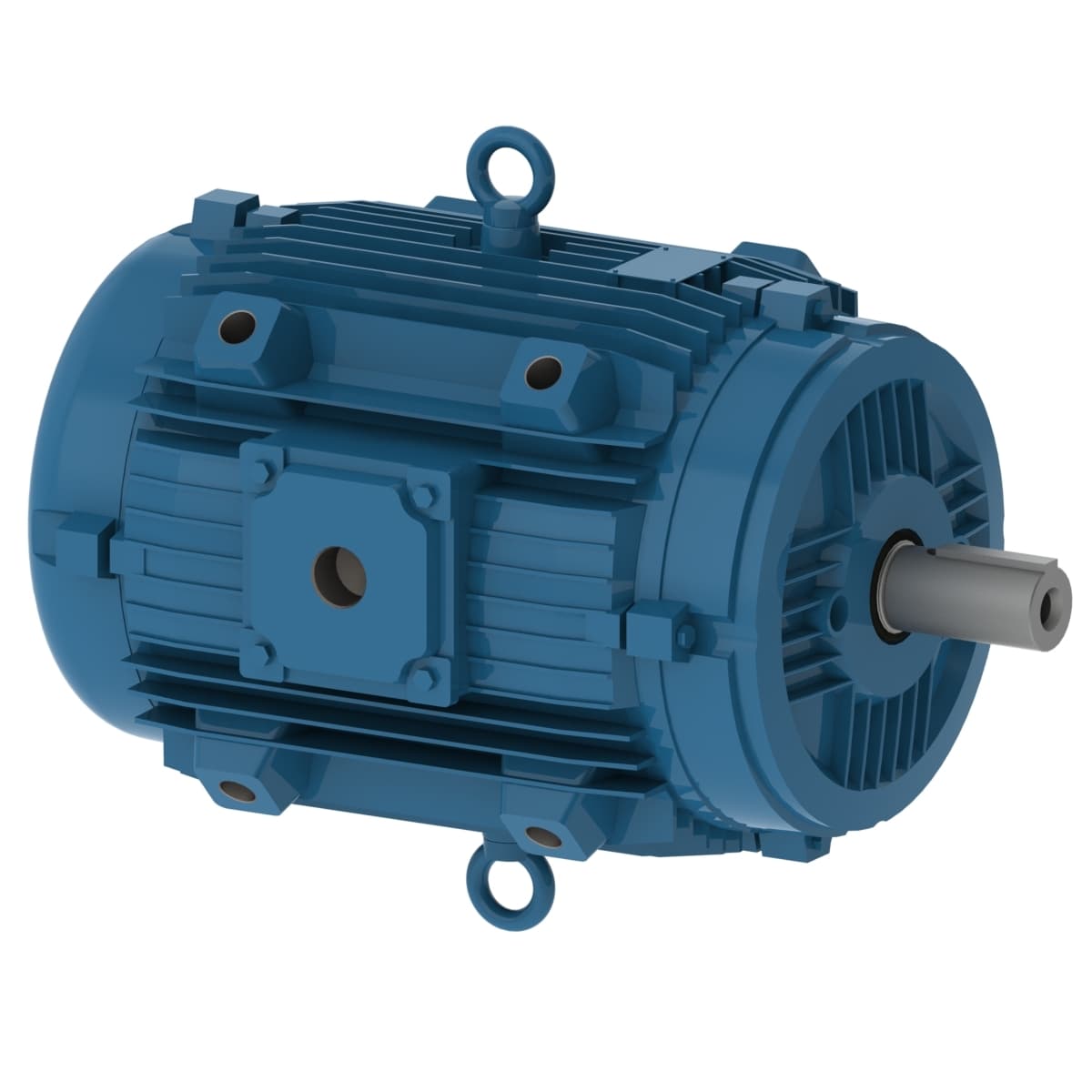

W21 High Efficiency 10 HP 4P 215Y 3Ph 230/460 V 60 Hz IC411 - TEFC - Pad mounted

Product Details

Number of Poles
4
L. R. Amperes
161/80.6 A
Standard
NEMA MG-1
Number of poles
4
Frame
215Y
Rated torque
29.8 ft.lb
Enclosure
IC411 - TEFC
Approx. weight³
151 lb
Slip
2.22 %
Design
B
Mounting
F-1
Terminal box¹
Left position
No load current
10.5/5.25 A
Temperature rise
105 K
Synchronous speed
1800 rpm
Material (FERT)
50006910
Moment of inertia (J)
1.25 sq.ft.lb
Duty Cycle
Cont.(S1)
Output rating
10 HP
Rated current
25.6/12.8 A

Locked rotor time

27s (cold) 15s (hot)

Ambient temperature

-20°C to +40°C

Voltage

230/460 V

Rated voltage

230/460 V

Insulation Class

Altitude

1000 m.a.s.l.

Frequency

60 Hz

Breakdown torque

250 %

Rotation¹

Both (CW and CCW)

Rated speed

1760 rpm

LRC

6.3x(Code H)

Service factor

1.25

Noise level²

58.0 dB(A)

Output

10 HP (7.5 kW)

Locked rotor torque

200 %

Starting Method

Direct On Line

Degree of Protection

IP55

Flange

Without

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
