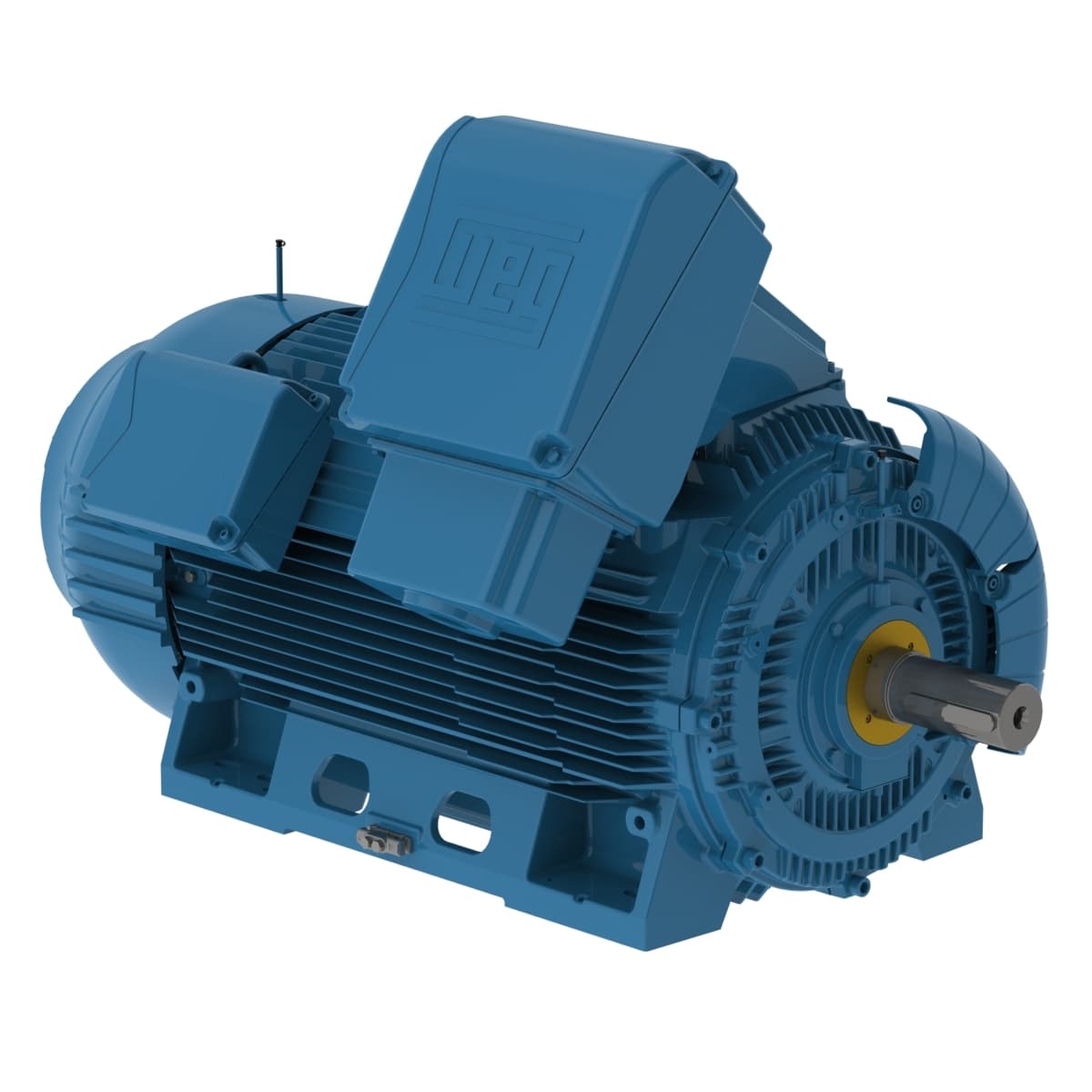

40036ET3X5009-W50MV WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 2300 V
- Output Rating 400 HP
- Rated Speed 3571 rpm
- Flange Type Without
- Rated current 89.1 A
- Service factor 1.00
- Number of poles 2
- Frame 5009/10
- Rated torque 588 ft.lb
- Starting Method Direct On Line
- Flange Without
- Rated speed 3571 rpm
- Locked rotor time 25s (cold) 14s (hot)
- Voltage 2300/4160 V
- Rated voltage 2300 V
- Moment of inertia (J) 93.7 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Slip 0.81 %
- LRC 6.5x(Code G)
- Design A
- Standard NEMA MG-1
- Number of Poles 2
- No load current 21.0 A
- Altitude 1000 m.a.s.l.
- Breakdown torque 210 %
- Output 400 HP (300 kW)
- Insulation Class F
- Duty Cycle Cont.(S1)
- Approx. weight³ 4238 lb
- Locked rotor torque 100 %
- Degree of Protection IP55
- Mounting F-1
- L. R. Amperes 579 A
- Temperature rise 80 K
- Rotation¹ CW
- Output rating 400 HP
- Frequency 60 Hz
- Enclosure IC411 - TEFC
- Noise level² 79.0 dB(A)
- Terminal box¹ Left position
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
