40036WT3X5010-W60MV1 WEG AC Motors
Product Details
- Output 300 HP (220 kW)
- No load current 24.0/13.8 A
- Slip 0.64 %
- LRC 7.5x(Code H)
- Rated speed 3577 rpm
- Breakdown torque 250 %
- Duty Cycle Cont.(S1)
- Voltage 2300/4000 V
- Output rating 400 HP
- Frequency 60 Hz
- Standard NEMA MG-1
- Service factor 1.15
- Temperature rise 80 K
- L. R. Amperes 516/296 A
- Rated torque 440 ft.lb
- Ambient temperature 0°C to +40°C
- Noise level² 85.0 dB(A)
- Starting Method VFD
- Number of Poles 2
- Moment of inertia (J) 60.3 sq.ft.lb
- Rotation¹ CW
- Frame 5010/11
- Locked rotor torque 80 %
- Degree of Protection IP24
- Approx. weight³ 4767 lb
- Rated voltage 2300/4000 V
- Locked rotor time 18s (cold) 10s (hot)
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated current 68.8/39.5 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Flange Without
- Number of poles 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
40036WT3X5010-W60MV1 Related Documents
Manufacturer warranty
40036WT3X5010-W60MV1 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

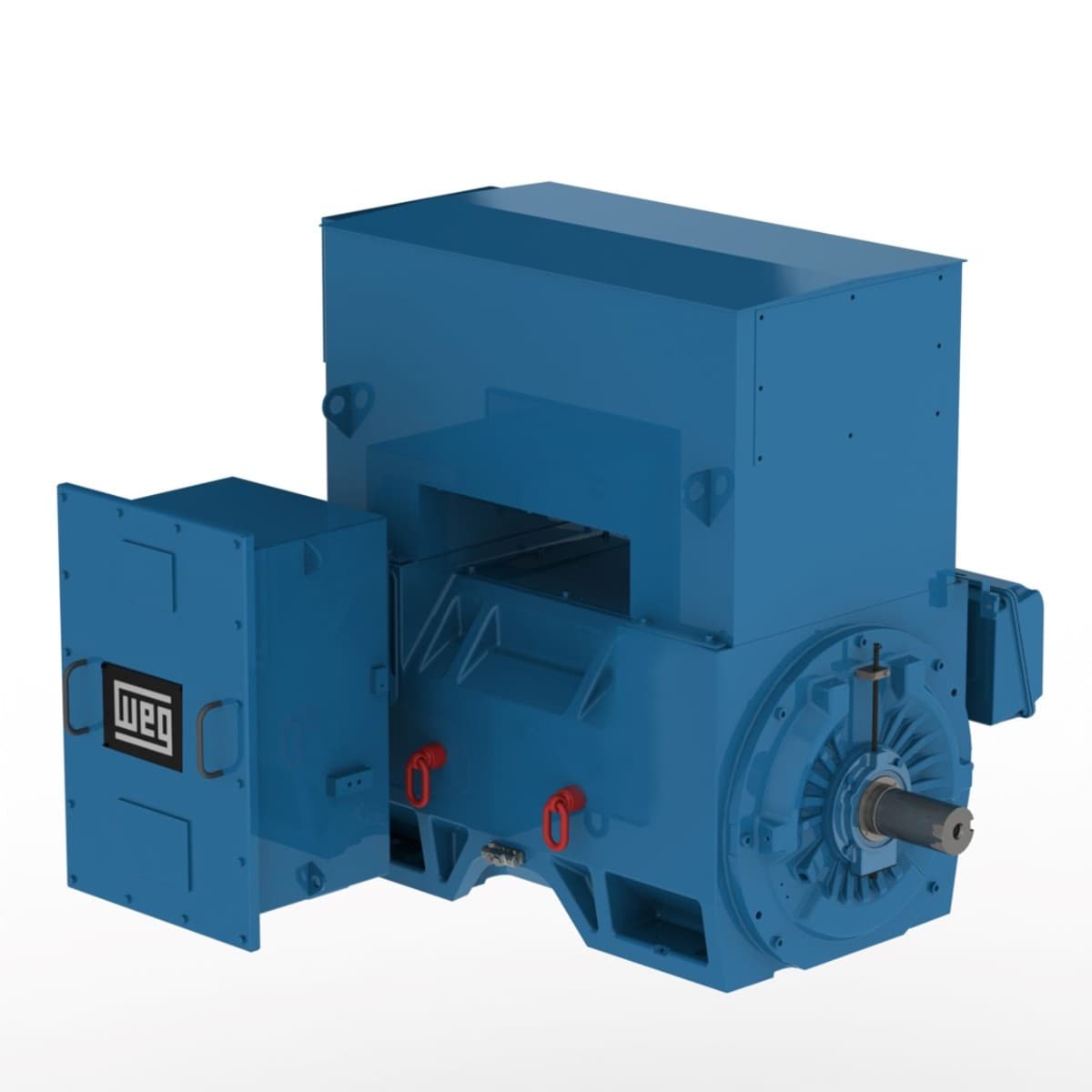

W60 Hazardous Area 400 HP 2P 5010/11 3Ph 2300/4000 V 60 Hz - Foot-mounted
