40036OT3G449TS-RFW40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 400 HP
- Rated Speed 3565 rpm
- Flange Type Without
- Rated current 442 A
- Locked rotor torque 170 %
- Degree of Protection IP23
- Flange Without
- Number of Poles 2
- Design A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frame 447/9TS
- Moment of inertia (J) 39.1 sq.ft.lb
- Starting Method Direct On Line
- Number of poles 2
- L. R. Amperes 2873 A
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Slip 0.97 %
- Temperature rise 80 K
- Approx. weight³ 2061 lb
- LRC 6.5x(Code G)
- No load current 100 A
- Noise level² 87.0 dB(A)
- Rated speed 3565 rpm
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Rated voltage 460 V
- Insulation Class F
- Enclosure IC01 - ODP
- Voltage 460 V
- Output 400 HP (300 kW)
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Rated torque 589 ft.lb
- Mounting F-1
- Output rating 400 HP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
40036OT3G449TS-RFW40 Related Documents
Manufacturer warranty
40036OT3G449TS-RFW40 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

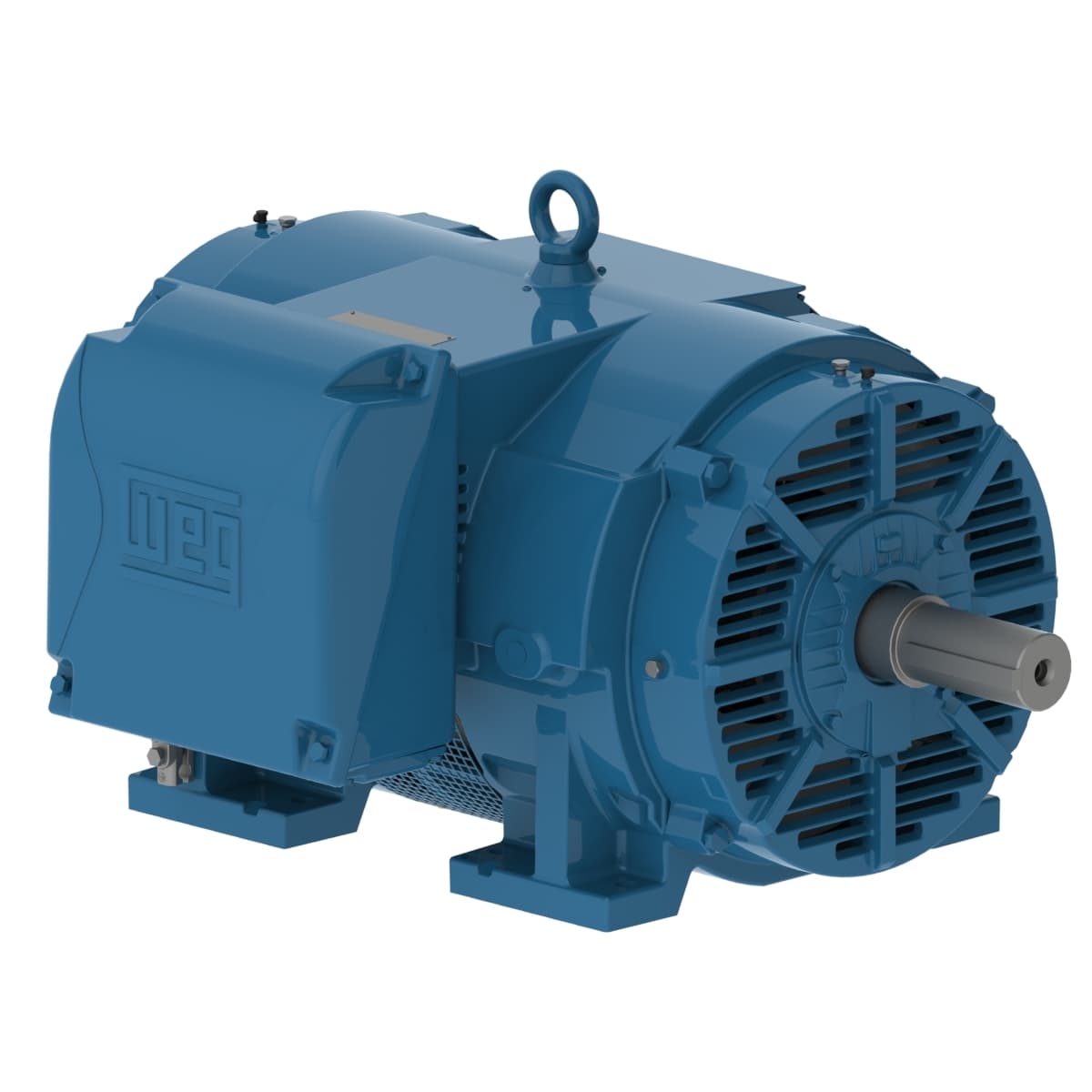

W40 NEMA Premium Efficiency 400 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
