IF5514 ifm Electronic Electronic Components

Name: IF5514
Brand: ifm Electronic

Part#:IF5514

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

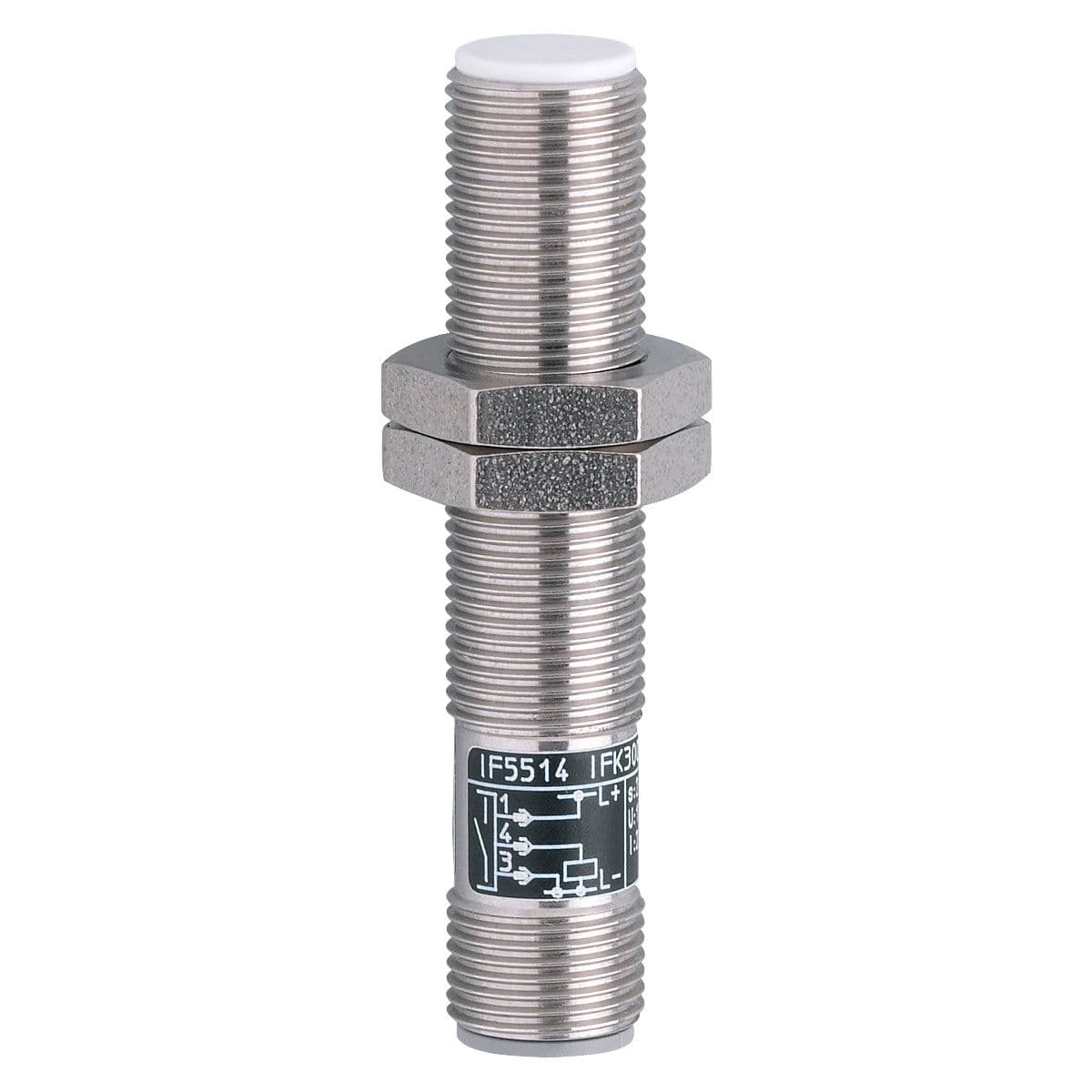

Inductive sensor, Wide operating temperature range, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 59, System: gold-plated contacts

Product Details

Protection class
II
Permanent current rating of switching output DC [mA]
200
Current consumption [mA]
< 15
Overload protection
yes
Reverse polarity protection
yes
Short-circuit protection
yes
Dimensions [mm]
M12 x 1 / L = 59
Electrical design
PNP
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Sensing range [mm]
2
Housing
Threaded type
Operating voltage [V]
10...36 DC
Short-time current rating of switching output [mA]
200
System
gold-plated contacts
Switching frequency DC [Hz]
200

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5514 Related Documents

PDF data sheet-1631071531496.pdf CAD_DXF_100_0409.ZIP-1631071531503.zip CAD_SAT_100_0409.ZIP-1631071531505.zip CAD_DWG_100_0409.ZIP-1631071531498.zip CAD_STP_100_0409.ZIP-1631071531500.zip
