IF5538 ifm Electronic Electronic Components

Name: IF5538
Brand: ifm Electronic

Part#:IF5538

Category:Electronic Components

Product Lifecycle:Active

Product description

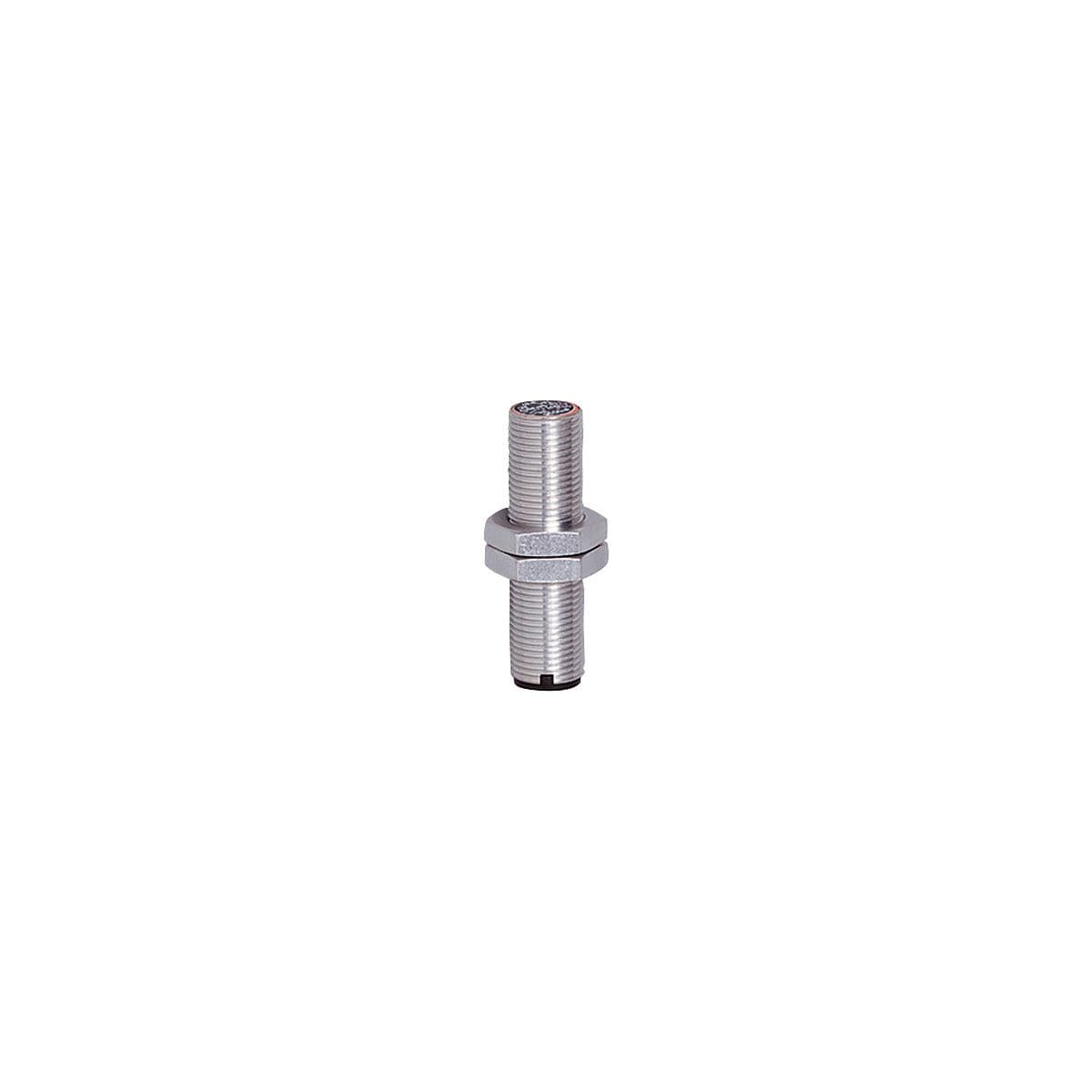

Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 43

Product Details

Output function
normally open
Overload protection
yes
Dimensions [mm]
M12 x 1 / L = 43
Permanent current rating of switching output DC [mA]
150
Reverse polarity protection
yes
Short-circuit protection
yes
Sensing range [mm]
2
Switching frequency DC [Hz]
1500
Max. voltage drop switching output DC [V]
2.5
Operating voltage [V]
10...36 DC
Current consumption [mA]
15; (24 V)
Electrical design
PNP
Housing
Threaded type
Protection class
II
Type of short-circuit protection
yes (non-latching)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5538 Related Documents

PDF data sheet-1631071281243.pdf CAD_STP_100_0026.ZIP-1631071281241.zip CAD_SAT_100_0026.ZIP-1631071281246.zip CAD_DWG_100_0026.ZIP-1631071281193.zip CAD_DXF_100_0026.ZIP-1631071281245.zip
