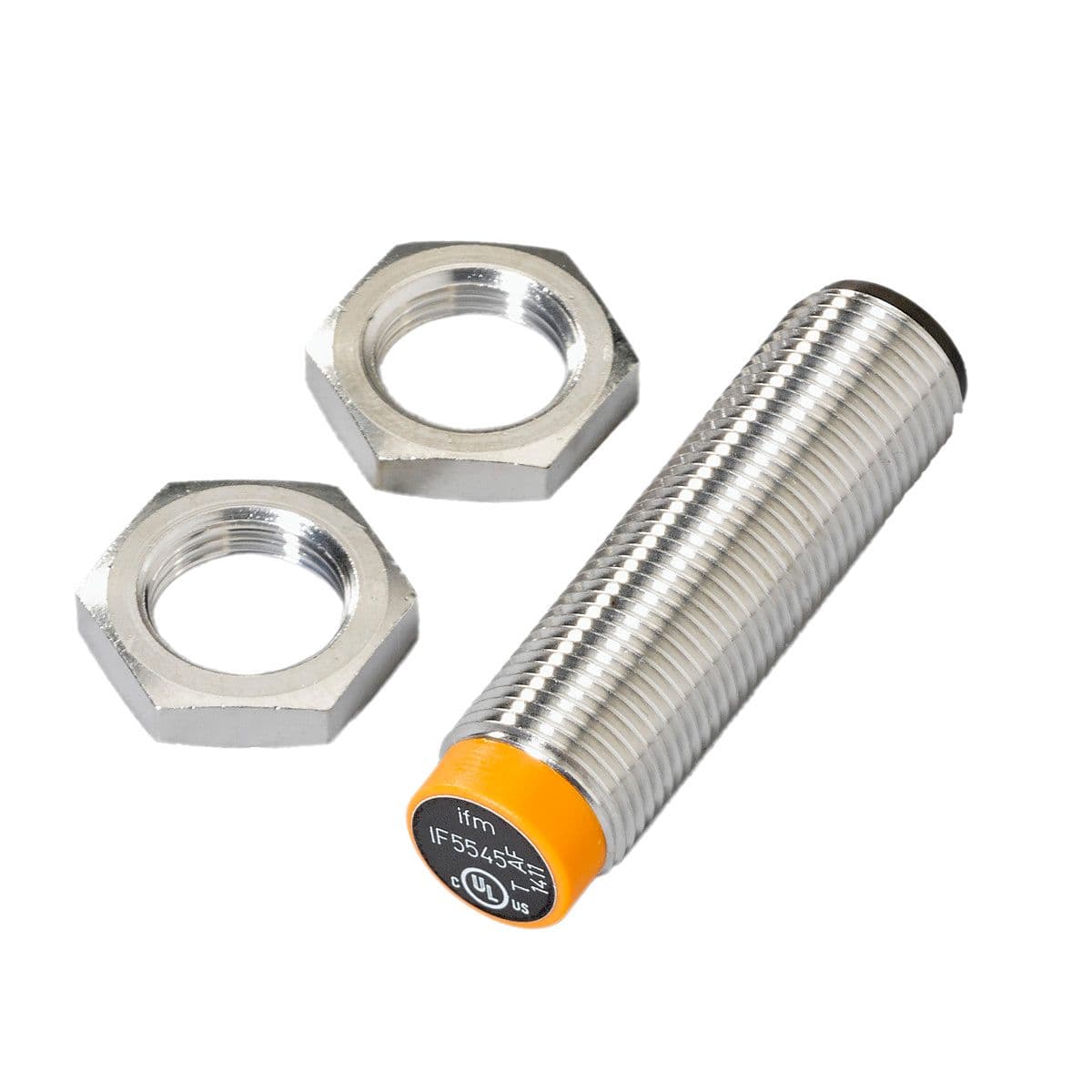

IF5545 ifm Electronic Electronic Components

Name: IF5545
Brand: ifm Electronic

Part#:IF5545

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 43

Product Details

Current consumption [mA]
15; (24 V)
Overload protection
yes
Permanent current rating of switching output DC [mA]
150
Max. voltage drop switching output DC [V]
2.5
Protection class
III
Dimensions [mm]
M12 x 1 / L = 43
Reverse polarity protection
yes
Operating voltage [V]
10...36 DC
Short-circuit protection
yes
Housing
Threaded type
Switching frequency DC [Hz]
1500
Output function
normally closed
Type of short-circuit protection
yes (non-latching)
Sensing range [mm]
4
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5545 Related Documents

PDF data sheet-1631071668217.pdf CAD_STP_100_0027.ZIP-1631071668219.zip CAD_DWG_100_0027.ZIP-1631071668212.zip CAD_DXF_100_0027.ZIP-1631071668215.zip CAD_SAT_100_0027.ZIP-1631071668214.zip

Manufacturer warranty

IF5545 ifm Electronic
