IFT244 ifm Electronic Electronic Components
Part#:IFT244
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

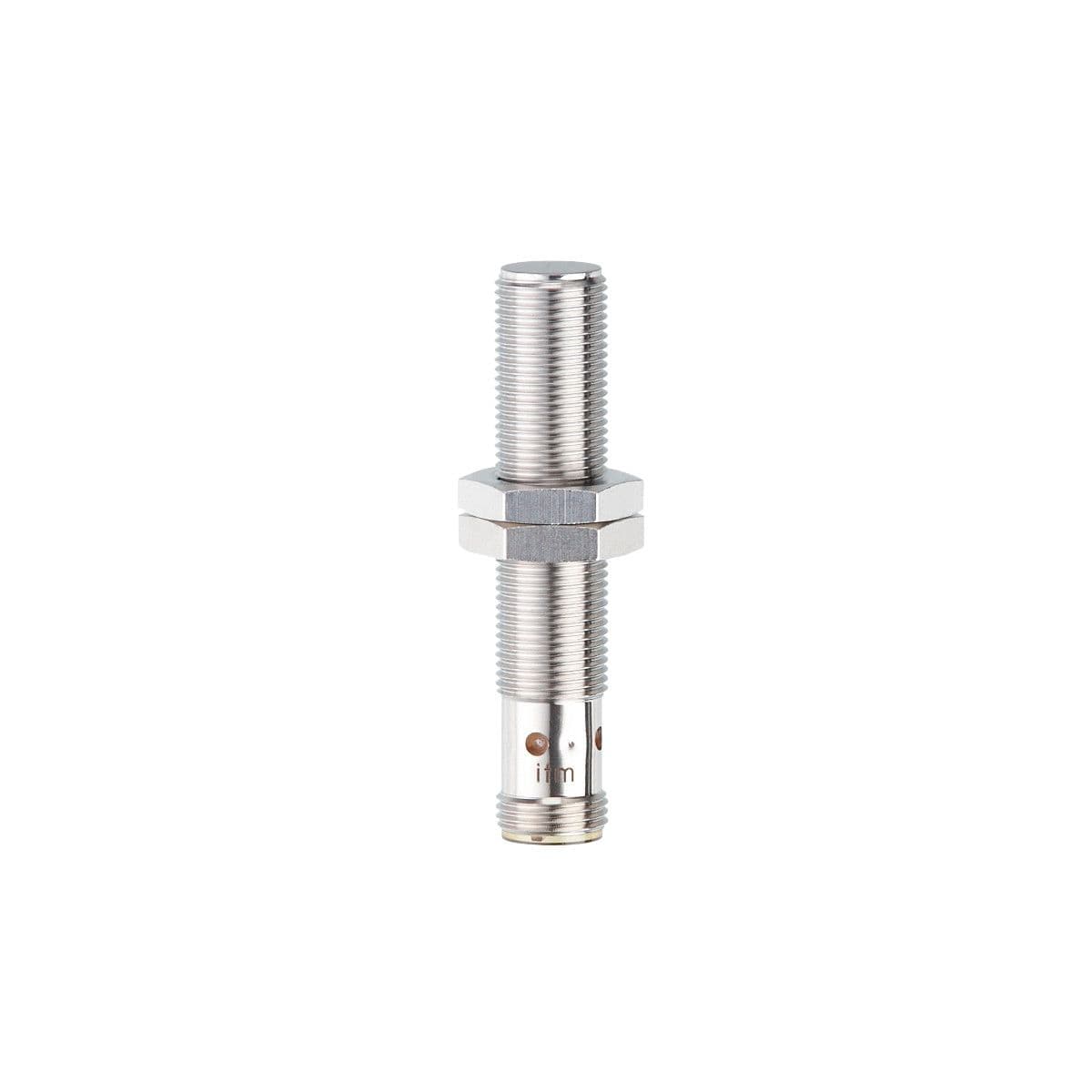

Inductive full-metal sensor, Robust full-metal stainless steel housing for use in the food and beverage industry, Electrical design: NPN, Output function: normally open, Sensing range [mm]: 3, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60, Sys
Product Details
- Switching frequency DC [Hz] 100
- Housing Threaded type
- Current consumption [mA] < 20
- Permanent current rating of switching output DC [mA] 100
- Note on pressure rating sensing face
- Overload protection yes
- Operating voltage [V] 10...30 DC
- Electrical design NPN
- Max. voltage drop switching output DC [V] 2.5
- Pressure rating [bar] 100
- Short-circuit protection yes
- Sensing range [mm] 3
- Protection class III
- Application Washdown applications
- Type of short-circuit protection yes (non-latching)
- System gold-plated contacts; Increased sensing range; Full-metal housing
- Output function normally open
- Reverse polarity protection yes
- Dimensions [mm] M12 x 1 / L = 60
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
