IFT257 ifm Electronic Electronic Components

Name: IFT257
Brand: ifm Electronic

Part#:IFT257

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

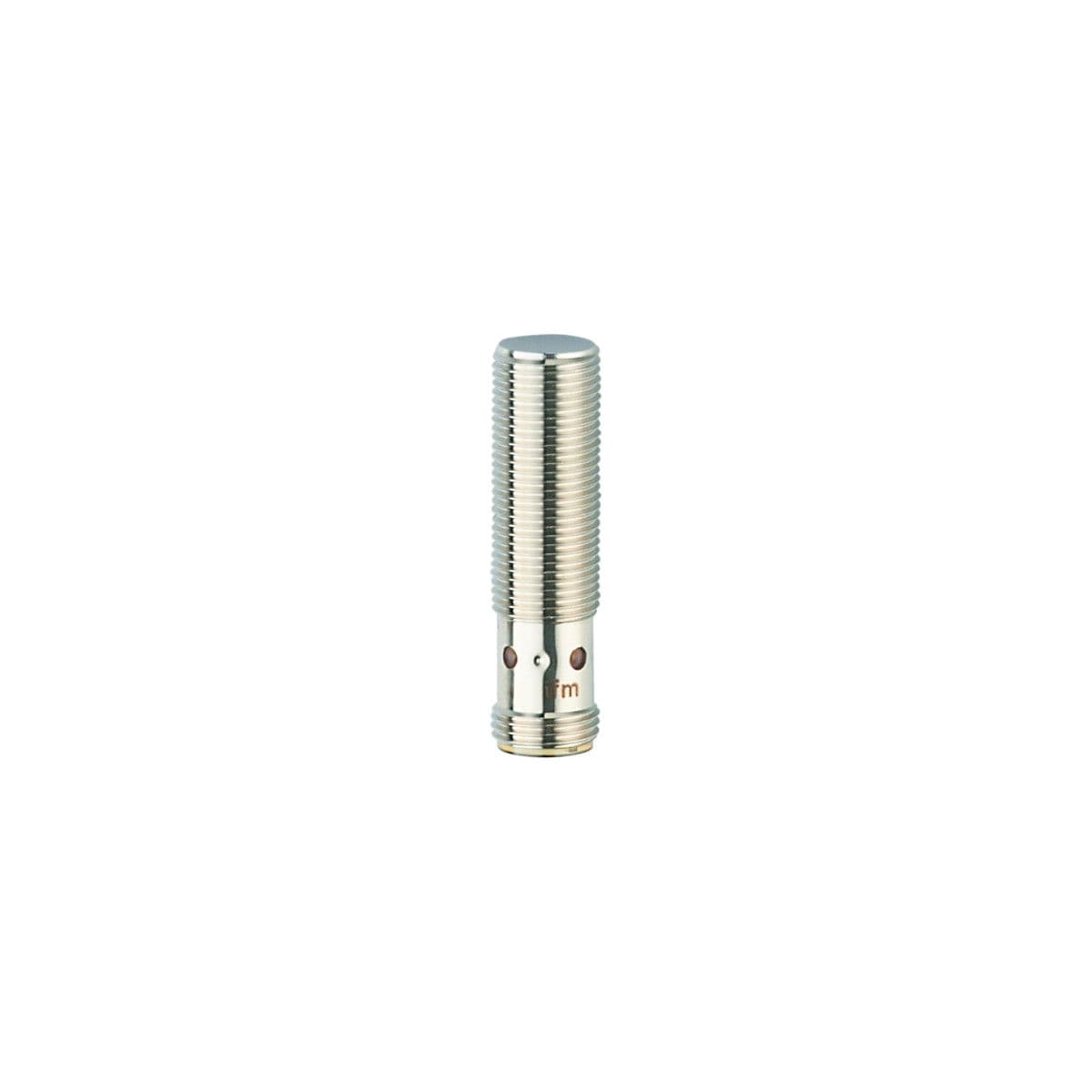

Inductive full-metal sensor, Metal sensing face for heavy duty, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 45, System: gold-plated contacts; Increased sensing range

Product Details

Note on pressure rating
sensing face
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Application
constant cleaning with aggressive cleaning agents; regular cleaning processes
Dimensions [mm]
M12 x 1 / L = 45
Current consumption [mA]
< 10
Electrical design
PNP
Short-circuit protection
yes
Switching frequency DC [Hz]
100
Sensing range [mm]
4
Protection class
III
Pressure rating [bar]
100
Operating voltage [V]
10...30 DC
Permanent current rating of switching output DC [mA]
100
Reverse polarity protection
yes
Housing
Threaded type
Overload protection
yes
System
gold-plated contacts; Increased sensing range; Full-metal housing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFT257 Related Documents

PDF data sheet-1631071290904.pdf CAD_DWG_100_0718.ZIP-1631071290895.zip CAD_DXF_100_0718.ZIP-1631071290933.zip CAD_STP_100_0718.ZIP-1631071290917.zip CAD_SAT_100_0718.ZIP-1631071290909.zip
