IFT259 ifm Electronic Electronic Components

Name: IFT259
Brand: ifm Electronic

Part#:IFT259

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

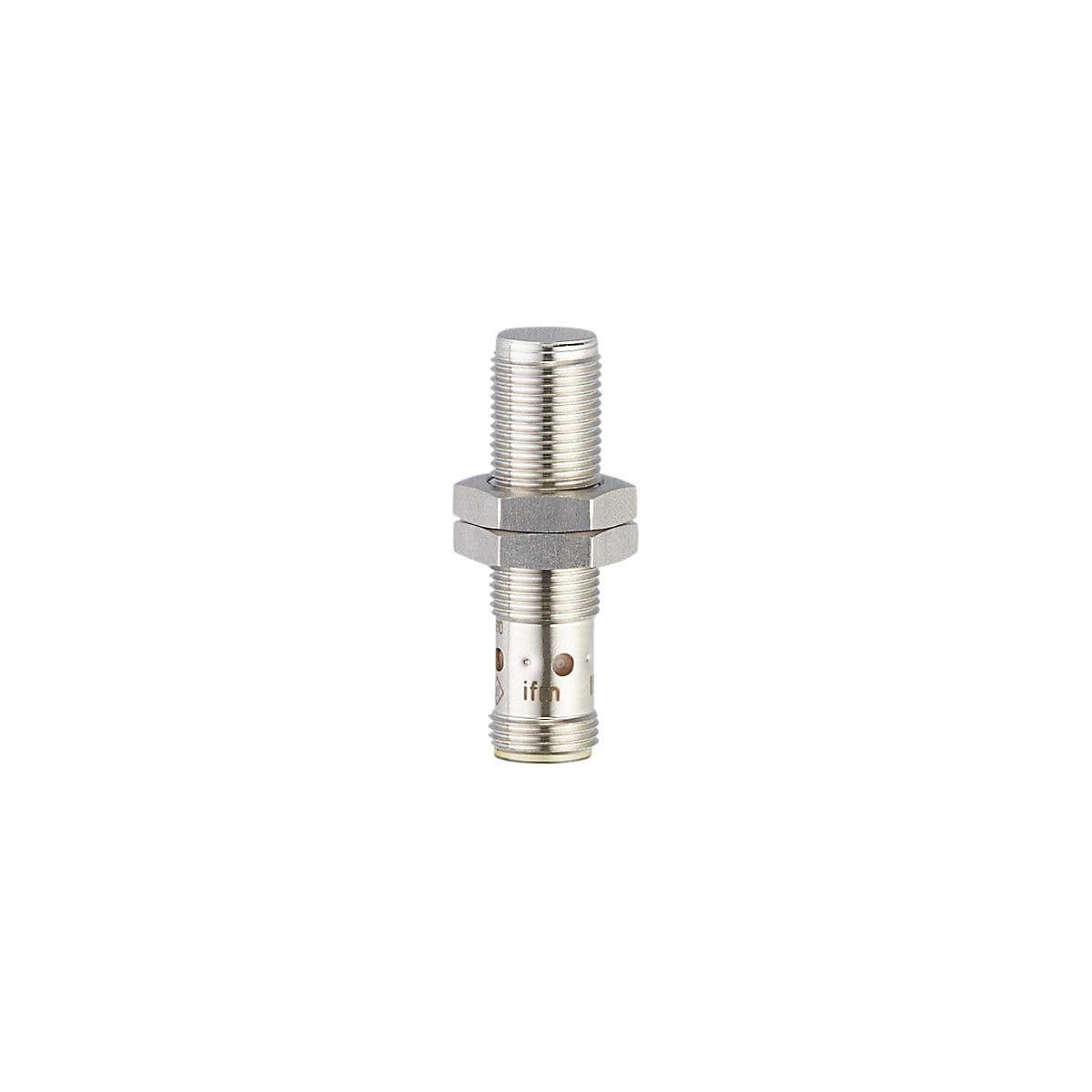

Inductive full-metal sensor, Robust, high-quality stainless steel design, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5, Dimensions [mm]: M12 x 1 / L = 45, System: gold-plated contacts; Increased sensing range; Full-metal h

Product Details

Dimensions [mm]
M12 x 1 / L = 45
Reverse polarity protection
yes
Note on pressure rating
sensing face
Electrical design
PNP
Permanent current rating of switching output DC [mA]
100
System
gold-plated contacts; Increased sensing range; Full-metal housing
Short-circuit protection
yes
Current consumption [mA]
20
Output function
normally open
Operating voltage [V]
10...30 DC
Protection class
III
Application
constant cleaning with aggressive cleaning agents; regular cleaning processes
Overload protection
yes
Sensing range [mm]
5
Switching frequency DC [Hz]
250
Pressure rating [bar]
100
Max. voltage drop switching output DC [V]
2.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
