IN5409 ifm Electronic Electronic Components
Part#:IN5409
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

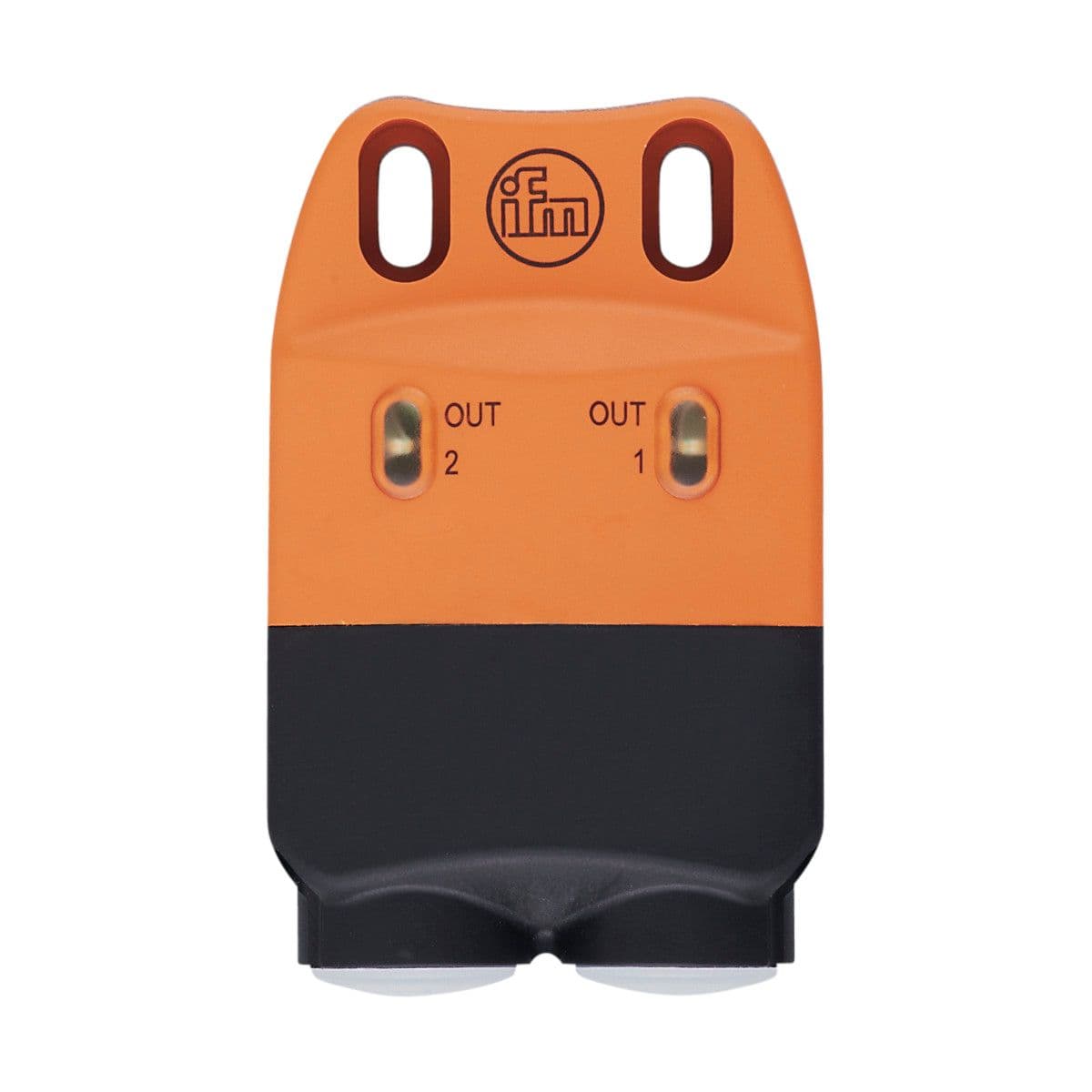

Inductive sensor, Electrical design: PNP, Output function: 2 x normally open, Sensing range [mm]: 4, Housing: rectangular, Dimensions [mm]: 33 x 60 x 92
Product Details
- Output function 2 x normally open
- Type of short-circuit protection yes (non-latching)
- Sensing range [mm] 4
- Valve control 24 (< 20 W)
- Operating voltage [V] 10...30 DC; (to PELV)
- Electrical design PNP
- Switching frequency DC [Hz] 500
- Protection class III
- Max. voltage drop switching output DC [V] 2.5
- Reverse polarity protection yes
- Current consumption [mA] 15; (a maximum of one output is switched)
- Short-circuit protection yes
- Dimensions [mm] 33 x 60 x 92
- Permanent current rating of switching output DC [mA] 100
- Housing rectangular
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IN5409 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IN5409 with other Electronic Components products
Output function
Type of short-circuit pro...
Sensing range [mm]
Valve control
Operating voltage [V]
Electrical design
Switching frequency DC [H...
Protection class
Max. voltage drop switchi...
Reverse polarity protecti...
Selected product
IN5409
ifm Electronic
Inductive sensor, Electrical design: PNP, Output function: 2 x normally open, Sensing range [mm]: 4,...
Output function2 x normally open
Type of short-circuit protectionyes (non-latching)
Sensing range [mm]4
Valve control24 (< 20 W)
Operating voltage [V]10...30 DC; (to PELV)
Electrical designPNP
Switching frequency DC [Hz]500
Protection classIII
Max. voltage drop switching output DC [V]2.5
Reverse polarity protectionyes
CKM-03
Mencom
Standard, CK series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Screw, Silver Plated Contac...
Output function-
Type of short-circuit protection-
Sensing range [mm]-
Valve control-
Operating voltage [V]-
Electrical design-
Switching frequency DC [Hz]-
Protection class-
Max. voltage drop switching output DC [V]-
Reverse polarity protection-
MIN-4FR-1-18
Mencom
MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...
Output function-
Type of short-circuit protection-
Sensing range [mm]-
Valve control-
Operating voltage [V]-
Electrical design-
Switching frequency DC [Hz]-
Protection class-
Max. voltage drop switching output DC [V]-
Reverse polarity protection-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Inductive sensor, Electrical design: PNP, Output function: 2 x normally open, Sensing range [mm]: 4, Housing: rectangular, Dimensions [mm]: 33 x 60 x 92
