IN5417 ifm Electronic Electronic Components
Part#:IN5417
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

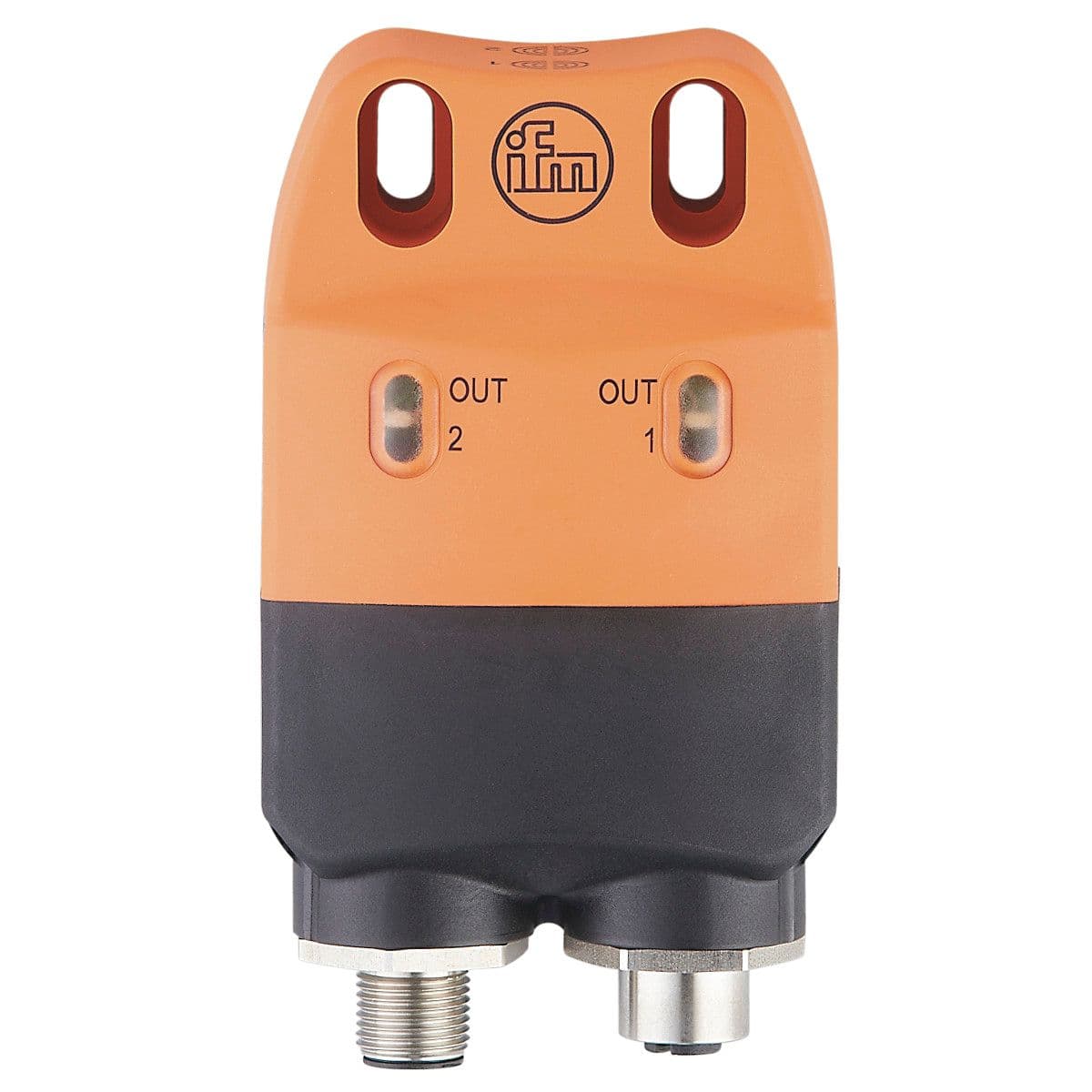

Inductive sensor, Electrical design: PNP, Output function: 2 x normally open, Sensing range [mm]: 4, Housing: rectangular, Dimensions [mm]: 33 x 60 x 92
Product Details
- Permanent current rating of switching output DC [mA] 100
- Operating voltage [V] 10...30 DC; (to PELV)
- Reverse polarity protection yes
- Short-circuit protection yes
- Dimensions [mm] 33 x 60 x 92
- Electrical design PNP
- Current consumption [mA] 15; (a maximum of one output is switched)
- Valve control 24 (< 20 W)
- Sensing range [mm] 4
- Overload protection yes
- Output function 2 x normally open
- Max. voltage drop switching output DC [V] 2.5
- Housing rectangular
- Protection class III
- Type of short-circuit protection yes (non-latching)
- Switching frequency DC [Hz] 500
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IN5417 ifm Electronic
