IN5415 ifm Electronic Electronic Components
Part#:IN5415
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

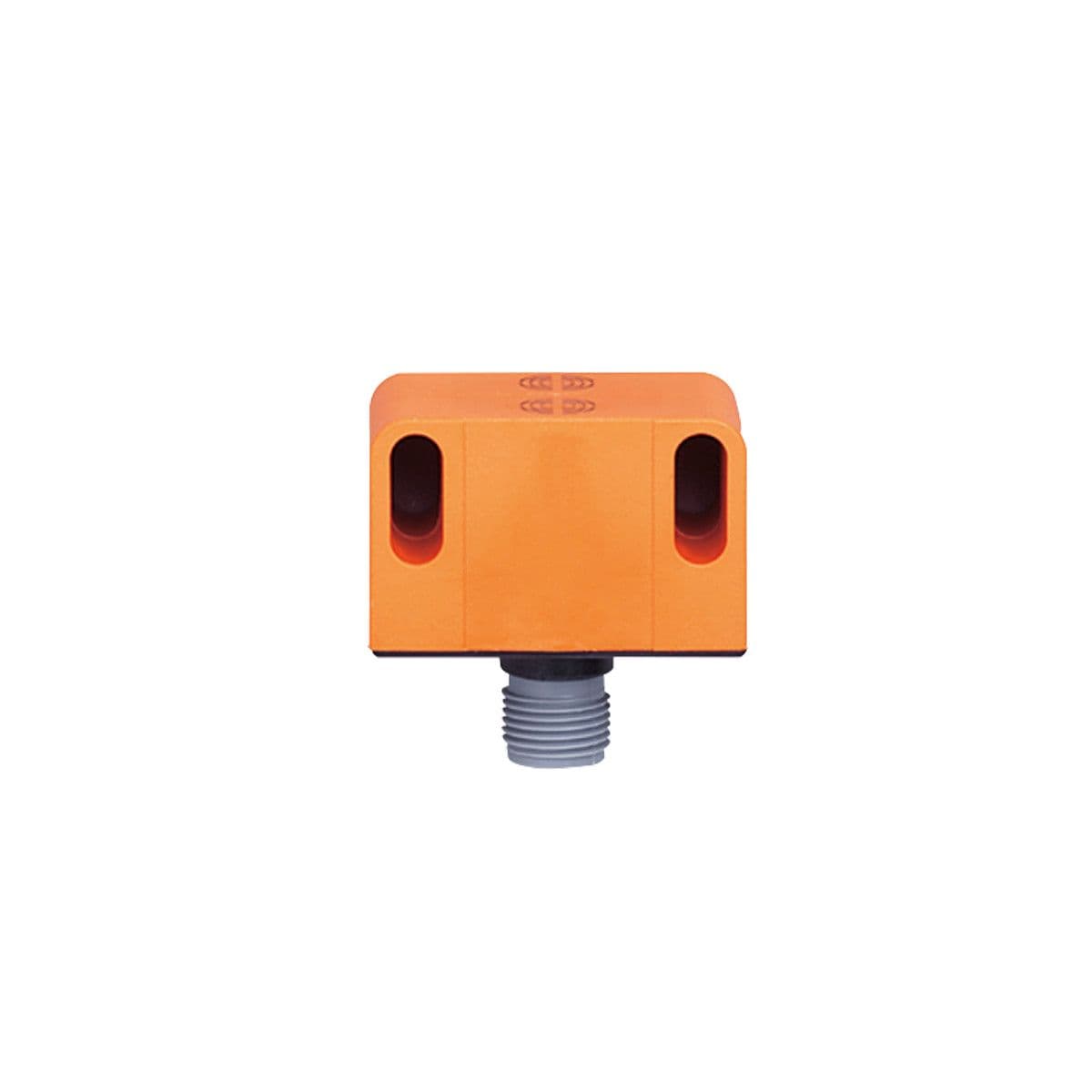

Dual inductive sensor for valve actuators, For monitoring valve positions, Electrical design: NPN, Output function: 2 x normally open, Sensing range [mm]: 4, Housing: rectangular, Dimensions [mm]: 40 x 26 x 26, System: gold-plated contacts
Product Details
- Dimensions [mm] 40 x 26 x 26
- Short-time current rating of switching output [mA] 250
- Housing rectangular
- Switching frequency DC [Hz] 1000
- Reverse polarity protection yes
- Electrical design NPN
- Overload protection yes
- System gold-plated contacts
- Operating voltage [V] 10...36 DC
- Short-circuit protection yes
- Protection class II
- Output function 2 x normally open
- Current consumption [mA] < 30
- Max. voltage drop switching output DC [V] 2.5
- Rated insulation voltage [V] 250
- Max. leakage current [mA] 0.5
- Sensing range [mm] 4
- Permanent current rating of switching output DC [mA] 250
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
