PA3509 ifm Electronic Electronic Components
Part#:PA3509
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

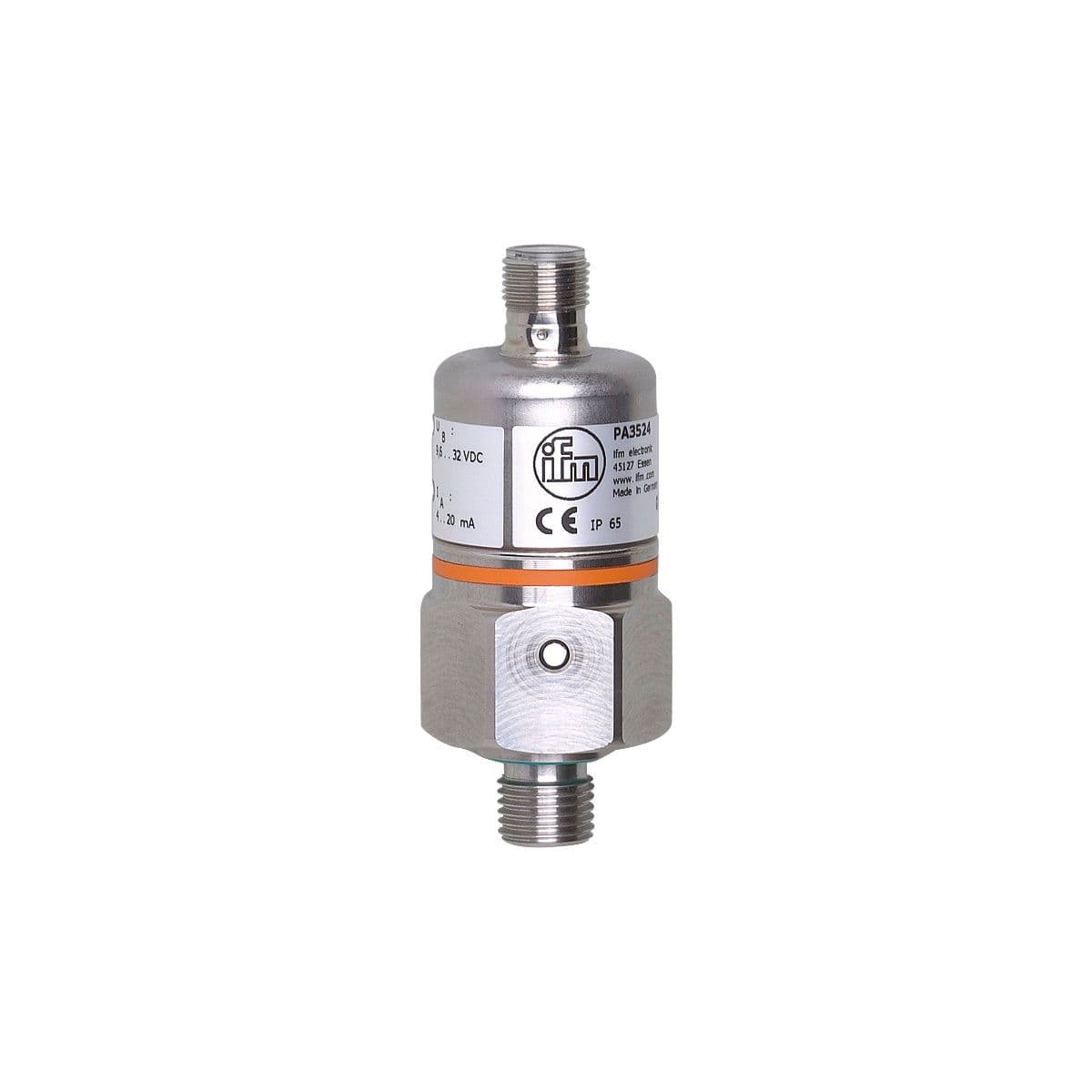

Pressure transmitter with ceramic measuring cell, Precise linear 4...20 mA output signal, Output signal: analog signal, Measuring range: -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa, Process connection: threaded connection G 1/4 external t
Product Details
- Overload protection yes
- Analog current output [mA] 4...20
- Max. load [Ω] 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
- Reverse polarity protection yes
- Number of analog outputs 1
- Total number of outputs 1
- Number of inputs and outputs Number of analog outputs: 1
- Operating voltage [V] 9.6...32 DC
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Protection class III
- Type of pressure relative pressure; vacuum
- Media liquids and gases
- Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
- Medium temperature [°C] -25...90; (on request: -40...90 °C)
- Pressure rating 10 bar 145 psi 1 Mpa
- Application for industrial applications
- Min. bursting pressure 30 bar 435 psi 3 MPa
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Output signal analog signal
- System gold-plated contacts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
