PA3526 ifm Electronic Electronic Components

Name: PA3526
Brand: ifm Electronic

Part#:PA3526

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

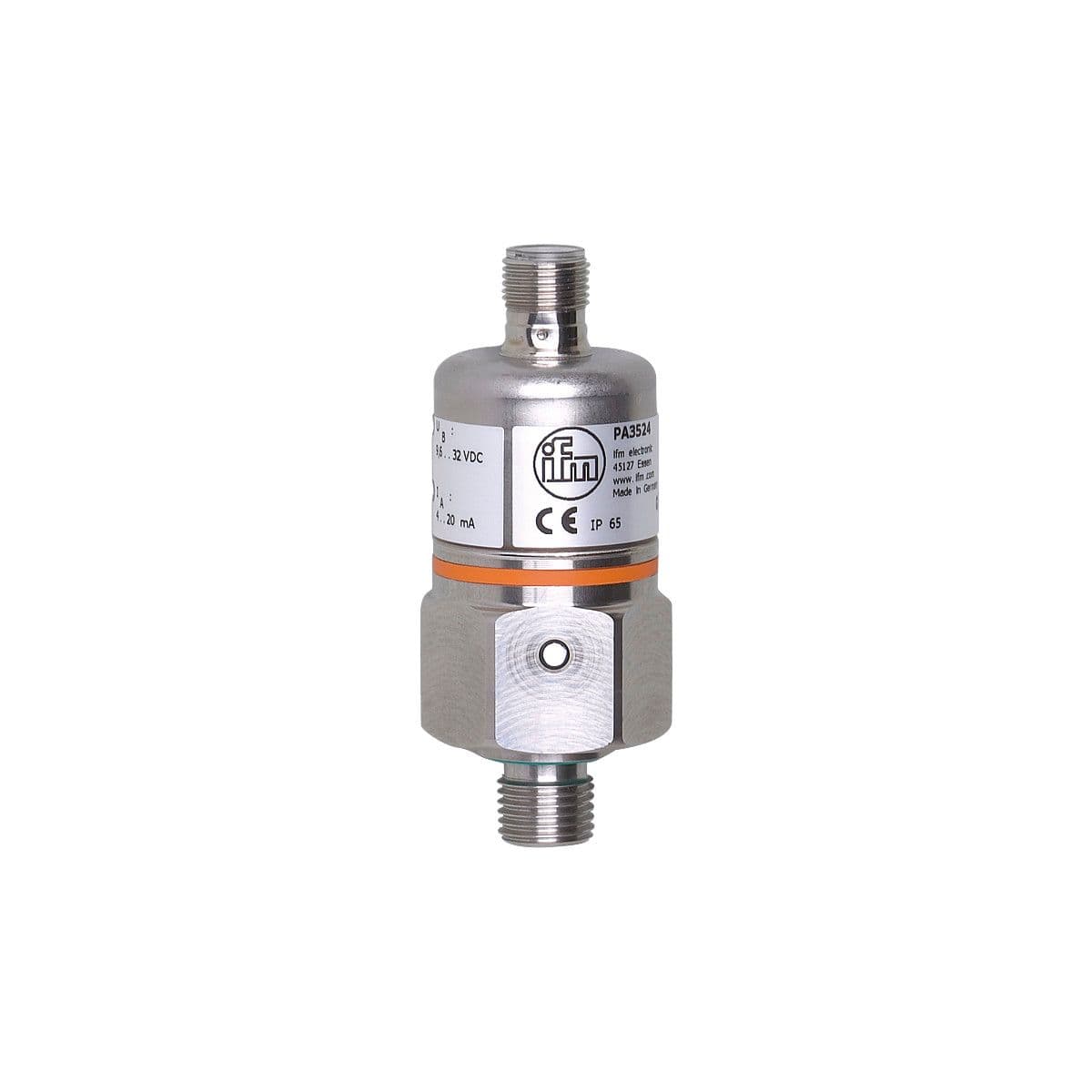

Pressure transmitter with ceramic measuring cell, Precise linear 4...20 mA output signal, Output signal: analog signal, Measuring range: 0...2.5 bar 0...2500 mbar 0...36 psi 0...250 kPa, Process connection: threaded connection G 1/4 external thread Intern

Product Details

Output signal
analog signal
Number of inputs and outputs
Number of analog outputs: 1
Measuring range
0...2.5 bar 0...2500 mbar 0...36 psi 0...250 kPa
Total number of outputs
1
Min. bursting pressure
50 bar 725 psi 5 MPa
Reverse polarity protection
yes
Pressure rating
20 bar 290 psi 2 Mpa
Overload protection
yes
Medium temperature [°C]
-25...90; (on request: -40...90 °C)
Media
liquids and gases
Min. insulation resistance [MΩ]
100; (500 V DC)
Max. load [Ω]
720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Process connection
threaded connection G 1/4 external thread Internal thread:M5
Operating voltage [V]
9.6...32 DC
Number of analog outputs
1
Application
for industrial applications
Type of pressure
relative pressure
Analog current output [mA]
4...20
System
gold-plated contacts
Protection class
III

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PA3526 Related Documents

PDF data sheet-1631073213858.pdf CAD_SAT_500_0071.ZIP-1631073213859.zip CAD_DWG_500_0071.ZIP-1631073213856.zip CAD_DXF_500_0071.ZIP-1631073213861.zip CAD_STP_500_0071.ZIP-1631073213862.zip

Manufacturer warranty
