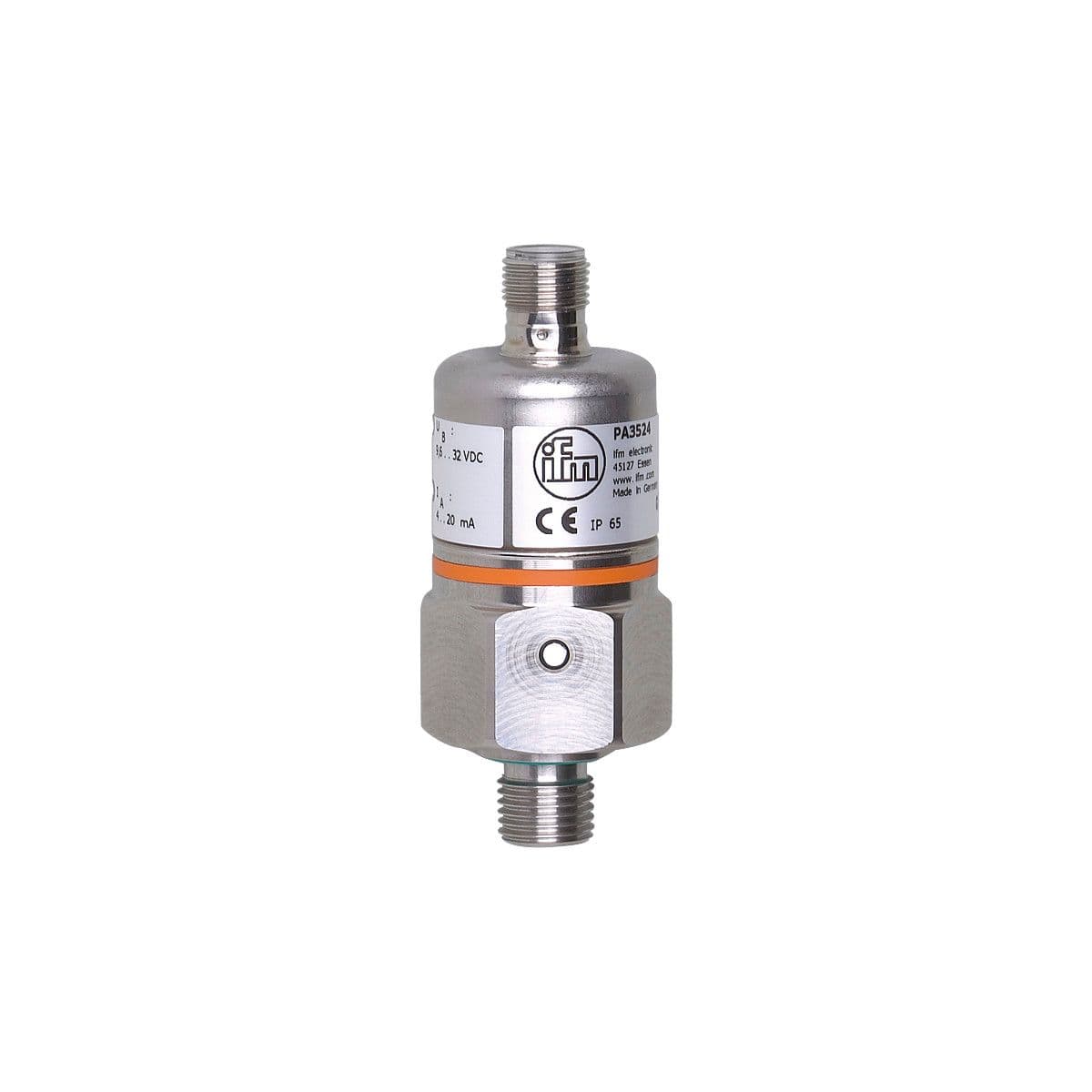

PA3524 ifm Electronic Electronic Components
Part#:PA3524
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter with ceramic measuring cell, Precise linear 4...20 mA output signal, Output signal: analog signal, Measuring range: 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa, Process connection: threaded connection G 1/4 external thread Internal
Product Details
- System gold-plated contacts
- Operating voltage [V] 9.6...32 DC
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Reverse polarity protection yes
- Media liquids and gases
- Measuring range 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Overload protection yes
- Application for industrial applications
- Number of inputs and outputs Number of analog outputs: 1
- Medium temperature [°C] -25...90; (on request: -40...90 °C)
- Min. bursting pressure 150 bar 2175 psi 15 MPa
- Total number of outputs 1
- Number of analog outputs 1
- Analog current output [mA] 4...20
- Max. load [Ω] 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
- Type of pressure relative pressure
- Output signal analog signal
- Protection class III
- Pressure rating 75 bar 1088 psi 7.5 Mpa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
