PA3521 ifm Electronic Electronic Components
Part#:PA3521
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

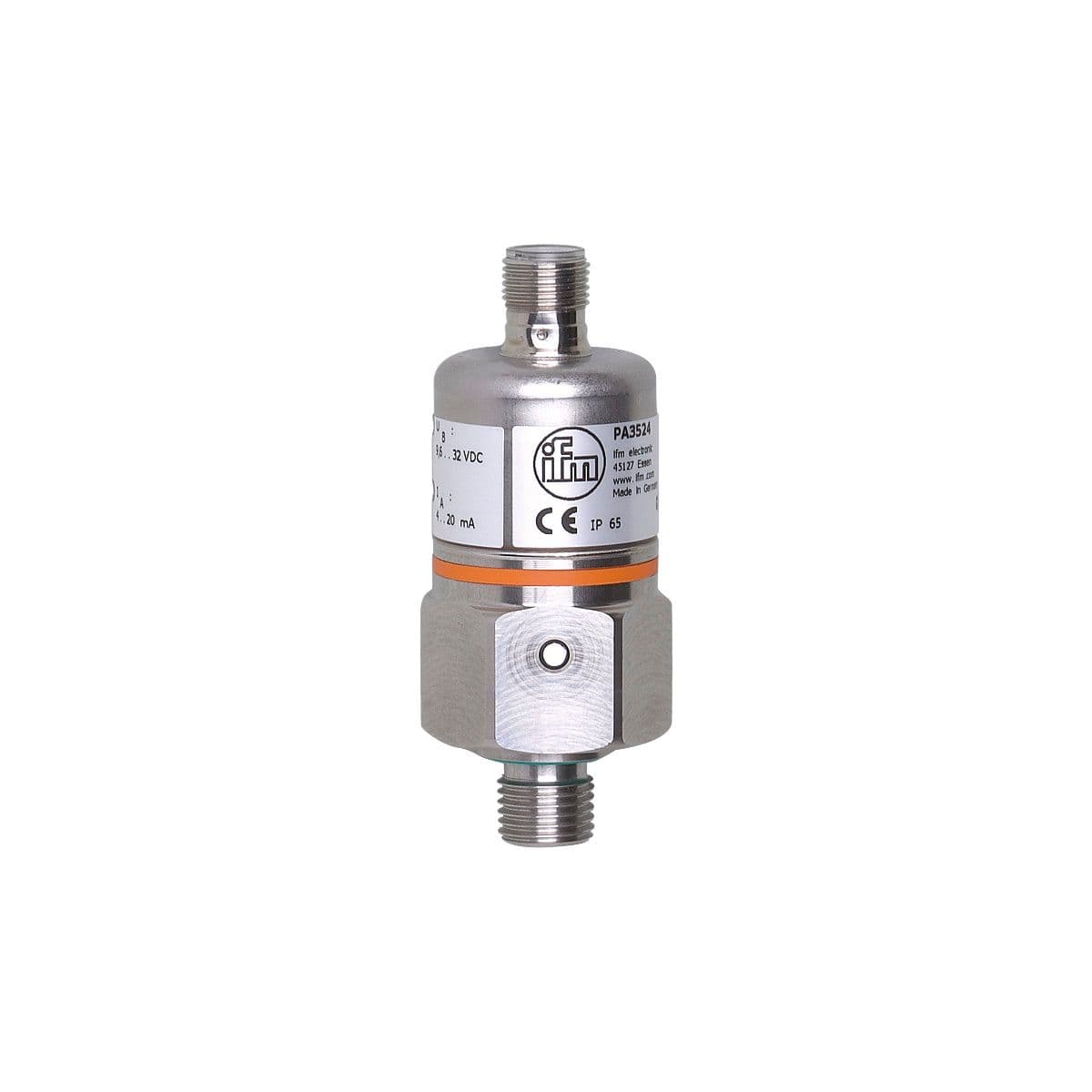

Pressure transmitter with ceramic measuring cell, Precise linear 4...20 mA output signal, Output signal: analog signal, Measuring range: 0...250 bar 0...3625 psi 0...25 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Product Details
- Reverse polarity protection yes
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Output signal analog signal
- Min. bursting pressure 850 bar 12300 psi 85 MPa
- Total number of outputs 1
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
- Number of inputs and outputs Number of analog outputs: 1
- Application for industrial applications
- Medium temperature [°C] -25...90; (on request: -40...90 °C)
- Protection class III
- Measuring range 0...250 bar 0...3625 psi 0...25 MPa
- Type of pressure relative pressure
- Analog current output [mA] 4...20
- Media Liquids
- Operating voltage [V] 9.6...32 DC
- Number of analog outputs 1
- Conditionally suitable for use in gases at pressures > 25 bar only on request
- Overload protection yes
- System gold-plated contacts
- Max. load [Ω] 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
- Pressure rating 400 bar 5800 psi 40 Mpa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
