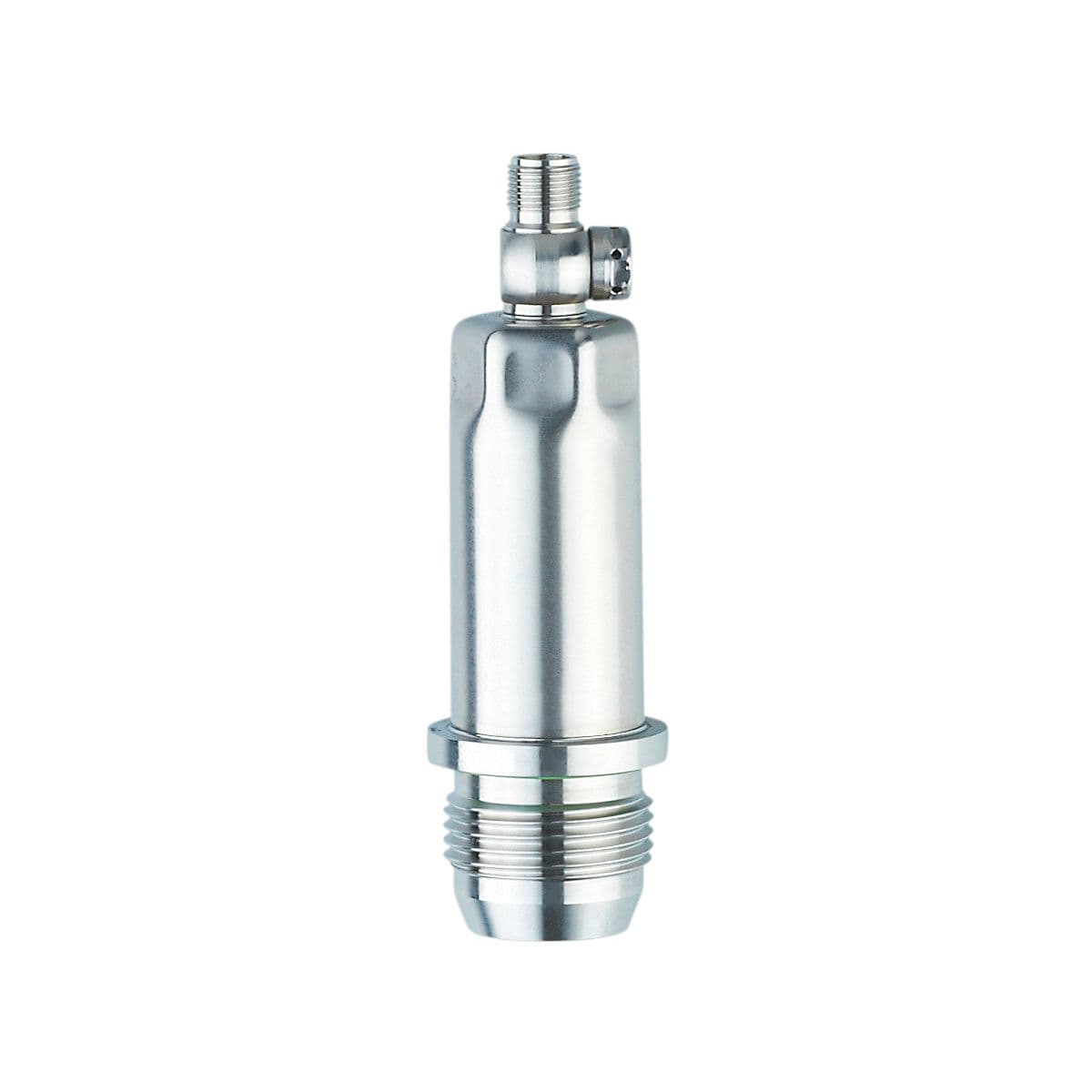

PM1605 ifm Electronic Electronic Components

Product Details

• Measuring element
  ceramic-capacitive pressure measuring cell
• Type of pressure
  relative pressure; vacuum
• Current consumption [mA]
  < 45
• Overload protection
  yes
• Short-circuit proof
  yes
• Measuring range
  -1...4 bar -14.5...58 psi -100...400 kPa
• Pressure rating
  30 bar 435 psi 3000 kPa
• Integrated watchdog
  yes
• Min. bursting pressure
  100 bar 1450 psi 10000 kPa
• Reverse polarity protection
  yes
• Output signal
  analog signal; IO-Link; (configurable)
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• No dead space
  yes
• Total number of outputs
  2
• Power-on delay time [s]
  0.5
• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Application
  flush mountable for the food and beverage industry
• Protection class
  III
Analog current output [mA]
4...20; (scalable)
Medium temperature [°C]
-25...125; (150 max. 1h)
MAWP (for applications according to CRN) [bar]
30
Vacuum resistance [mbar]
-1000
Operating voltage [V]
18...30 DC
Temperature monitoring
no
Process connection
threaded connection G 1 external thread sealing cone
Number of inputs and outputs
Number of analog outputs: 1
Number of analog outputs
1
