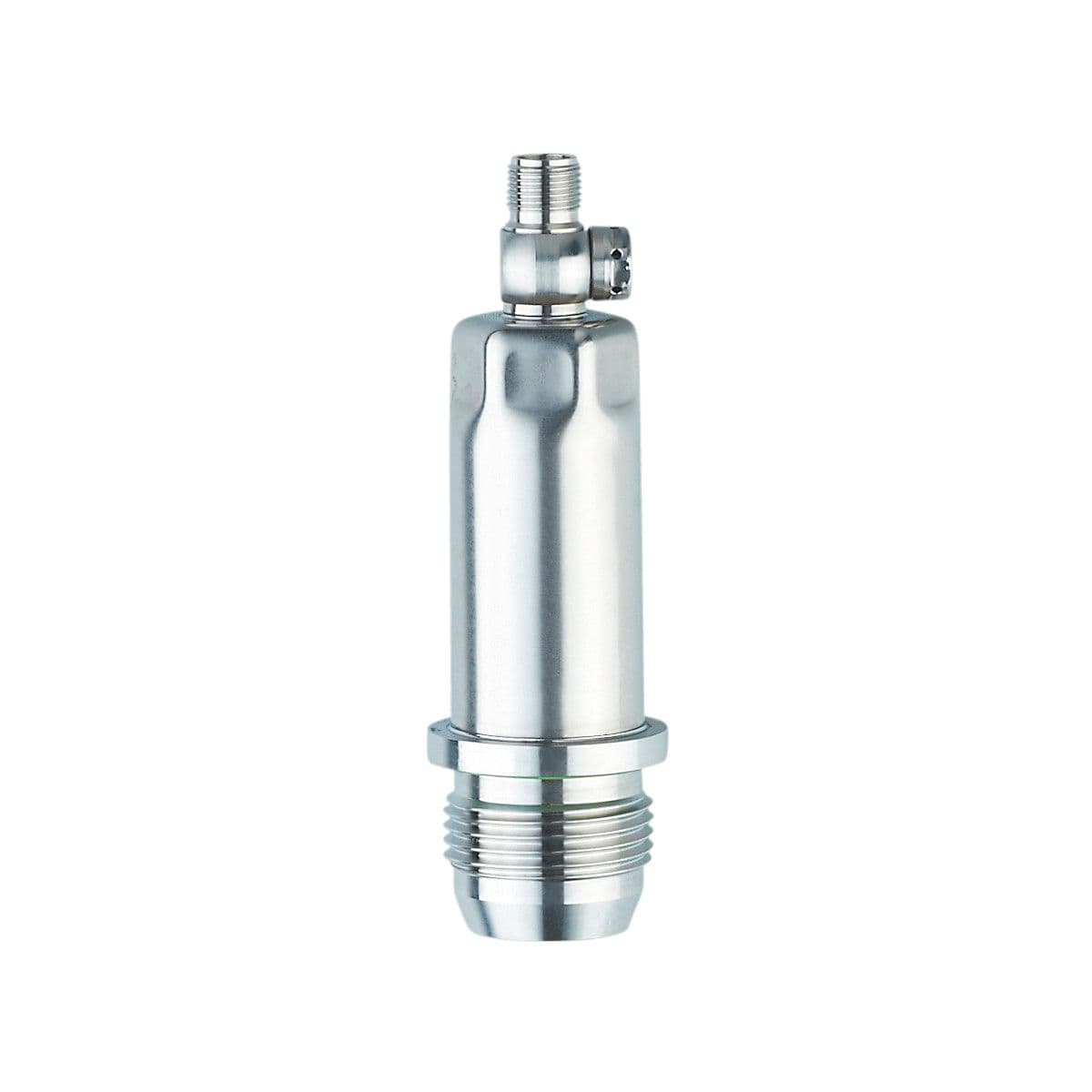

PM1614 ifm Electronic Electronic Components

Product Details

• Measuring range
  -1...16 bar -14.6...232 psi -0.1...1.6 MPa
• MAWP (for applications according to CRN) [bar]
  55
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Operating voltage [V]
  18...30 DC
• Measuring element
  ceramic-capacitive pressure measuring cell
• No dead space
  yes
• Overload protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Application
  flush mountable for the food and beverage industry
• Min. bursting pressure
  250 bar 3625 psi 25 MPa
• Protection class
  III
• Medium temperature [°C]
  -25...125; (150 max. 1h)
• Vacuum resistance [mbar]
  -1000
• Reverse polarity protection
  yes
• Output signal
  analog signal; IO-Link; (configurable)
• Number of analog outputs
  1
• System
  gold-plated contacts
• Process connection
  threaded connection G 1 external thread sealing cone
• Pressure rating
  75 bar 1085 psi 7.5 Mpa
Integrated watchdog
yes
Max. load [Ω]
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Power-on delay time [s]
0.5
Analog current output [mA]
4...20; (scalable)
Temperature monitoring
no
Type of pressure
relative pressure; vacuum
Current consumption [mA]
< 45
Short-circuit proof
yes
Number of inputs and outputs
Number of analog outputs: 1
