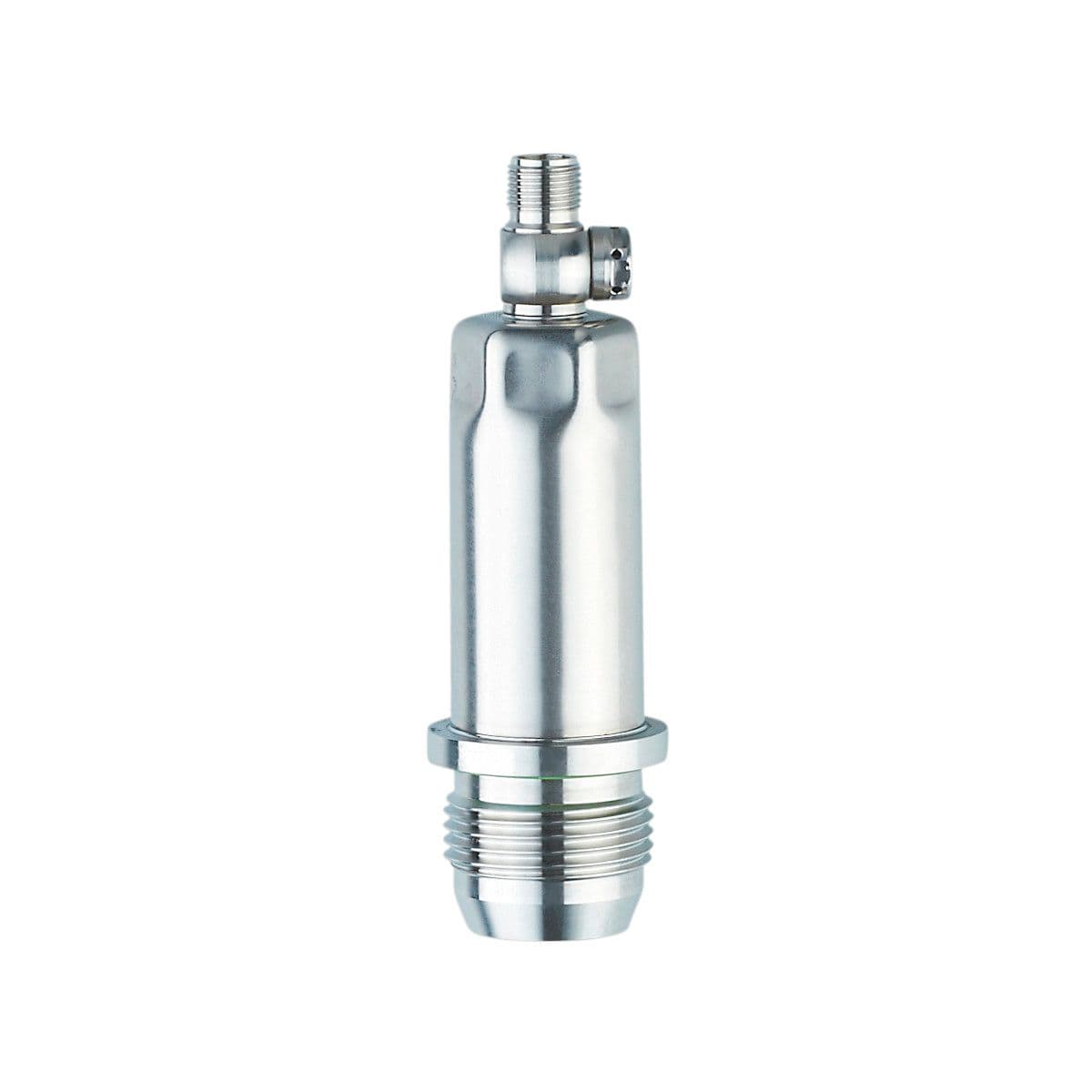

PM1606 ifm Electronic Electronic Components

Product Details

• Protection class
  III
• Application
  flush mountable for the food and beverage industry
• Operating voltage [V]
  18...30 DC
• Measuring element
  ceramic-capacitive pressure measuring cell
• Total number of outputs
  2
• System
  gold-plated contacts
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Process connection
  threaded connection G 1 external thread sealing cone
• Pressure rating
  20000 mbar 290 psi 2000 kPa
• Vacuum resistance [mbar]
  -1000
• Overload protection
  yes
• Temperature monitoring
  no
• MAWP (for applications according to CRN) [bar]
  20
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Output signal
  analog signal; IO-Link; (configurable)
• Reverse polarity protection
  yes
• Measuring range
  -0.125...2.5 bar -125...2500 mbar -1.82...36.26 psi -12.5...250 kPa
• No dead space
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of inputs and outputs
  Number of analog outputs: 1
Power-on delay time [s]
0.5
Short-circuit proof
yes
Type of pressure
relative pressure
Medium temperature [°C]
-25...125; (150 max. 1h)
Integrated watchdog
yes
Number of analog outputs
1
Current consumption [mA]
< 45
Min. bursting pressure
50000 mbar 725 psi 5000 kPa
Analog current output [mA]
4...20; (scalable)
