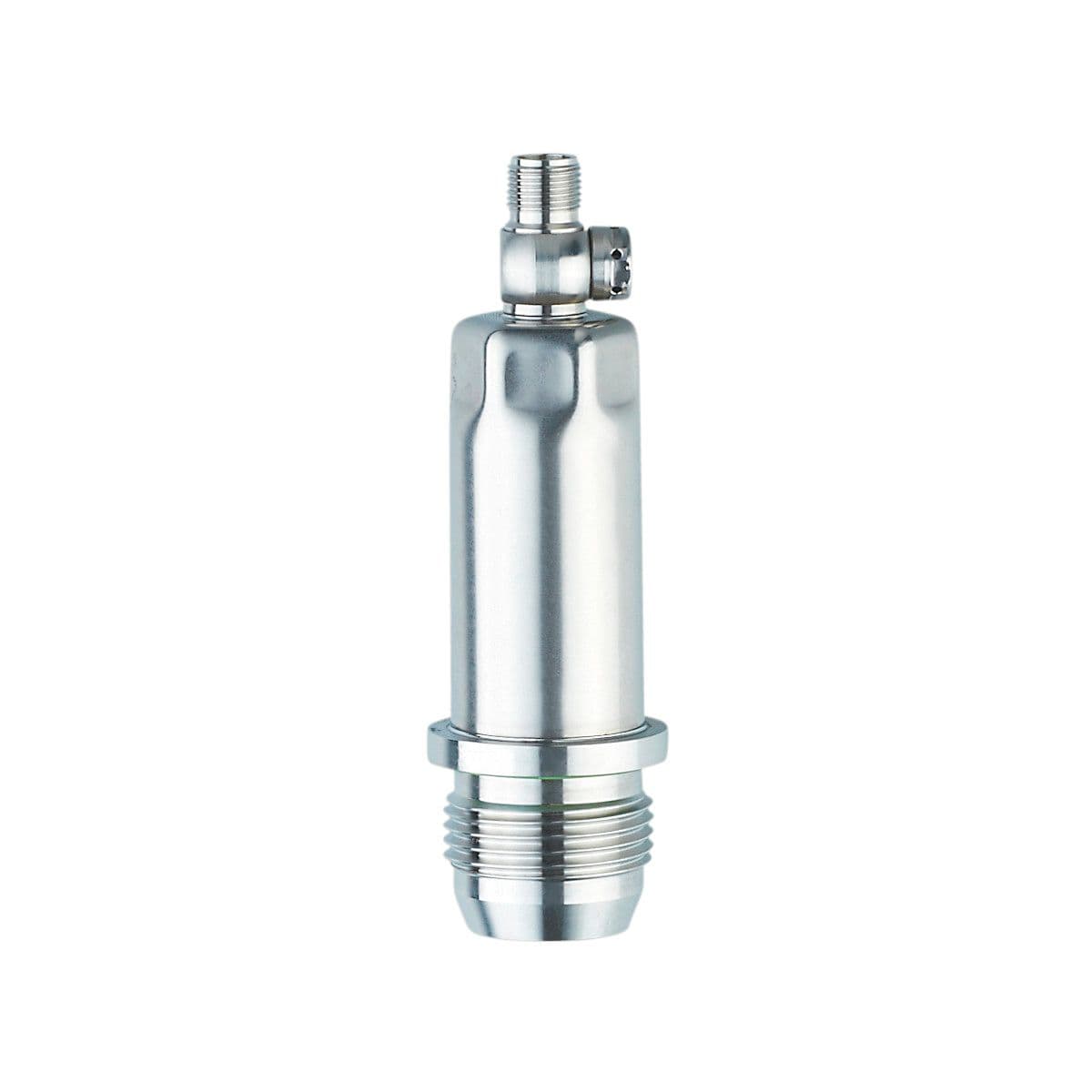

PM1689 ifm Electronic Electronic Components

Product Details

• Analog current output [mA]
  4...20; (scalable)
• Number of analog outputs
  1
• Process connection
  threaded connection G 1 external thread sealing cone
• Short-circuit proof
  yes
• Total number of outputs
  2
• Overload protection
  yes
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Operating voltage [V]
  18...30 DC
• Number of inputs and outputs
  Number of analog outputs: 1
• Measuring element
  ceramic-capacitive pressure measuring cell
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Current consumption [mA]
  < 45
• Measuring range
  -0.005...0.1 bar -5...100 mbar -0.073...1.45 psi -0.5...10 kPa
• Protection class
  III
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Type of pressure
  relative pressure
• Temperature monitoring
  no
• No dead space
  yes
• Output signal
  analog signal; IO-Link; (configurable)
• Vacuum resistance [mbar]
  -1000
Integrated watchdog
yes
Min. insulation resistance [MΩ]
100; (500 V DC)
Medium temperature [°C]
-25...125; (150 max. 1h)
System
gold-plated contacts
MAWP (for applications according to CRN) [bar]
4
Application
flush mountable for the food and beverage industry
Reverse polarity protection
yes
Pressure rating
4000 mbar 58 psi 400 kPa
Power-on delay time [s]
0.5
