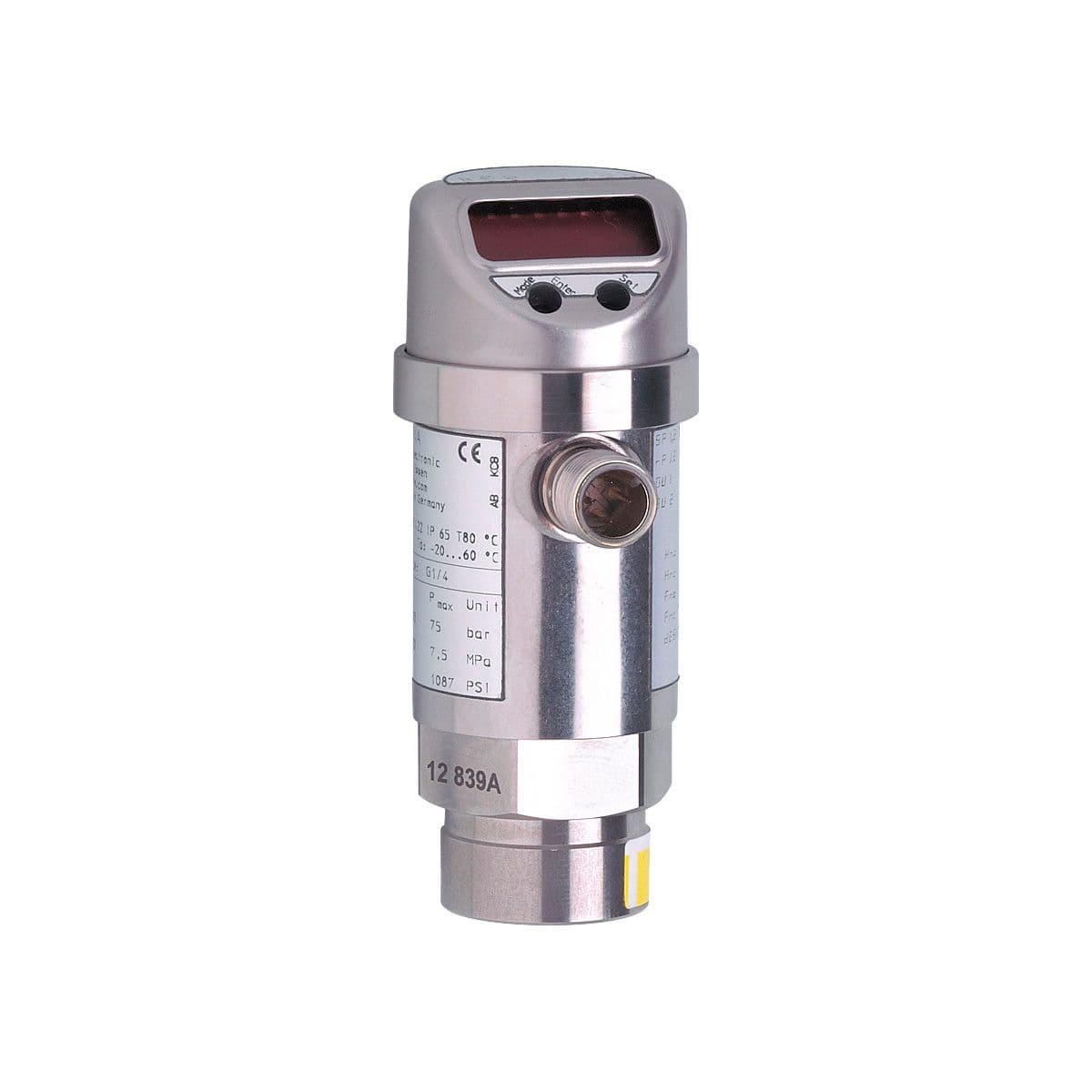

PN004A ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Permanent current rating of switching output DC [mA]
  250
• Type of pressure
  relative pressure
• Number of digital outputs
  1
• Max. load [Ω]
  500
• Pressure rating
  75 bar 1087 psi 7.5 Mpa
• Analog current output [mA]
  4...20
• Reverse polarity protection
  yes
• Electrical design
  PNP
• Output signal
  switching signal; analog signal; (configurable)
• Type of short-circuit protection
  yes (non-latching)
• Application
  for industrial applications
• Power-on delay time [s]
  0.3
• Max. voltage drop switching output DC [V]
  2
• Process connection
  threaded connection G 1/4 Internal thread
• Overvoltage protection
  yes; (< 40 V)
• Output function
  normally open / closed; (configurable)
• Analog voltage output [V]
  0...10
• Measuring range
  -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
Protection class
III
Switching frequency DC [Hz]
< 170
System
gold-plated contacts
Integrated watchdog
yes
Min. load resistance [Ω]
2000
Medium temperature [°C]
-20...60
Min. bursting pressure
150 bar 2175 psi 15 MPa
Current consumption [mA]
< 50
Total number of outputs
2
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Number of analog outputs
1
Short-circuit protection
yes
