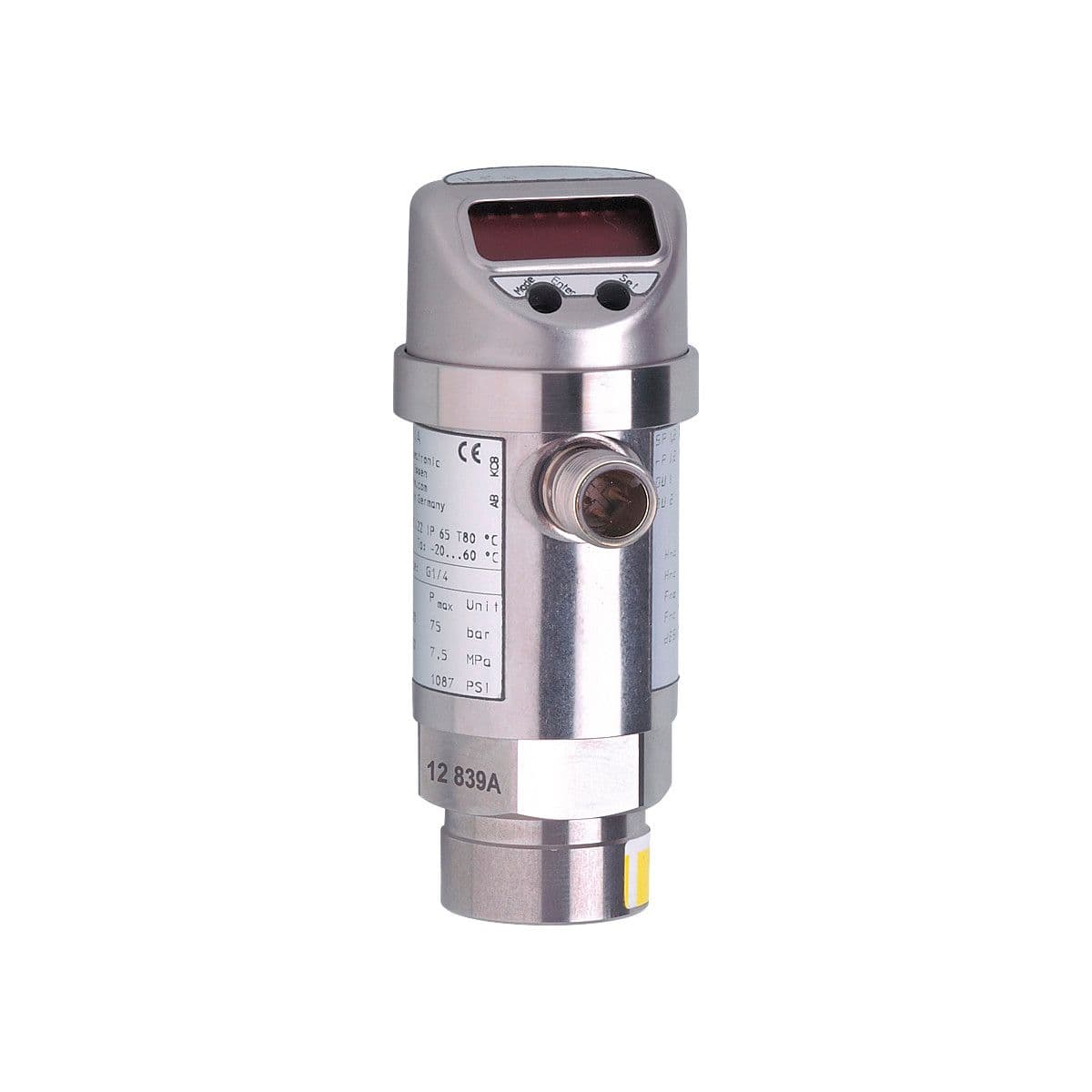

PN006A ifm Electronic Electronic Components

Product Details

• Application
  for industrial applications
• Protection class
  III
• Electrical design
  PNP
• Analog voltage output [V]
  0...10
• Output signal
  switching signal; analog signal; (configurable)
• Total number of outputs
  2
• Max. load [Ω]
  500
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Process connection
  threaded connection G 1/4 Internal thread
• Pressure rating
  20 bar 290 psi 2000 kPa
• Number of digital outputs
  1
• Min. load resistance [Ω]
  2000
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• Integrated watchdog
  yes
• Switching frequency DC [Hz]
  < 170
• Media
  liquids and gases
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Permanent current rating of switching output DC [mA]
  250
• Short-circuit protection
  yes
• System
  gold-plated contacts
Current consumption [mA]
< 50
Output function
normally open / closed; (configurable)
Type of pressure
relative pressure
Power-on delay time [s]
0.3
Analog current output [mA]
4...20
Measuring range
0...2.5 bar 0...2500 mbar 0...36.3 psi 0...250 kPa
Reverse polarity protection
yes
Number of analog outputs
1
Medium temperature [°C]
-20...60
Overvoltage protection
yes; (< 40 V)
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
