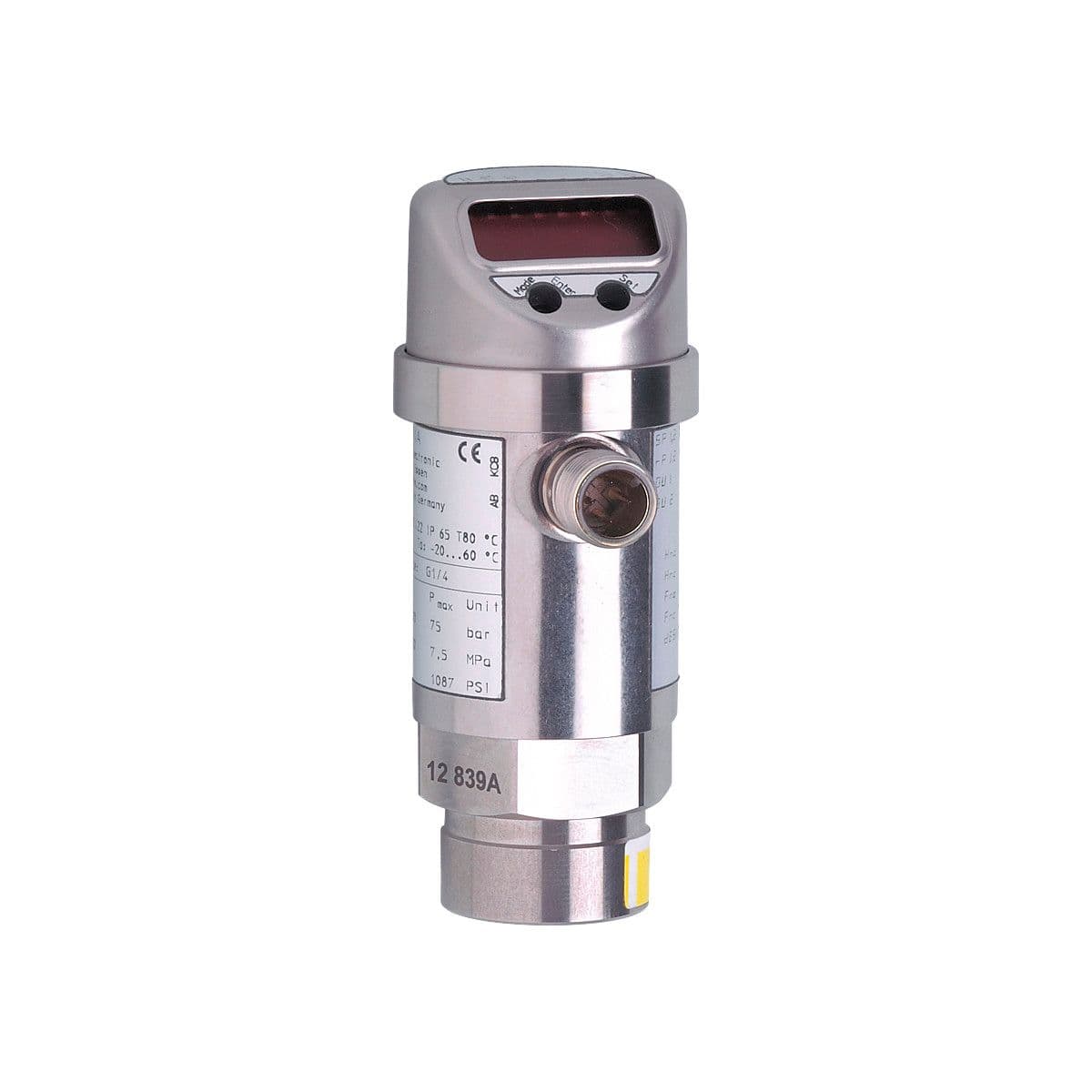

PN009A ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -20...60
• Number of analog outputs
  1
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Current consumption [mA]
  < 50
• Number of digital outputs
  1
• Min. load resistance [Ω]
  2000
• Switching frequency DC [Hz]
  < 170
• Analog voltage output [V]
  0...10
• System
  gold-plated contacts
• Protection class
  III
• Process connection
  threaded connection G 1/4 Internal thread
• Reverse polarity protection
  yes
• Permanent current rating of switching output DC [mA]
  250
• Measuring range
  -1...0 bar -1000...0 mbar
• Pressure rating [mbar]
  10000
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Analog current output [mA]
  4...20
• Short-circuit protection
  yes
• Application
  for industrial applications
• Type of pressure
  relative pressure; vacuum
Total number of outputs
2
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Min. bursting pressure [mbar]
30000
Overvoltage protection
yes; (< 40 V)
Power-on delay time [s]
0.3
Electrical design
PNP
Output signal
switching signal; analog signal; (configurable)
Output function
normally open / closed; (configurable)
Max. load [Ω]
500
Media
liquids and gases
Integrated watchdog
yes
