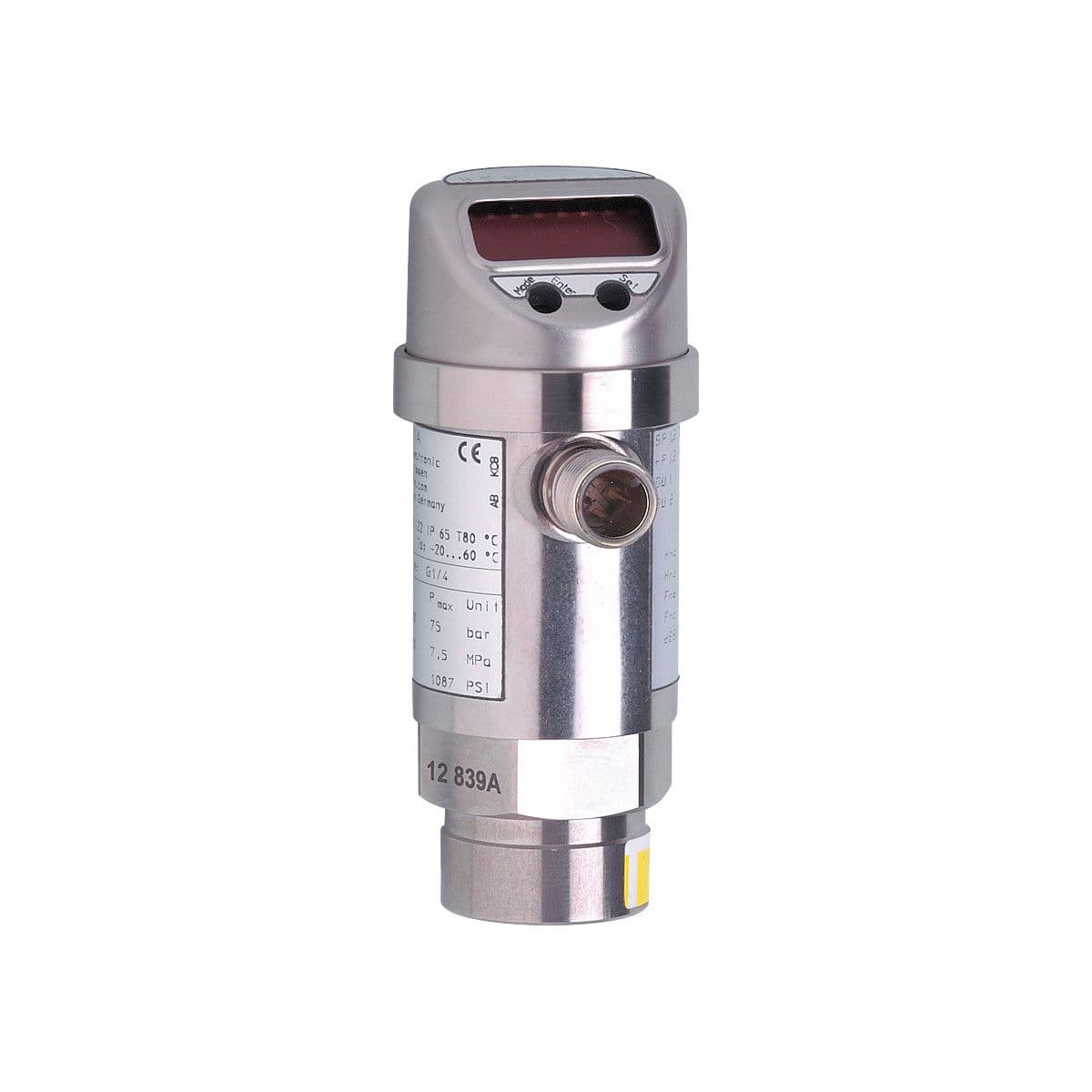

PN007A ifm Electronic Electronic Components

Product Details

• Protection class
  III
• Number of digital outputs
  1
• Short-circuit protection
  yes
• Min. bursting pressure [mbar]
  30000
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Number of analog outputs
  1
• Application
  for industrial applications
• Analog voltage output [V]
  0...10
• System
  gold-plated contacts
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Max. voltage drop switching output DC [V]
  2
• Overvoltage protection
  yes; (< 40 V)
• Electrical design
  PNP
• Max. load [Ω]
  500
• Measuring range
  0...1 bar 0...1000 mbar
• Pressure rating [mbar]
  10000
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; (configurable)
• Power-on delay time [s]
  0.3
Output function
normally open / closed; (configurable)
Min. load resistance [Ω]
2000
Medium temperature [°C]
-20...60
Current consumption [mA]
< 50
Reverse polarity protection
yes
Analog current output [mA]
4...20
Process connection
threaded connection G 1/4 Internal thread
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Type of short-circuit protection
yes (non-latching)
Media
liquids and gases
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
< 170
