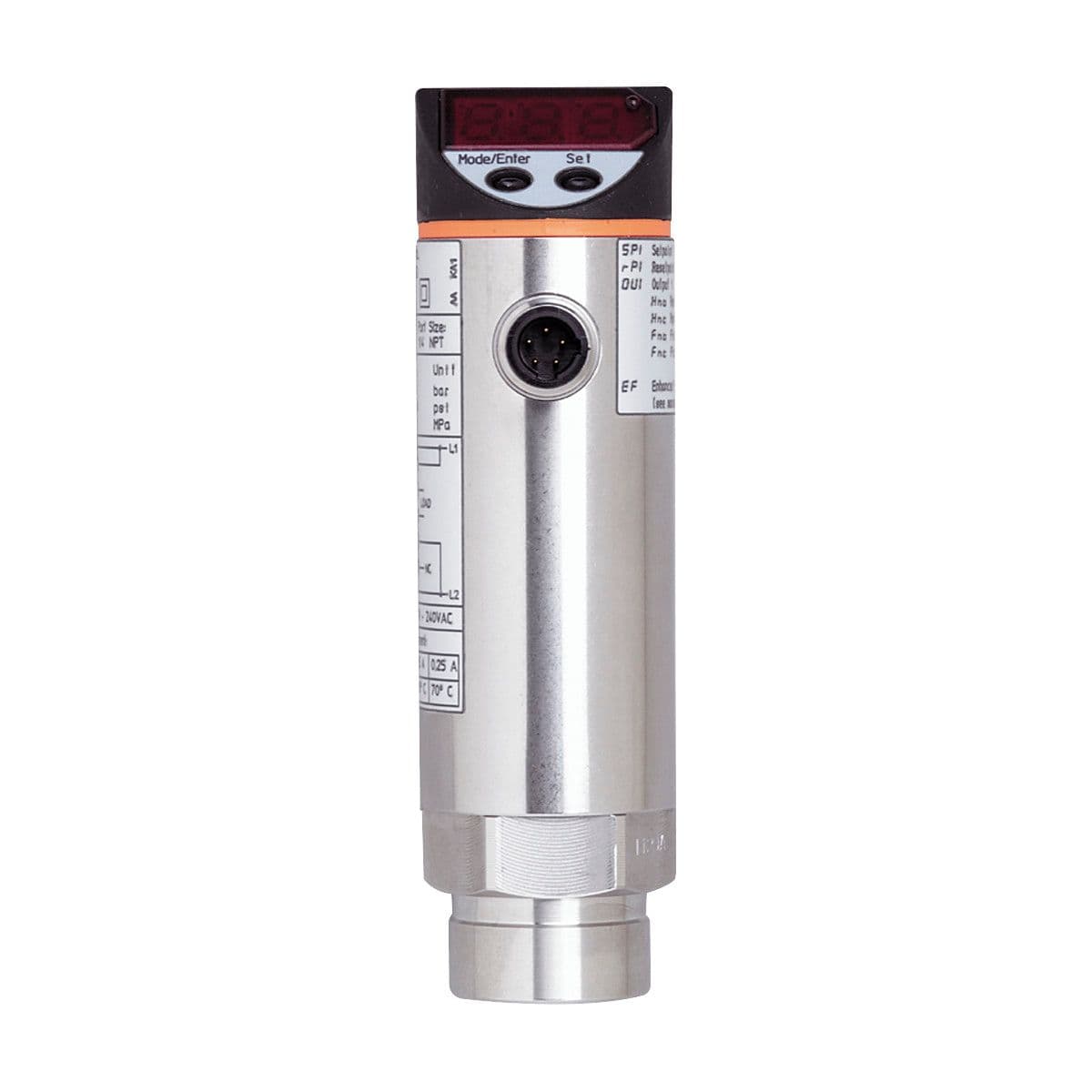

PN4222 ifm Electronic Electronic Components

Product Details

• Process connection
  threaded connection 1/4" NPT Internal thread
• Type of pressure
  relative pressure
• Number of digital outputs
  1
• Output signal
  switching signal
• Media
  liquids and gases
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Power-on delay time [s]
  0.2
• Total number of outputs
  1
• Application
  for industrial applications
• Nominal voltage AC [V]
  < 250
• Number of inputs and outputs
  Number of digital outputs: 1
• Overload protection
  no
• Conditionally suitable for
  use in gases at pressures > 25 bar only on request
• Operating voltage [V]
  85...265 AC
• Electrical design
  Triac
• Short-circuit proof
  no
• Permanent current rating of switching output AC [mA]
  250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C))
• Min. bursting pressure
  650 bar 9400 psi 65 MPa
• Reverse polarity protection
  no
Measuring range
0...100 bar 0...1450 psi 0...10 MPa
Operating voltage tolerance [%]
5...10
Integrated watchdog
yes
Switching frequency AC [Hz]
< 160
Medium temperature [°C]
-25...80
Protection class
II
Output function
normally open / closed; (configurable)
Current consumption [mA]
< 10
Max. voltage drop switching output AC [V]
2
