PN4224 ifm Electronic Electronic Components
Part#:PN4224
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

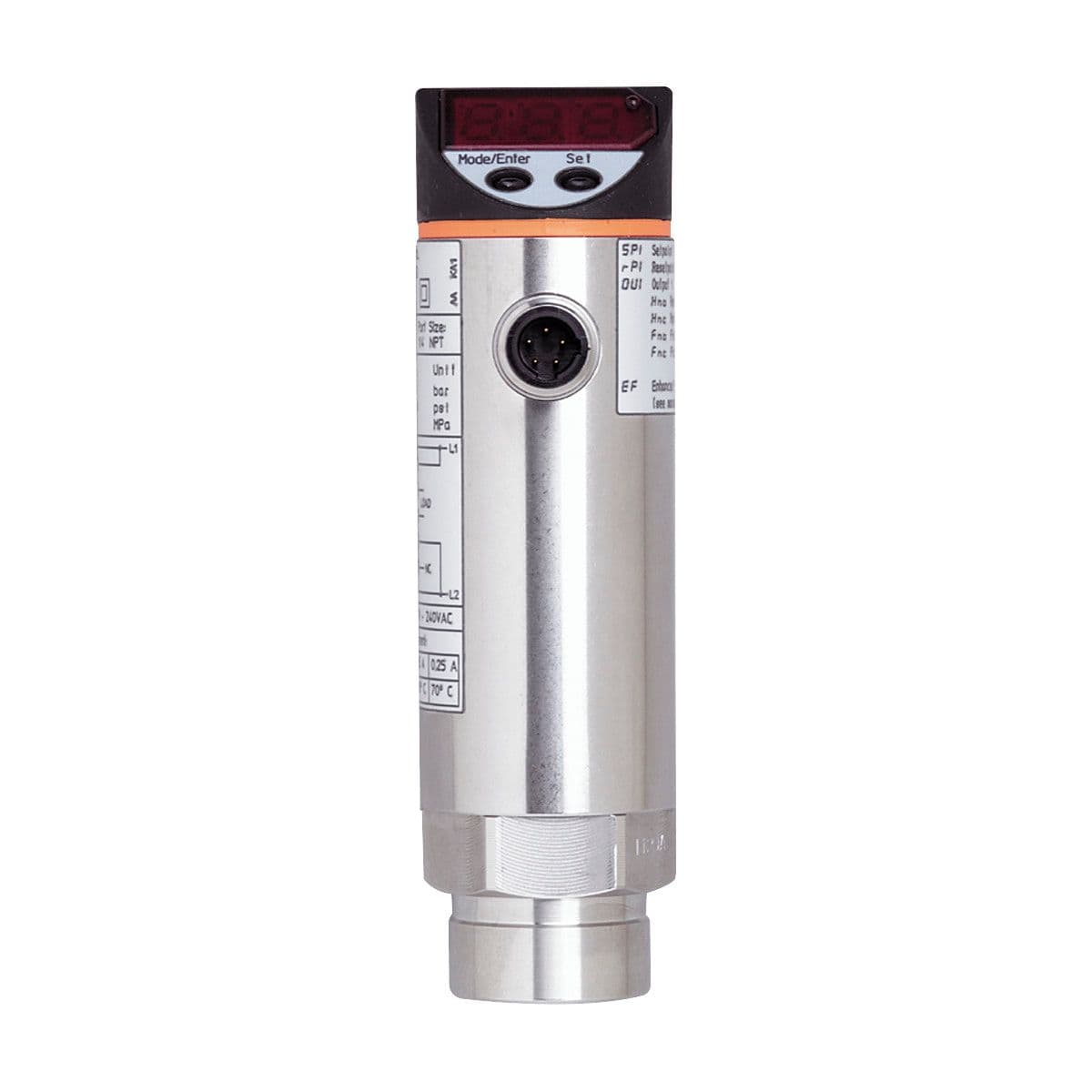

Pressure sensor with display, Potential-free Triac output for currents up to 2.5 A, Output signal: switching signal, Measuring range: 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa, Process connection: threaded connection 1/4" NPT Internal thread, Applicat
Product Details
- Application for industrial applications
- Integrated watchdog yes
- Number of digital outputs 1
- Overload protection no
- Min. bursting pressure 150 bar 2175 psi 15000 kPa
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Number of inputs and outputs Number of digital outputs: 1
- Measuring range 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa
- Protection class II
- Pressure rating 75 bar 1088 psi 7500 kPa
- Nominal voltage AC [V] < 250
- Short-circuit proof no
- Media liquids and gases
- Medium temperature [°C] -25...80
- Type of pressure relative pressure
- Operating voltage tolerance [%] 5...10
- Operating voltage [V] 85...265 AC
- Current consumption [mA] < 10
- Reverse polarity protection no
- Power-on delay time [s] 0.2
- Total number of outputs 1
- Electrical design Triac
- Permanent current rating of switching output AC [mA] 250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C))
- Max. voltage drop switching output AC [V] 2
- Output function normally open / closed; (configurable)
- Process connection threaded connection 1/4" NPT Internal thread
- Output signal switching signal
- Switching frequency AC [Hz] < 160
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
